Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

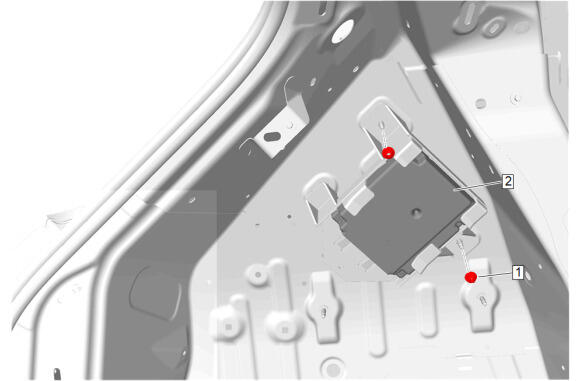

Active Safety Control Module (1) @ Active Safety Control Module Bracket (2) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Install the active safety control module and bracket assembly (2) to the vehicle.
Active Safety Control Module Bracket Nut (1) - Install and tighten [2x] 9 N.m (80 lb in)
Connect the electrical connectors.
Quarter Lower Rear Trim Panel - Install - Quarter Lower Rear Trim Panel Replacement
