Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

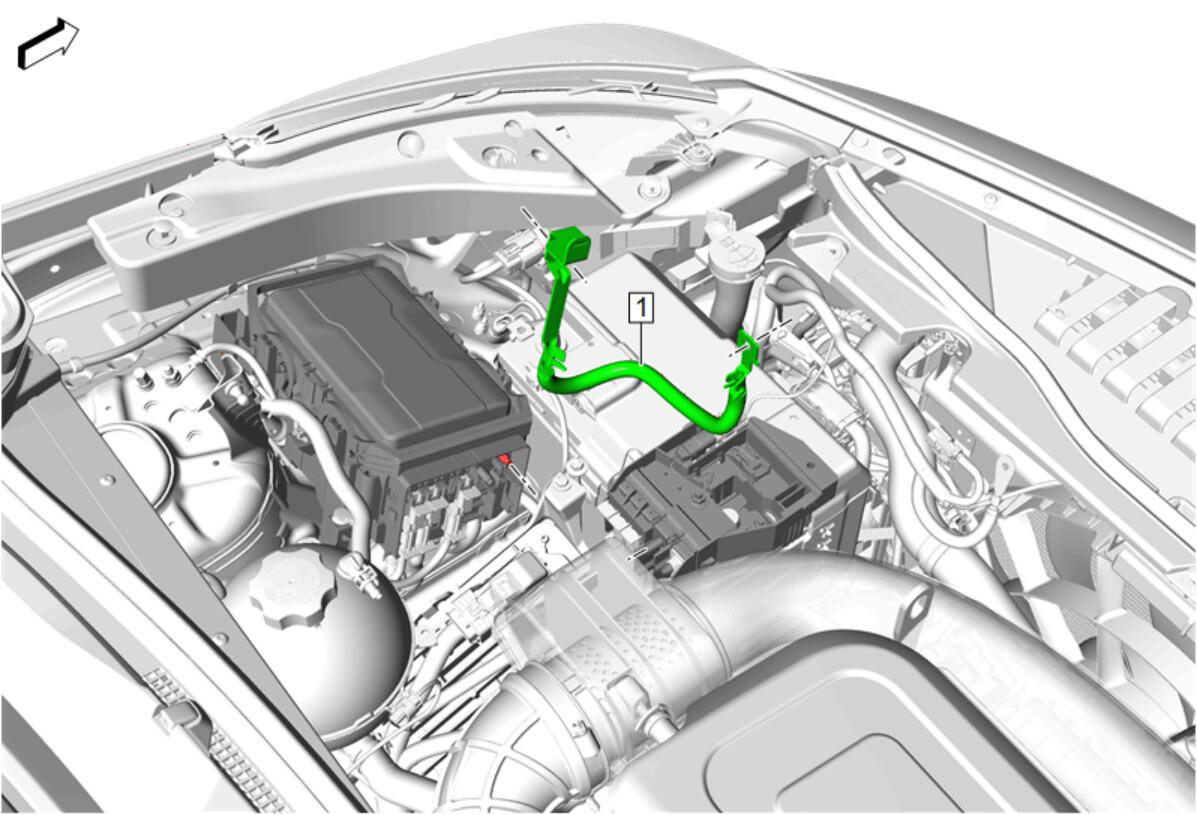

Battery Positive Junction Block Cable (1) - Install
Battery Positive Junction Block Cable Retainer @Battery Tray - Connect
Courtesy of GENERAL MOTORS COMPANY

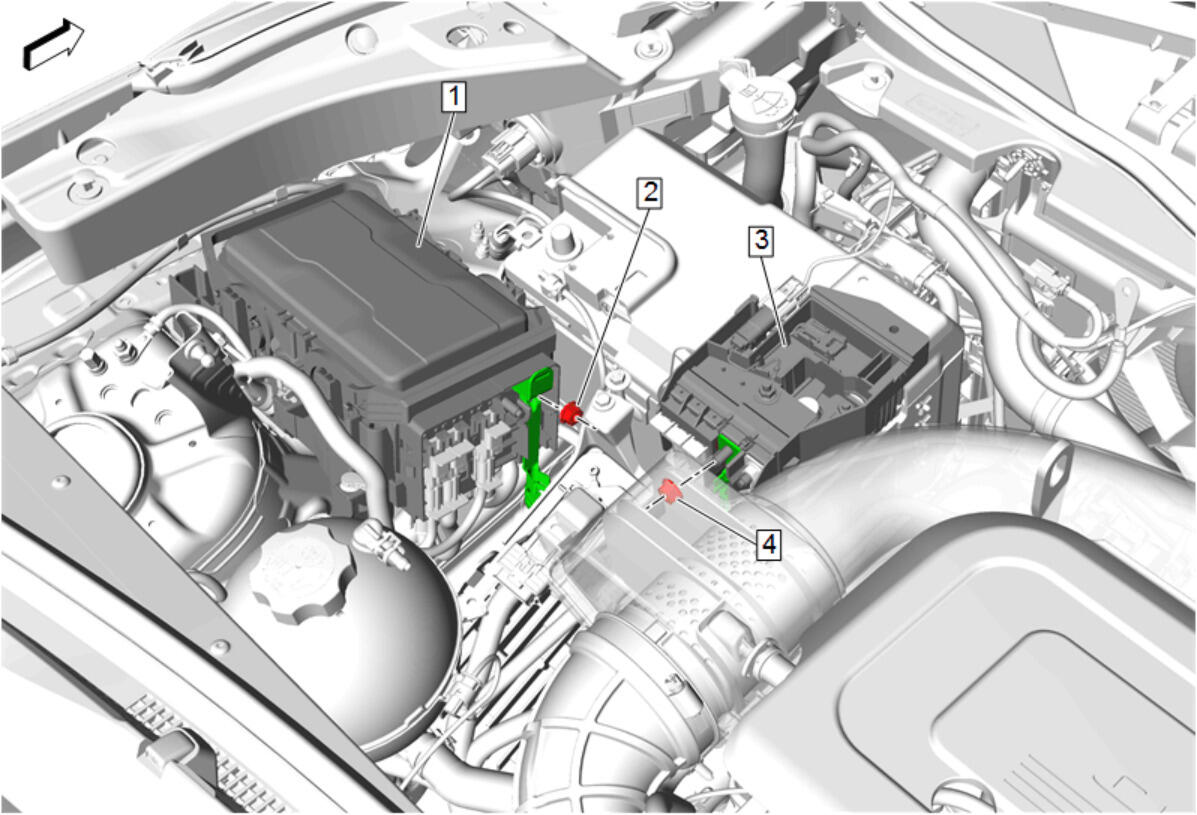

Battery Positive Cable Nut (4) @Battery Distribution Engine Compartment Fuse Block (3) - Install - Battery Distribution Engine Compartment Fuse Block Replacement
Battery Positive Cable Nut (2) @Engine Wiring Harness Junction Block (1) - Install - Engine Wiring Harness Junction Block Replacement
Courtesy of GENERAL MOTORS COMPANY

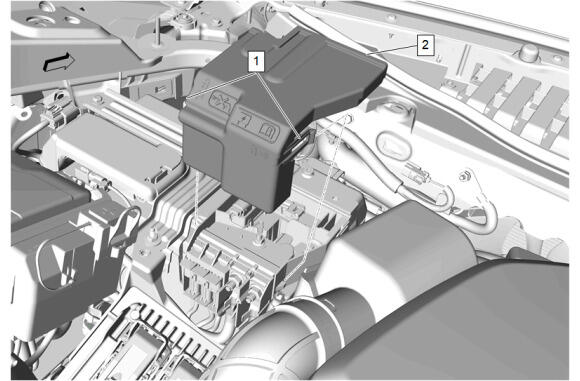

Front Compartment Fuse Block Cover (2) - Install
Retaining Tab (1) @Battery Distribution Engine Compartment Fuse Block - Engage [2x]
Courtesy of GENERAL MOTORS COMPANY

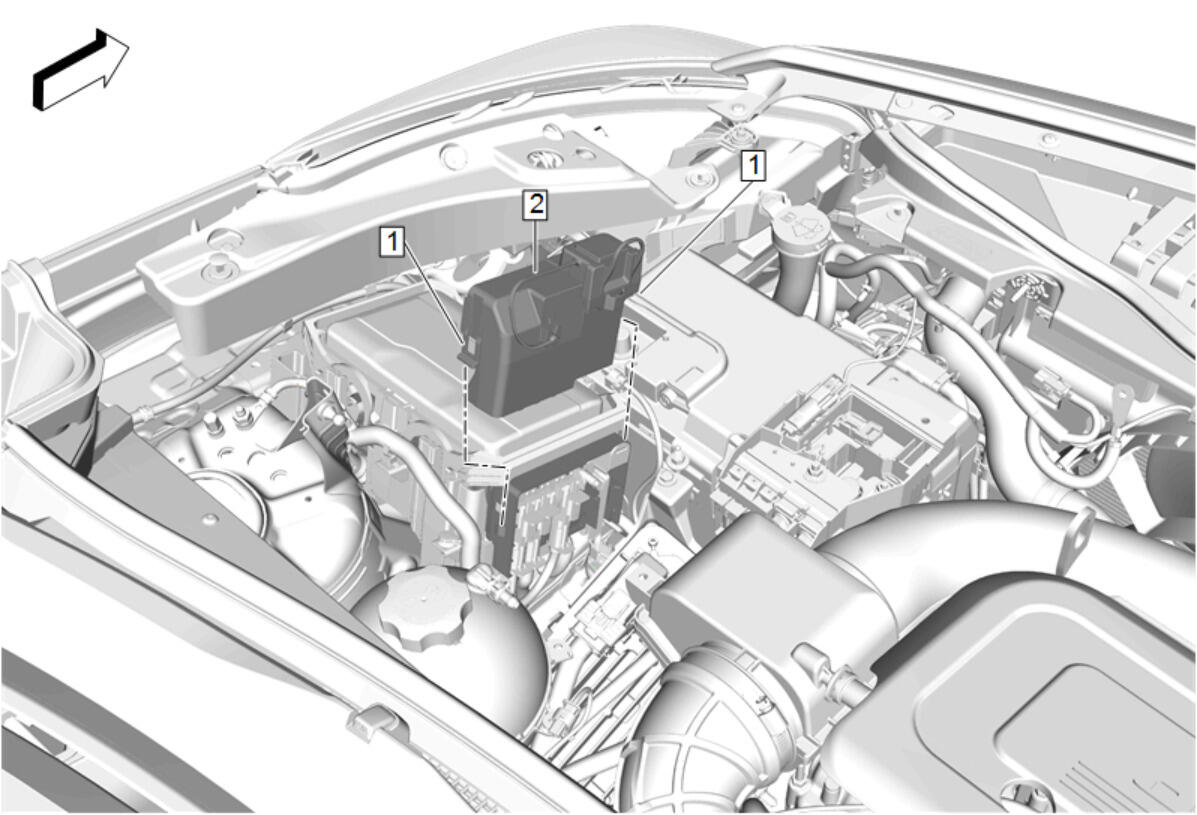

Battery Hold Down Strap (4) - Install - Battery Hold Down Strap Replacement
Courtesy of GENERAL MOTORS COMPANY

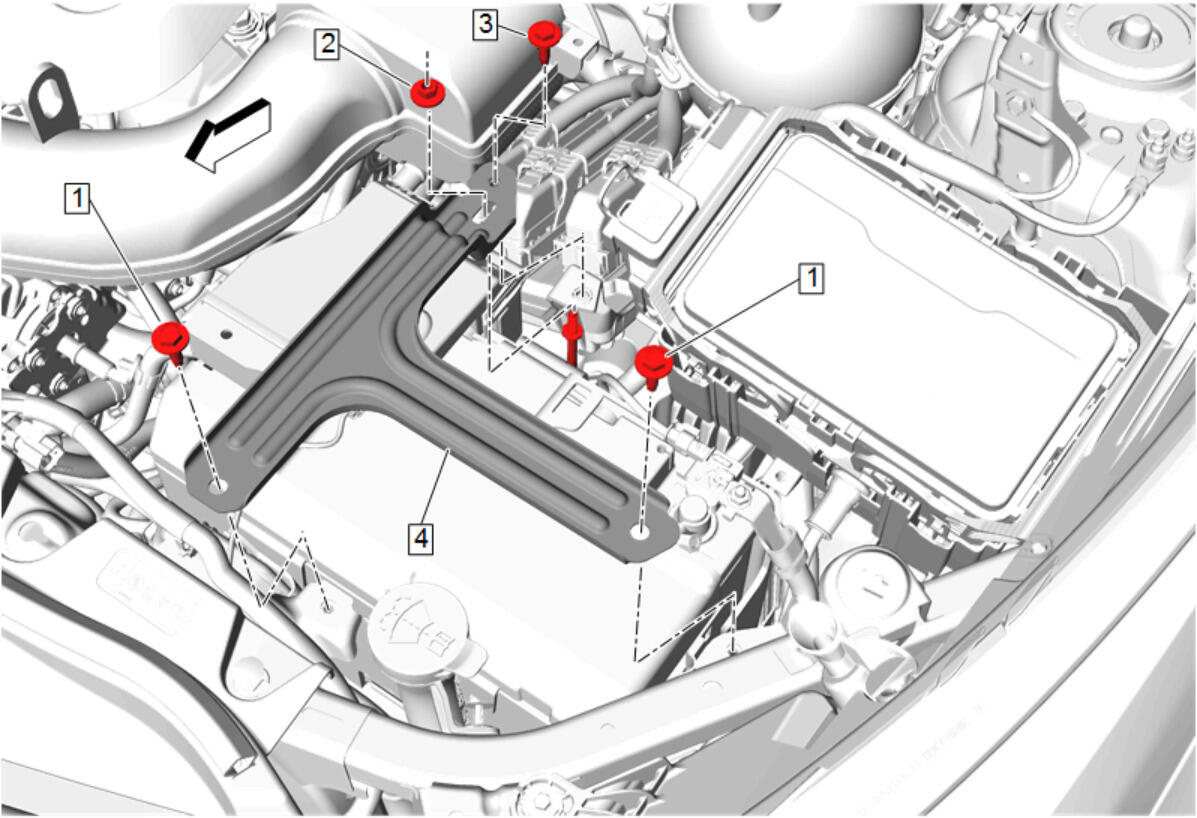

Battery Auxiliary Tray Hold Down Strap (1) - Install - Battery Auxiliary Tray Hold Down Strap Replacement
Courtesy of GENERAL MOTORS COMPANY

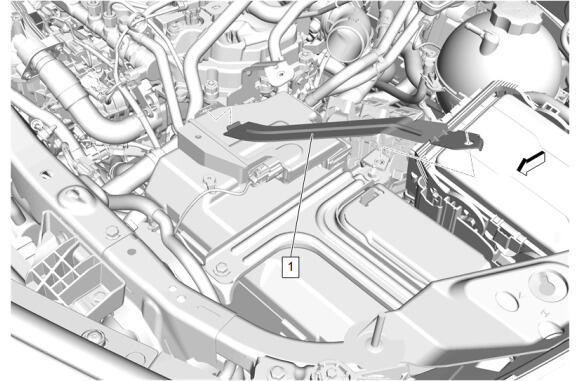

Fuse Block Cover (2) - Install
Retaining Tab (1) - Engage [2x]
Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
