Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Battery (1) - Install
Courtesy of GENERAL MOTORS COMPANY

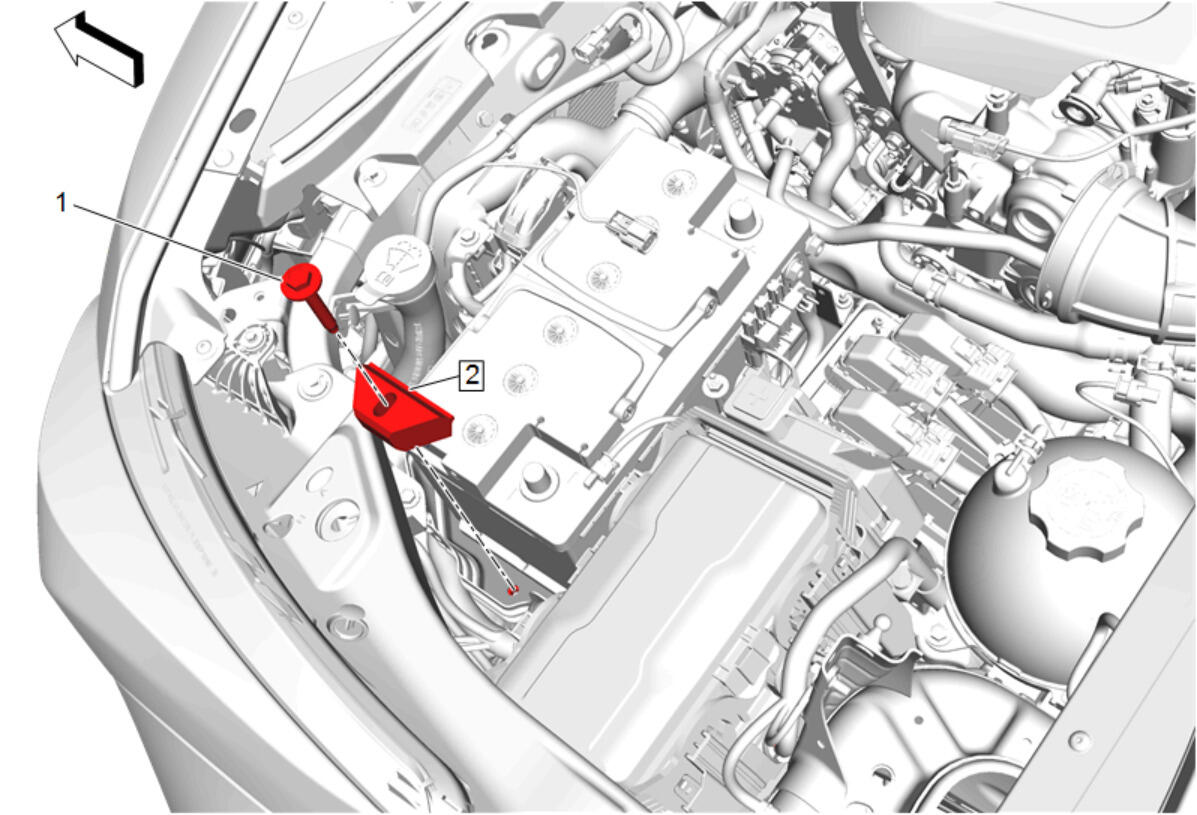

Battery Hold Down Retainer (2) - Install

CAUTION:

Refer to Fastener Caution

Battery Hold Down Retainer Bolt (1) - Install and tighten 22 N.m (16 lb ft)
Courtesy of GENERAL MOTORS COMPANY

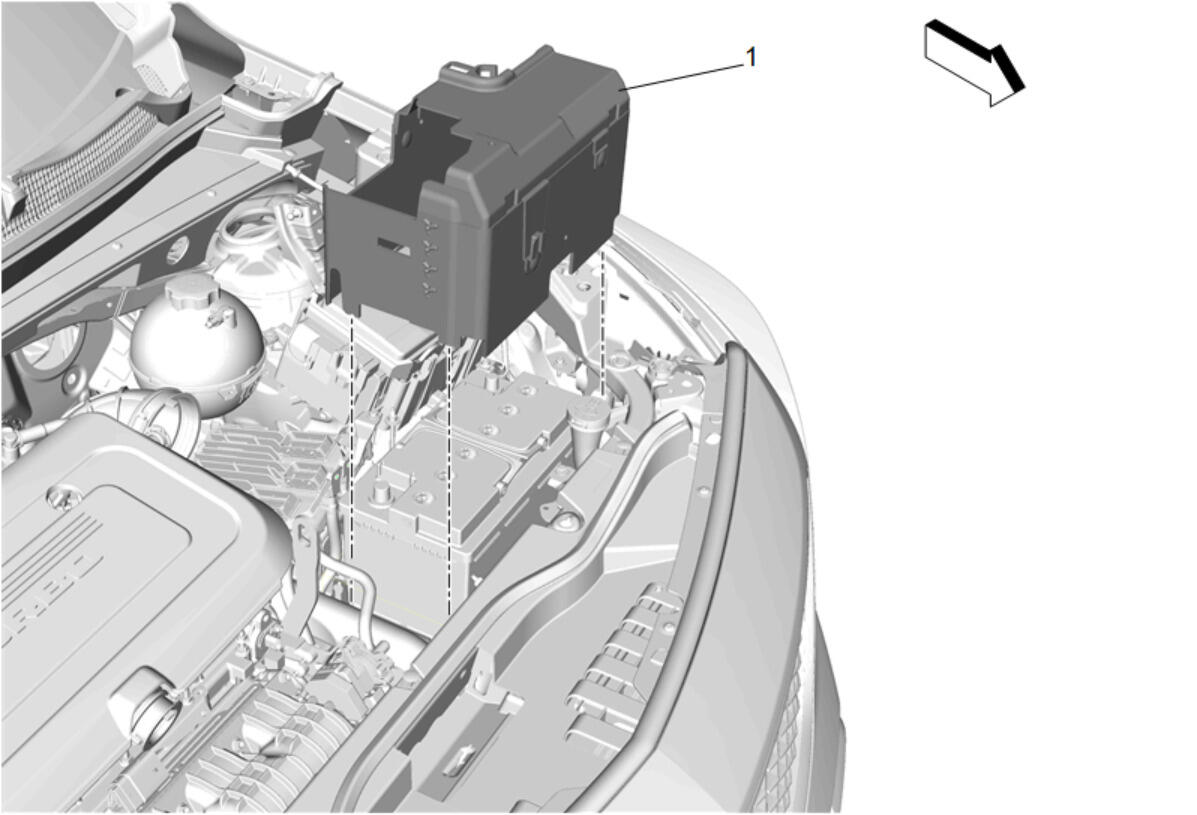

Battery Upper Cover (1) - Install - Battery Upper Cover Replacement
Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
