Installation Procedure

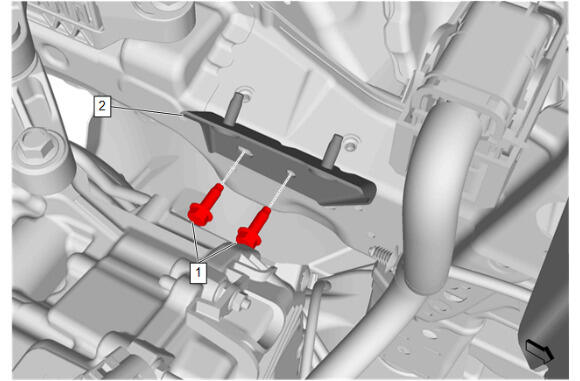

  1. GM6367274Courtesy of GENERAL MOTORS COMPANY

    Battery Tray Support (2) - Install

    2. CAUTION:

    Refer to Fastener Caution

  2. Battery Tray Support Bolt (1) - Install and tighten [2x] 22 N.m (16 lb ft)

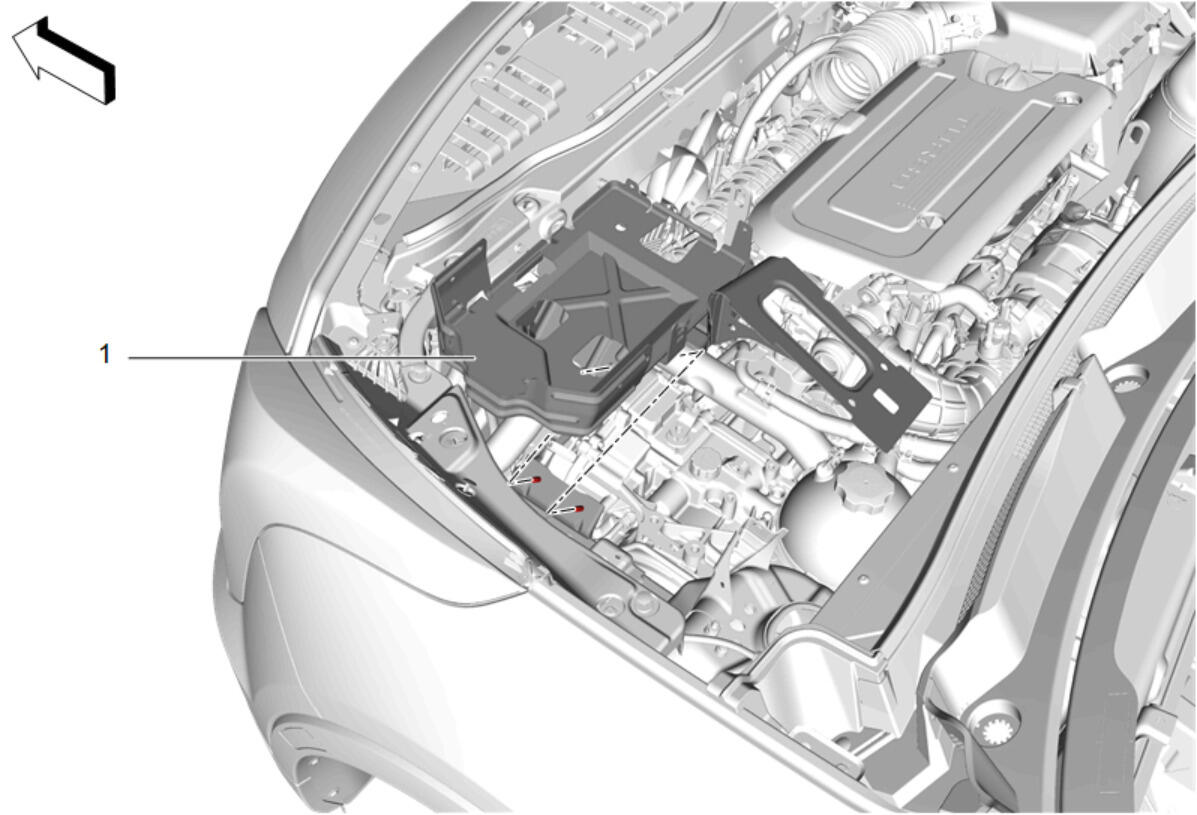

  3. GM5055925Courtesy of GENERAL MOTORS COMPANY

    Battery Tray (1) - Install - Battery Tray Replacement

  4. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
