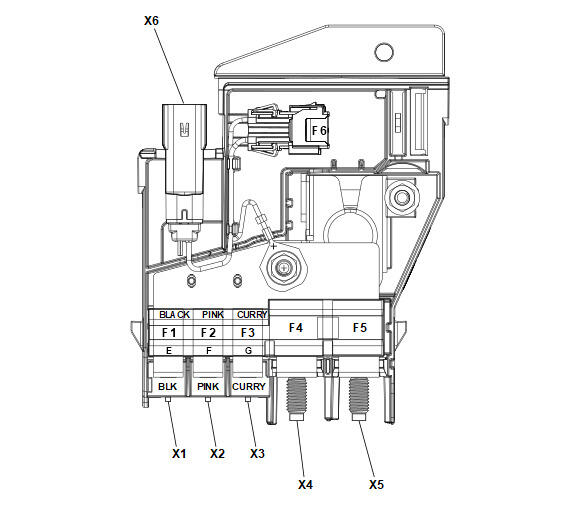

X50B Battery Distribution Engine Compartment Fuse Block Top View

Courtesy of GENERAL MOTORS COMPANY

NOTE: Callout items in the following chart represent components shown in graphic above.

Usage Table

No.	Device Label Name	Device Assigned Name	Rating	Description
Fuses
1	-	F1BA	60A	K160 Brake System Control Module
2	-	F2BA	80A	X51A Instrument Panel Wiring Harness Junction Block
3	-	F3BA	80A	X51A Instrument Panel Wiring Harness Junction Block
4	-	F4BA	350A	X50A Engine Wiring Harness Junction Block
5	-	F5BA	400A	M64 Starter
6	-	F6BA	5A	B110 Battery Monitor Module
