Single Use Fasteners and Components

Courtesy of GENERAL MOTORS COMPANY

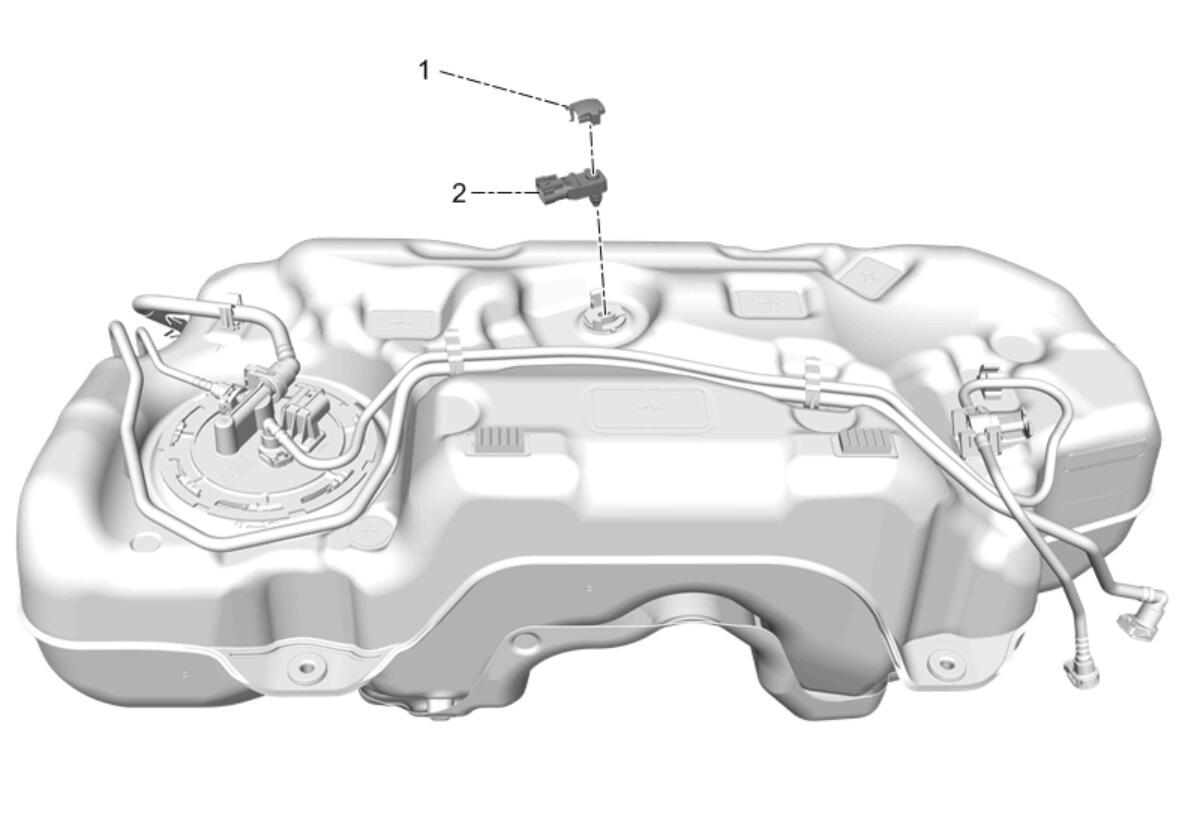

NOTE: Callout items in the following chart represent components shown in graphic above.

Callout	Component Name
WARNING: Refer to Diesel/Gasoline Vapors Warning . WARNING: Refer to Safety Glasses Warning . Preliminary Procedure Fuel Tank Replacement
1	Fuel Tank Pressure Sensor Cover
2	Fuel Tank Pressure Sensor Procedure Disconnect the electrical connector. Clean and inspect O-ring and apply engine oil. Adhesives, Fluids, Lubricants, and Sealers

Callout

Component Name

WARNING:

WARNING:

Preliminary Procedure Fuel Tank Replacement

Fuel Tank Pressure Sensor Cover

Fuel Tank Pressure Sensor

Procedure

Disconnect the electrical connector.
Clean and inspect O-ring and apply engine oil. Adhesives, Fluids, Lubricants, and Sealers
