Installation Procedure

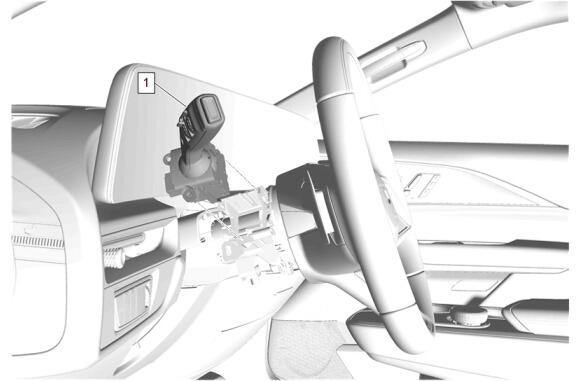

  1. GM5981237Courtesy of GENERAL MOTORS COMPANY

    Turn Signal Switch (1) - Install

  2. Connect the electrical connector.
  3. GM5981235Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution .

    Turn Signal Switch Bolt (1) - Install and tighten [2x] - Fastener Specifications

  4. Instrument Panel Steering Column Lower Trim Cover - Install - Instrument Panel Steering Column Lower Trim Cover Replacement
