Heater Turn-on Switch

Located in the front of the right hand cylinder head the switch senses engine water temperature and does not permit system turn-on until water temperature reaches 120°F.

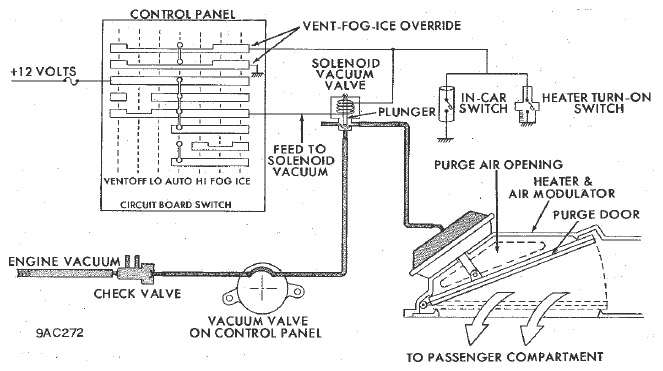

NOTE: This switch may be bypassed by owner control settings. See "Figure".
