Exhaust Back Pressure Modulated EGR System: Notes

Two types of back pressure EGR valves are used by General Motors, either a positive or negative transducer valve. Operation of these two systems is explained as follows:

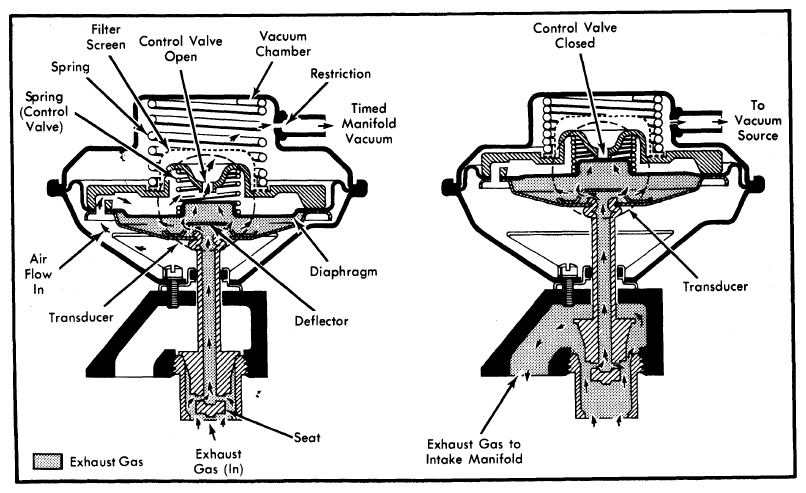

Fig 1: Cutaway View of Positive Back Pressure EGR Valve

Courtesy of GENERAL MOTORS COMPANY
