Ford Motor Co.

Check compressor oil level only if any portion of refrigerant system is being replaced, or if system was discharged due to a leak. Check oil level as follows:

1. After system has been charged, operate for approximately 10 minutes, or until pressures have stabilized (with ambient temperature of 60°F or higher).
2. Loosen oil check plug slowly to relieve any internal compressor pressure. When pressure is relieved, remove plug. Insert appropriate end of suitable dipstick into compressor until it bottoms. If necessary, rotate crankshaft slightly by hand so dipstick will clear crankshaft. Level on dipstick should be within specifications. If necessary, add clean refrigeration oil. Reinstall check plug, ensuring that plug "O" ring is not twisted.
   NOTE: When inserting dipstick into horizontally mounted compressors, angle dipstick so it bottoms on lower wall of crankcase, rather than on boss provided for additional oil check plug.

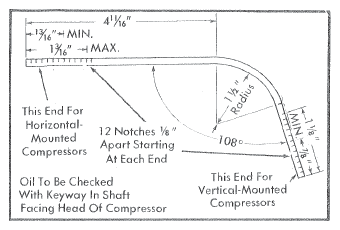

Fig 1: York Compressor Oil Level Dipstick

Courtesy of NOT AVAILABLE

Fig 2: York Compressor Oil Check Point

Courtesy of NOT AVAILABLE
