Design and Clearance Specifications
125c

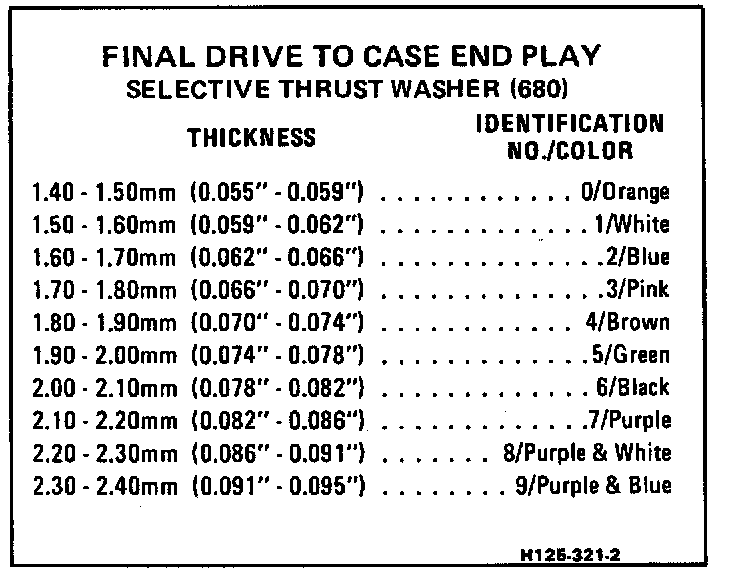

Final Drive Endplay Specifications:

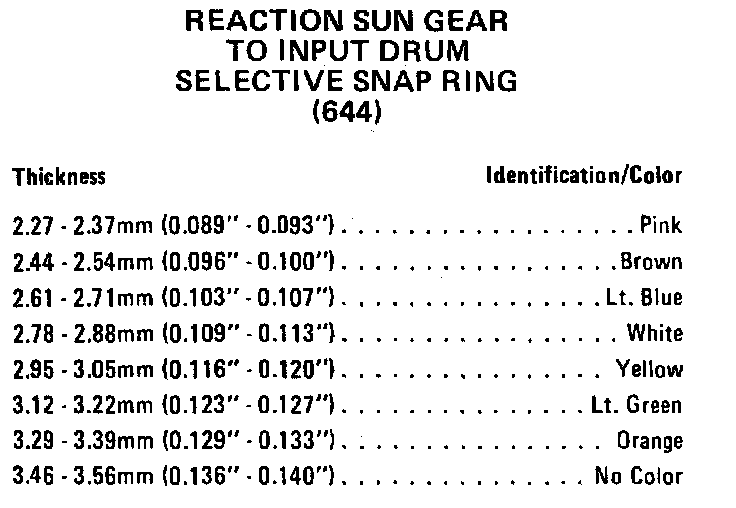

Sun Gear Specifications:

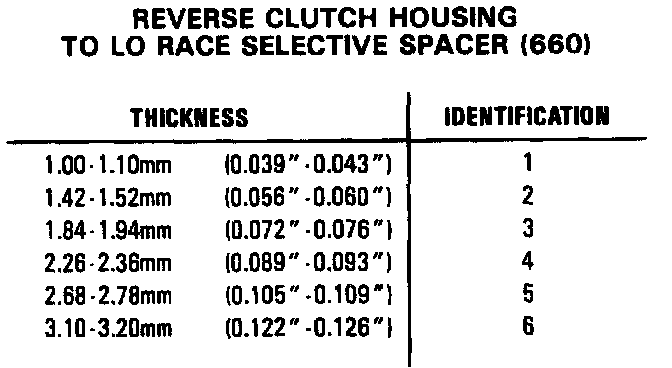

Reverse Clutch Specifications:

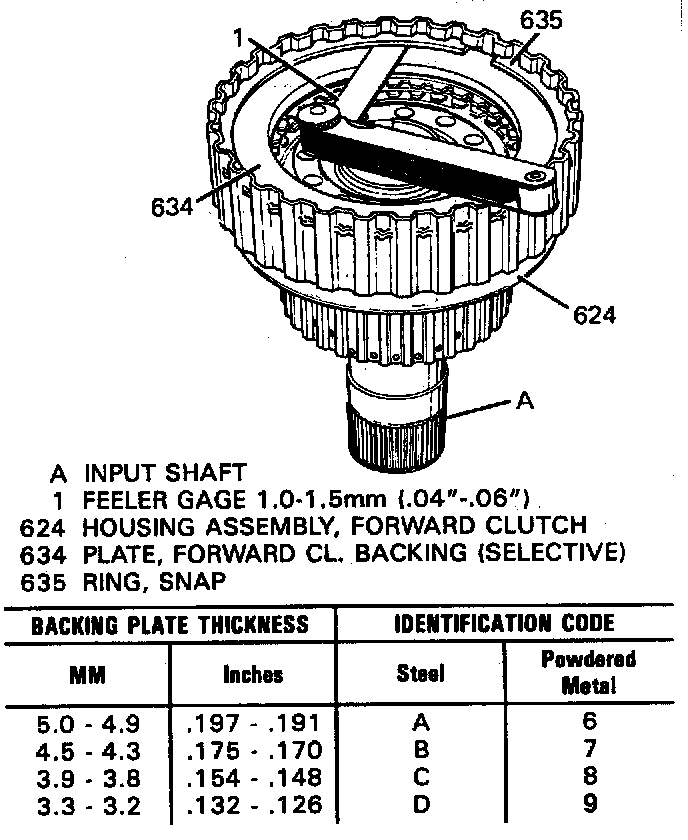

Forward Clutch Backing Plate Specifications:

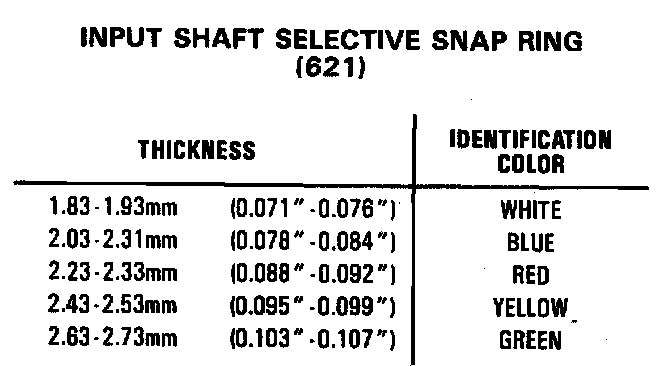

Input Shaft Snap Ring Specifications:

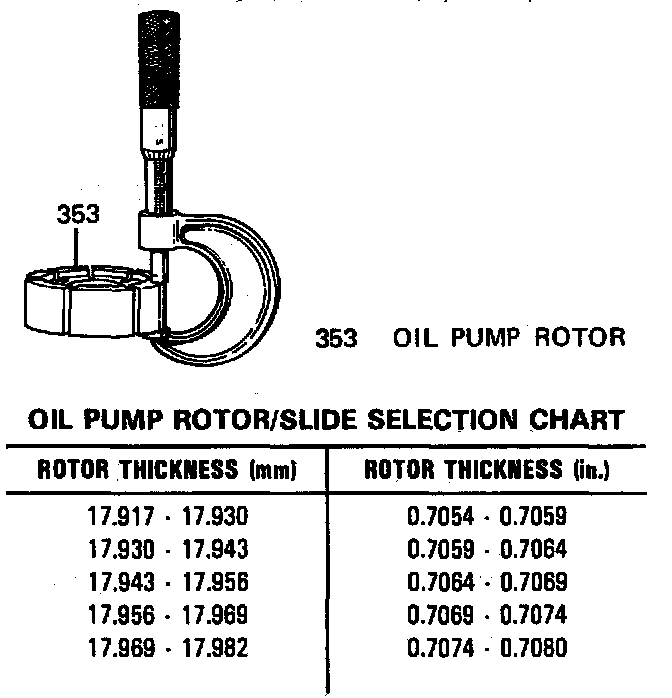

Oil Pump Specifications:

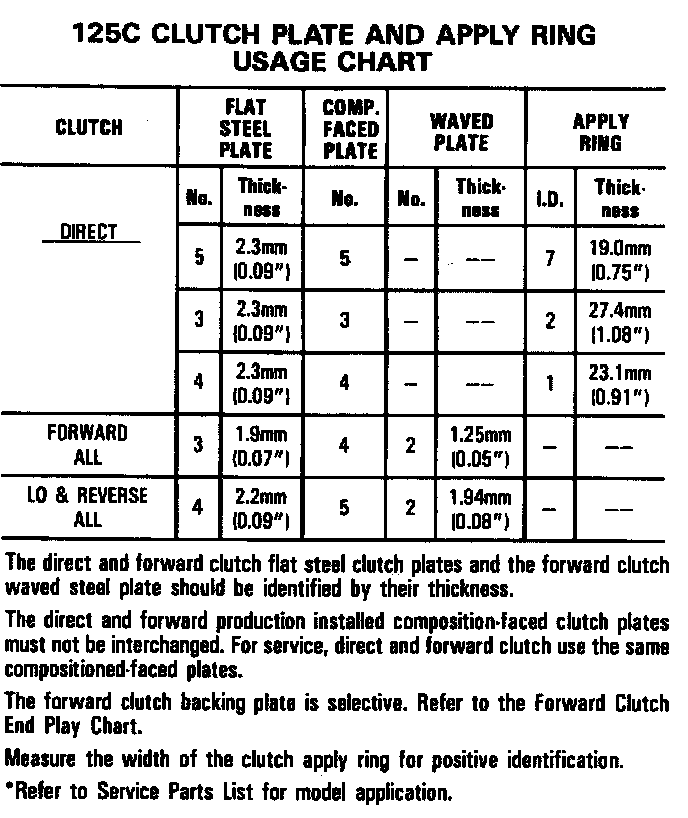

Clutch Plate Usage Chart:
