Trouble Code Charts

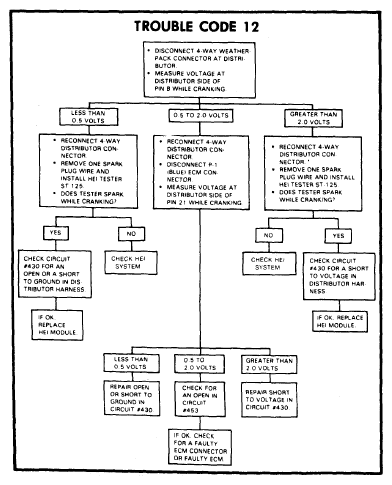

Fig 1: Trouble Code 12
G09340325Courtesy of GENERAL MOTORS COMPANY
Fig 2: Trouble Code 13
G09340326Courtesy of GENERAL MOTORS COMPANY

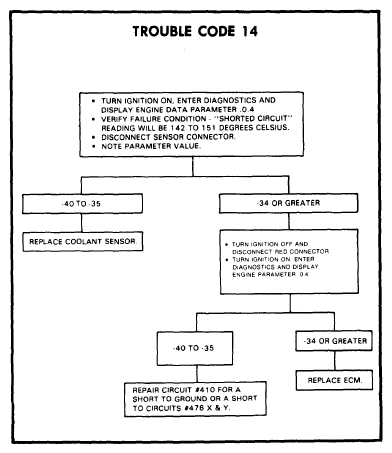

Fig 3: Trouble Code 14
G09340327Courtesy of GENERAL MOTORS COMPANY

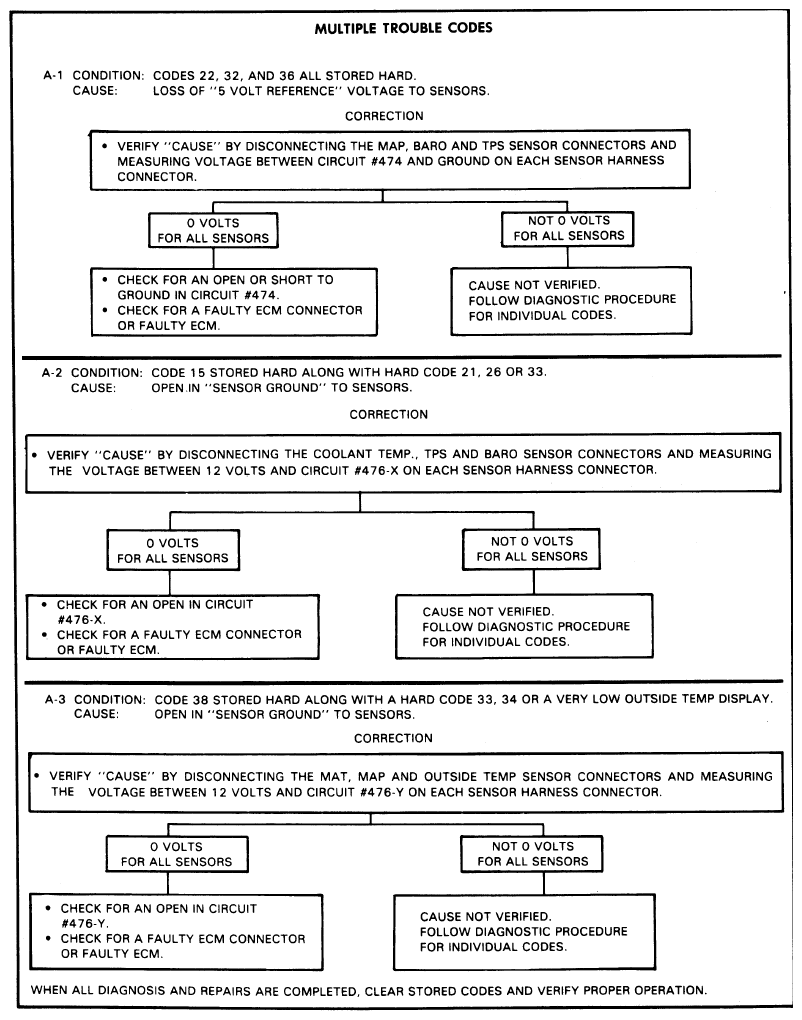

Fig 4: Trouble Codes 15, 21, 22, 26, 32, 33, 34, 36 &38
G09340328Courtesy of GENERAL MOTORS COMPANY

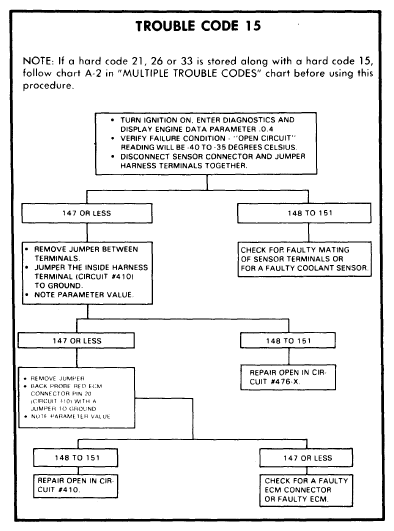

Fig 5: Trouble Code 15
G09340329Courtesy of GENERAL MOTORS COMPANY

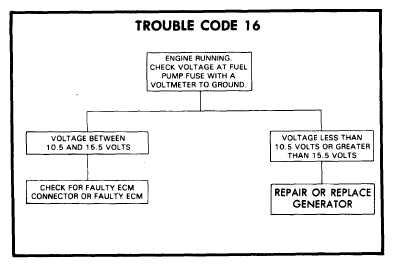

Fig 6: Trouble Code 16
G09340330Courtesy of GENERAL MOTORS COMPANY

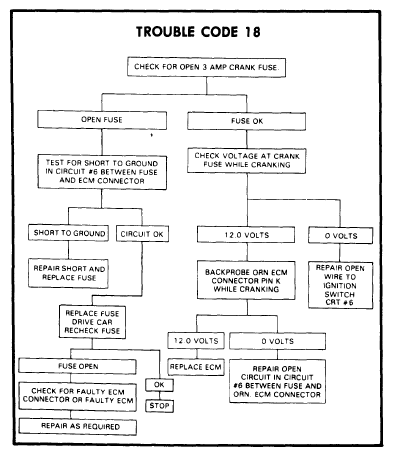

Fig 7: Trouble Code 18
G09340331Courtesy of GENERAL MOTORS COMPANY

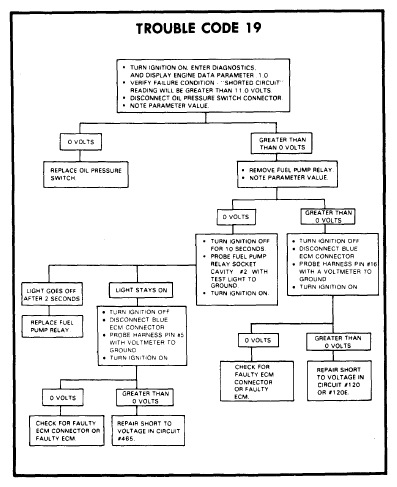

Fig 8: Trouble Code 19
G09340332Courtesy of GENERAL MOTORS COMPANY

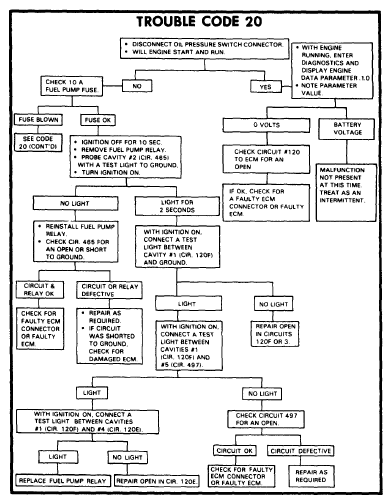

Fig 9: Trouble Code 20
G09340333Courtesy of GENERAL MOTORS COMPANY

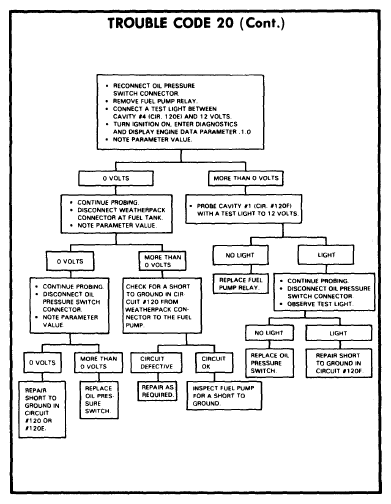

Fig 10: Trouble Code 20 (Cont.)
G09340334Courtesy of GENERAL MOTORS COMPANY

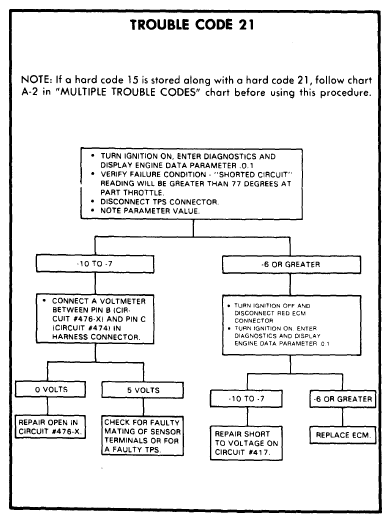

Fig 11: Trouble Code 21
G09340335Courtesy of GENERAL MOTORS COMPANY

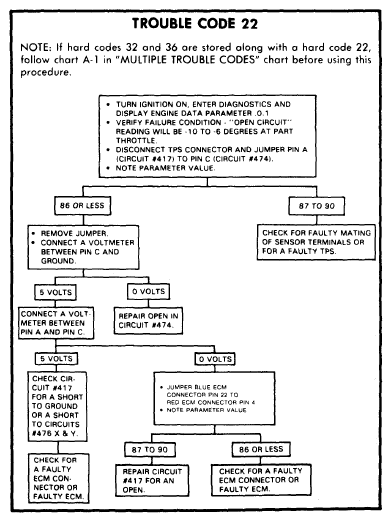

Fig 12: Trouble Code 22
G09340336Courtesy of GENERAL MOTORS COMPANY

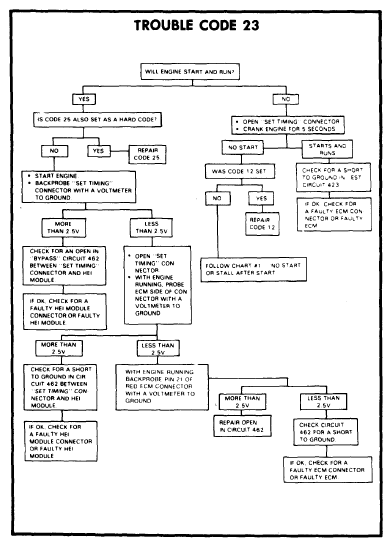

Fig 13: Trouble Code 23
G09340337Courtesy of GENERAL MOTORS COMPANY

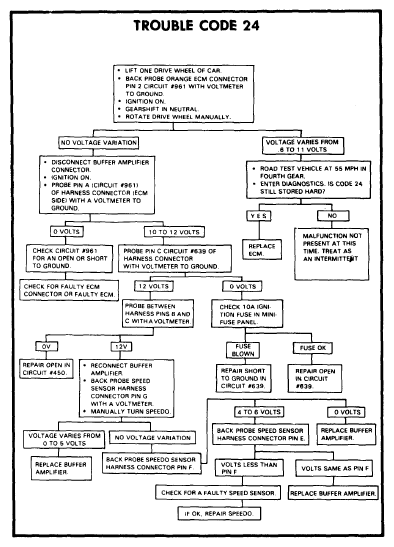

Fig 14: Trouble Code 24
G09340338Courtesy of GENERAL MOTORS COMPANY

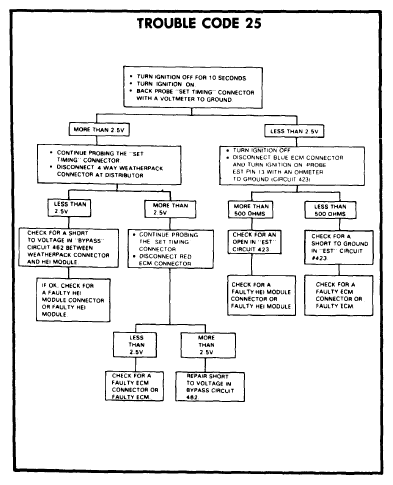

Fig 15: Trouble Code 25
G09340339Courtesy of GENERAL MOTORS COMPANY

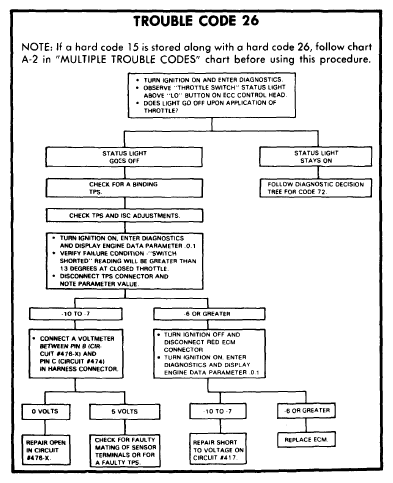

Fig 16: Trouble Code 26
G09340340Courtesy of GENERAL MOTORS COMPANY

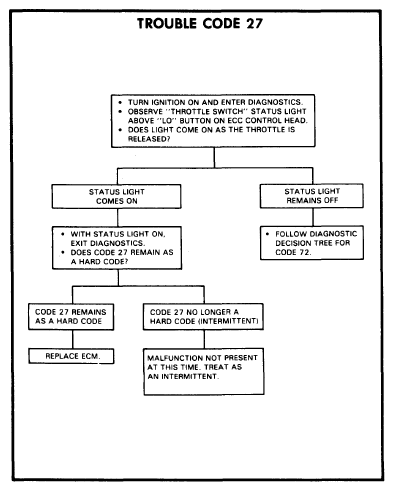

Fig 17: Trouble Code 27
G09340341Courtesy of GENERAL MOTORS COMPANY

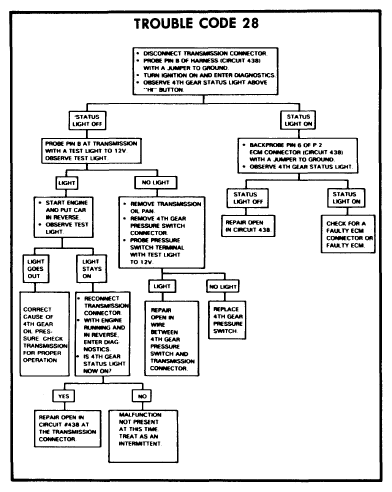

Fig 18: Trouble Code 28
G09340342Courtesy of GENERAL MOTORS COMPANY

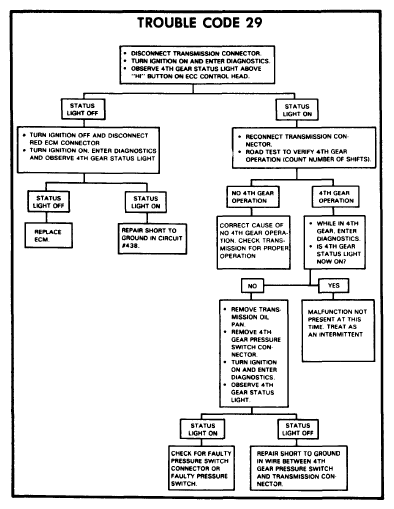

Fig 19: Trouble Code 29
G09340343Courtesy of GENERAL MOTORS COMPANY

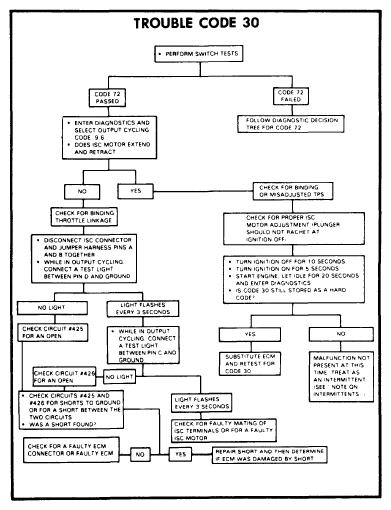

Fig 20: Trouble Code 30
G09340344Courtesy of GENERAL MOTORS COMPANY

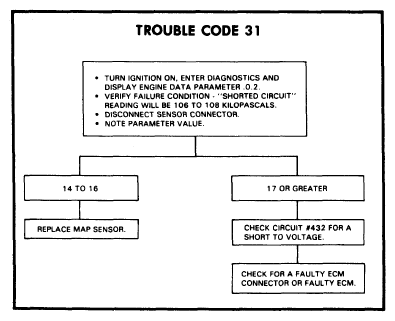

Fig 21: Trouble Code 31
G09340345Courtesy of GENERAL MOTORS COMPANY

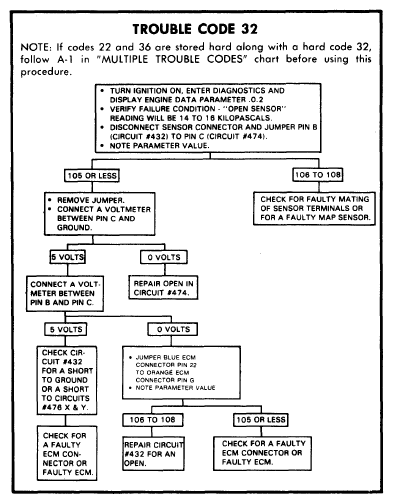

Fig 22: Trouble Code 32
G09340346Courtesy of GENERAL MOTORS COMPANY

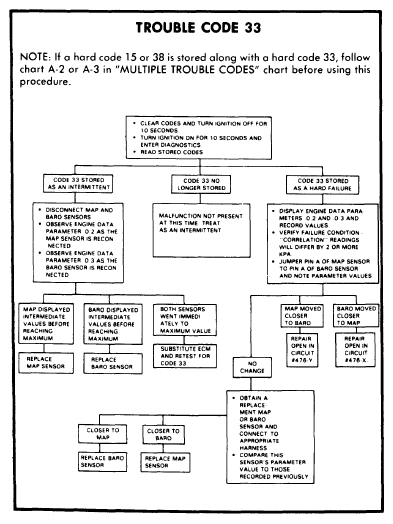

Fig 23: Trouble Code 33
G09340347Courtesy of GENERAL MOTORS COMPANY

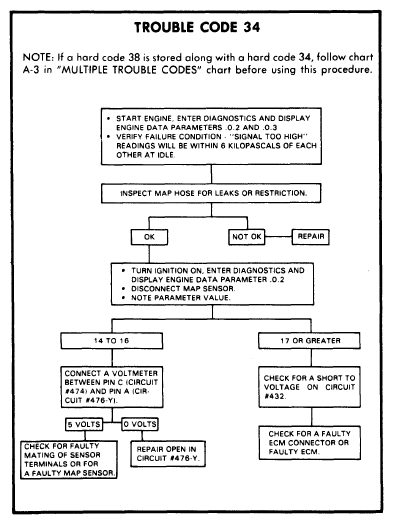

Fig 24: Trouble Code 34
G09340348Courtesy of GENERAL MOTORS COMPANY

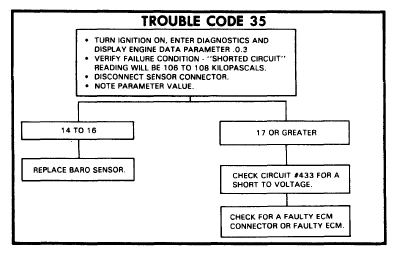

Fig 25: Trouble Code 35
G09340349Courtesy of GENERAL MOTORS COMPANY

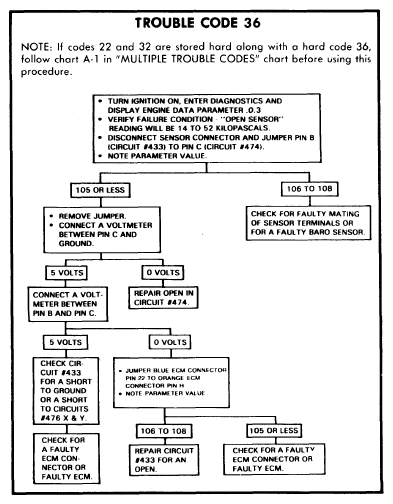

Fig 26: Trouble Code 36
G09340350Courtesy of GENERAL MOTORS COMPANY

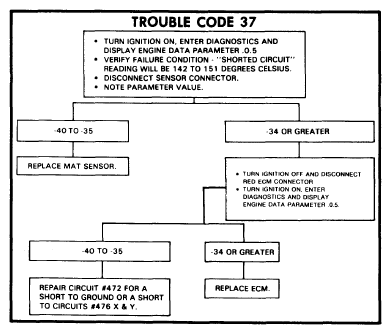

Fig 27: Trouble Code 37
G09340351Courtesy of GENERAL MOTORS COMPANY

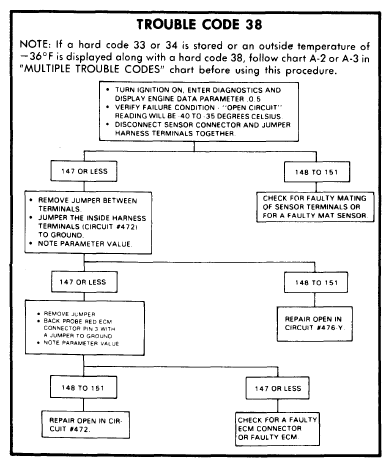

Fig 28: Trouble Code 38
G09340352Courtesy of GENERAL MOTORS COMPANY

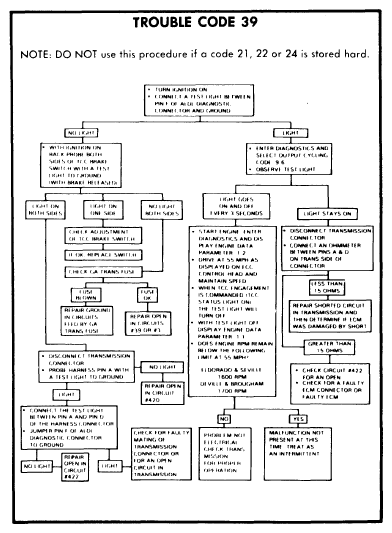

Fig 29: Trouble Code 39
G09340353Courtesy of GENERAL MOTORS COMPANY

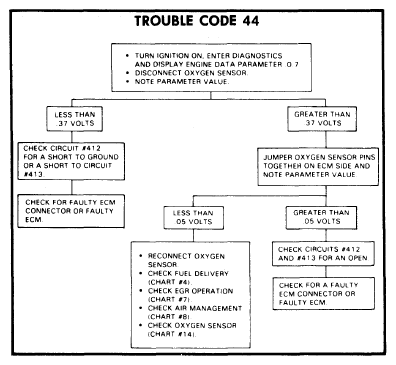

Fig 30: Trouble Code 44
G09340354Courtesy of GENERAL MOTORS COMPANY

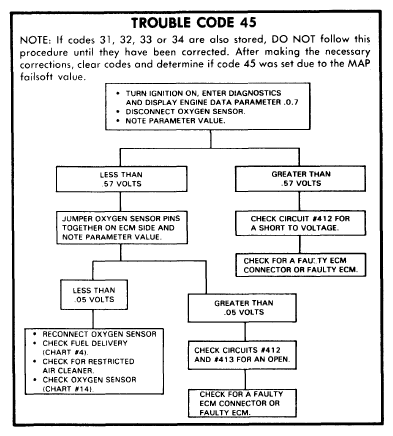

Fig 31: Trouble Code 45
G09340355Courtesy of GENERAL MOTORS COMPANY

TROUBLE CODE 51

Indicates that calibration PROMs are not being read properly by the ECM. Check PROM installation (backwards, bent or missing pins). Replace as needed. If installed properly, turn ignition off for 10 seconds and check for code 51. If code remains, replace PROMs. Repeat procedure and check for code 51 again. If code remains after replacing PROMs, replace ECM.

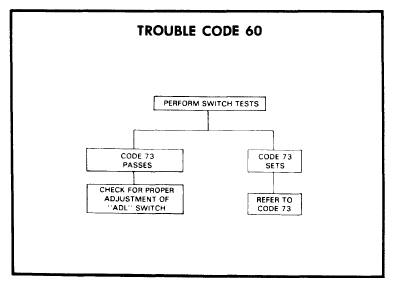

Fig 32: Trouble Code 60
G09340356Courtesy of GENERAL MOTORS COMPANY

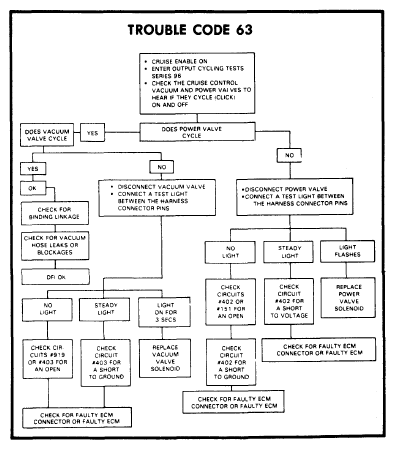

Fig 33: Trouble Code 63
G09340357Courtesy of GENERAL MOTORS COMPANY

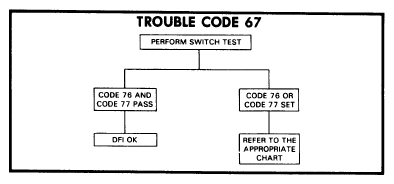

Fig 34: Trouble Code 67
G09340358Courtesy of GENERAL MOTORS COMPANY

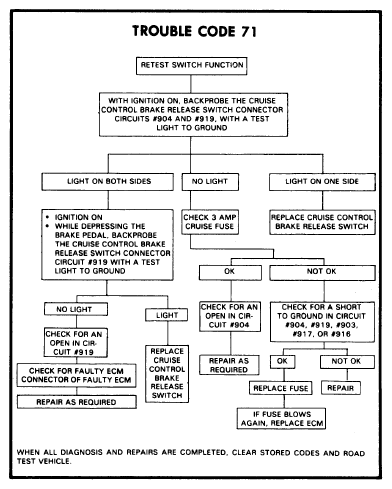

Fig 35: Trouble Code 71
G09340359Courtesy of GENERAL MOTORS COMPANY

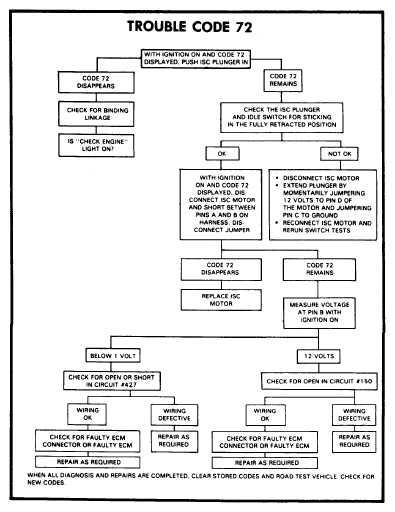

Fig 36: Trouble Code 72
G09340360Courtesy of GENERAL MOTORS COMPANY

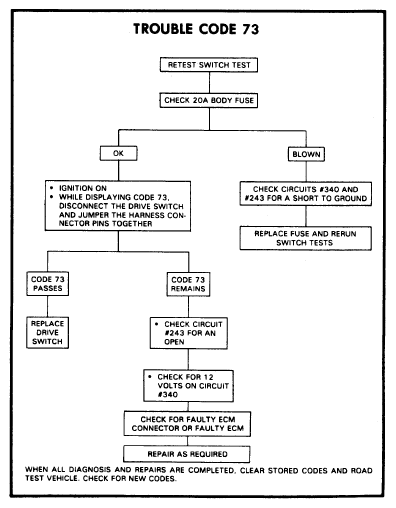

Fig 37: Trouble Code 73
G09340361Courtesy of GENERAL MOTORS COMPANY

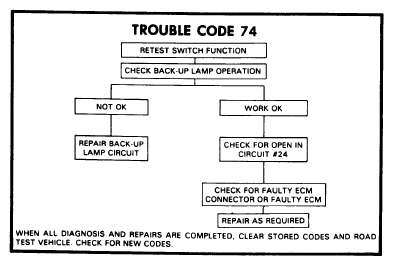

Fig 38: Trouble Code 74
G09340362Courtesy of GENERAL MOTORS COMPANY

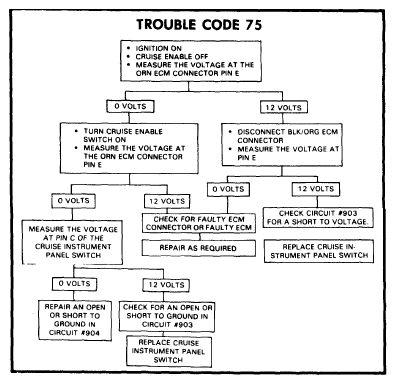

Fig 39: Trouble Code 75
G09340363Courtesy of GENERAL MOTORS COMPANY

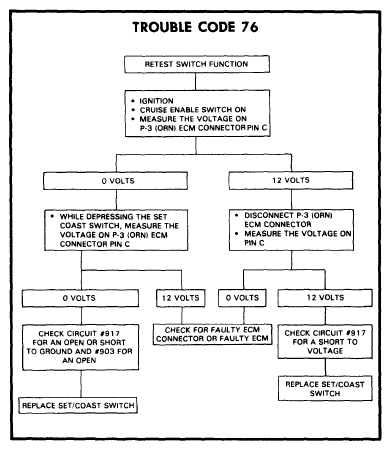

Fig 40: Trouble Code 76
G09340364Courtesy of GENERAL MOTORS COMPANY

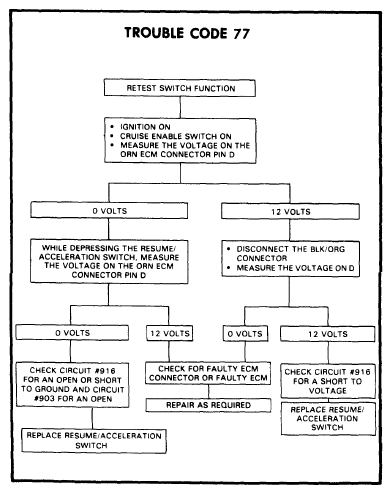

Fig 41: Trouble Code 77
G09340365Courtesy of GENERAL MOTORS COMPANY

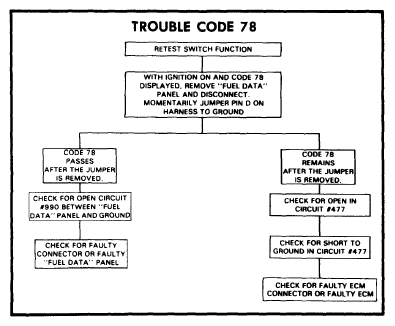

Fig 42: Trouble Code 78
G09340366Courtesy of GENERAL MOTORS COMPANY

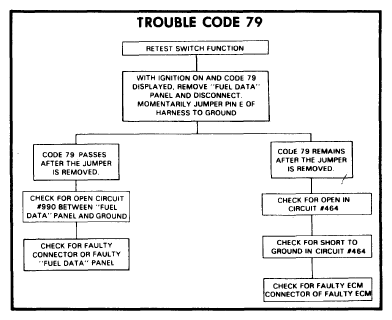

Fig 43: Trouble Code 79
G09340367Courtesy of GENERAL MOTORS COMPANY

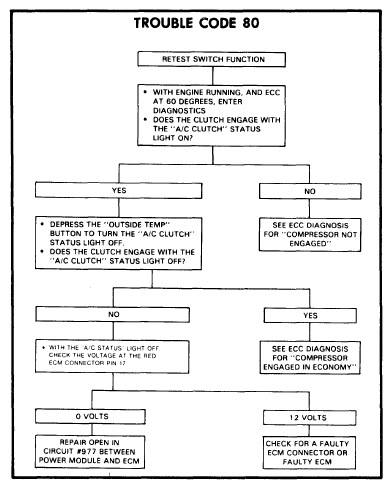

Fig 44: Trouble Code 80
G09340368Courtesy of GENERAL MOTORS COMPANY

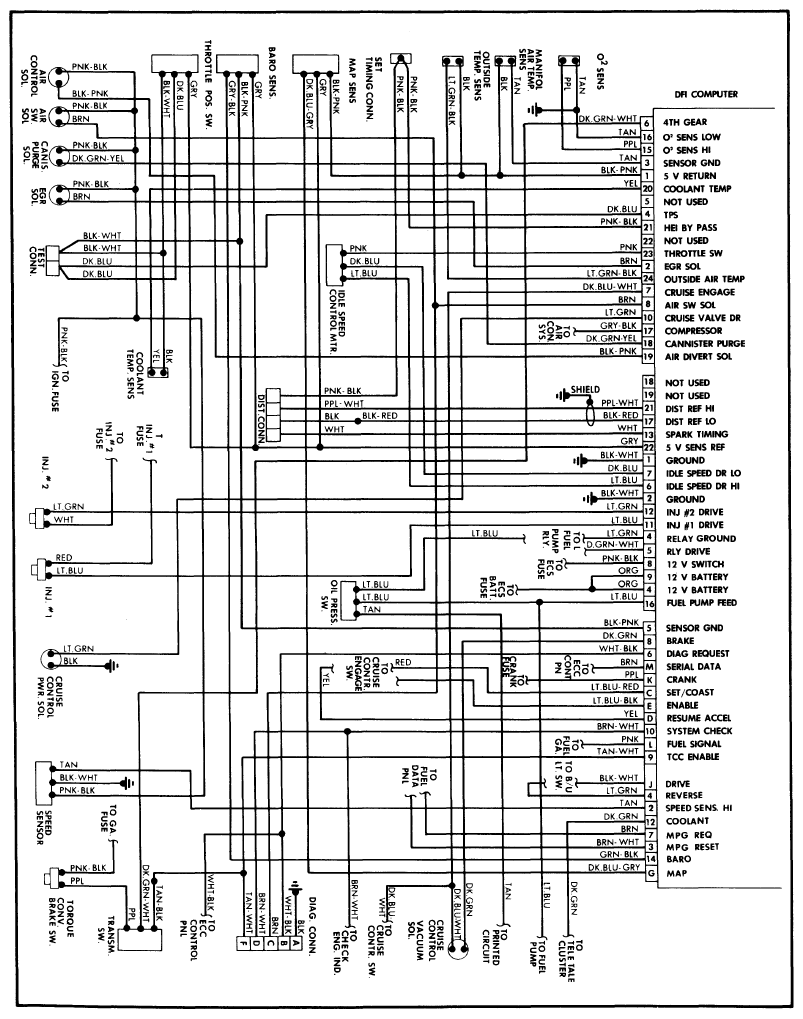

Fig 45: Cadillac DFI Control System Wiring Diagram
G09340369Courtesy of GENERAL MOTORS COMPANY

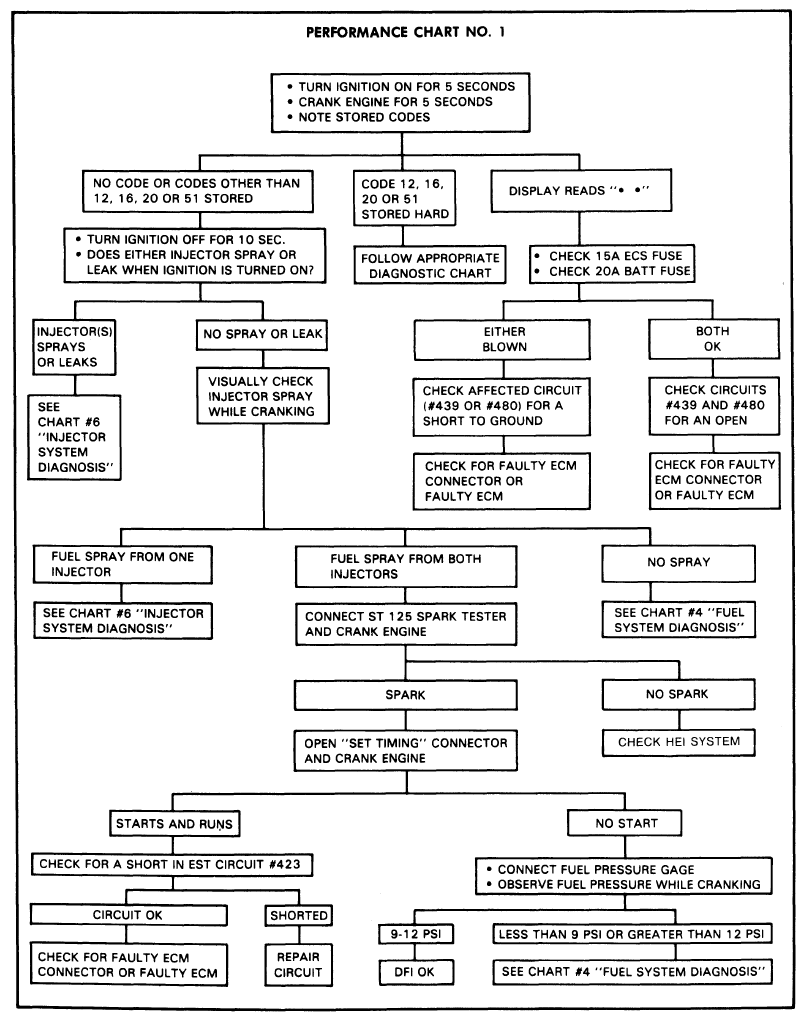

Fig 46: Performance Chart No. 1
G09340370Courtesy of GENERAL MOTORS COMPANY

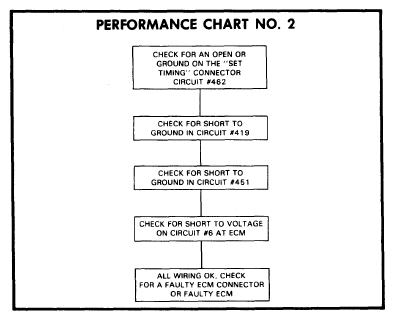

Fig 47: Performance Chart No. 2
G09340371Courtesy of GENERAL MOTORS COMPANY

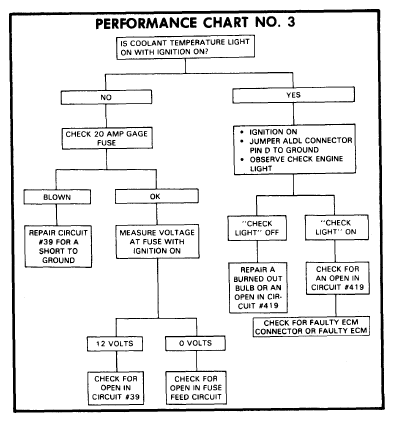

Fig 48: Performance Chart No. 3
G09340372Courtesy of GENERAL MOTORS COMPANY

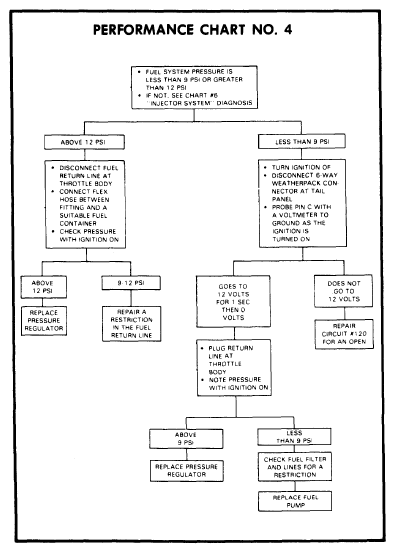

Fig 49: Performance Chart No. 4
G09340373Courtesy of GENERAL MOTORS COMPANY

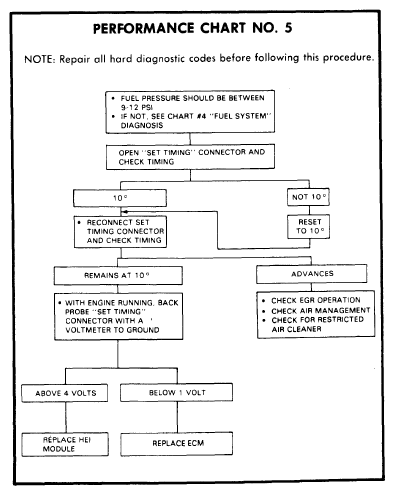

Fig 50: Performance Chart No. 5
G09340374Courtesy of GENERAL MOTORS COMPANY

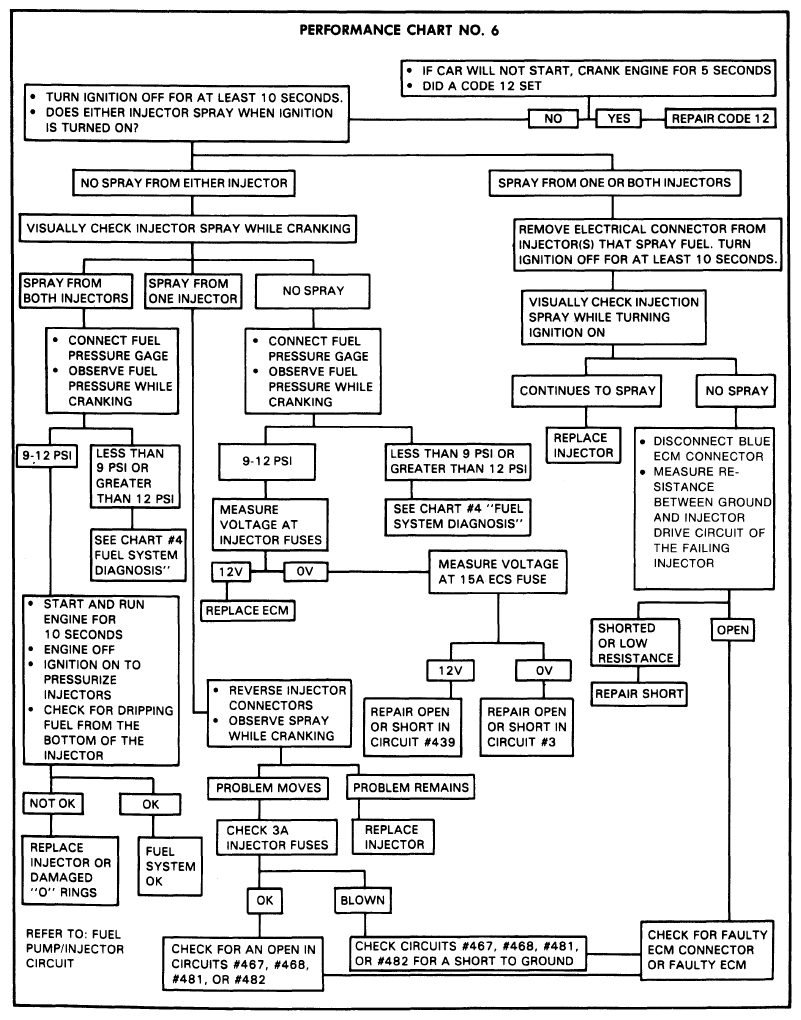

Fig 51: Performance Chart No. 6
G09340375Courtesy of GENERAL MOTORS COMPANY

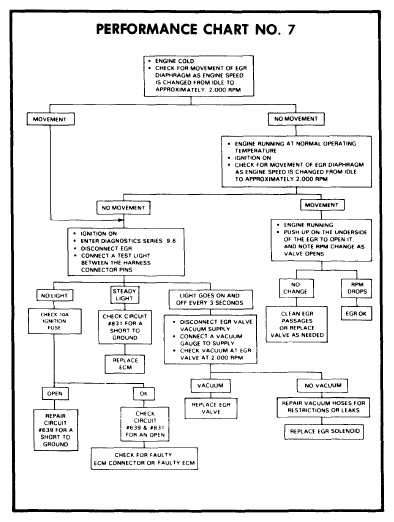

Fig 52: Performance Chart No. 7
G09340376Courtesy of GENERAL MOTORS COMPANY

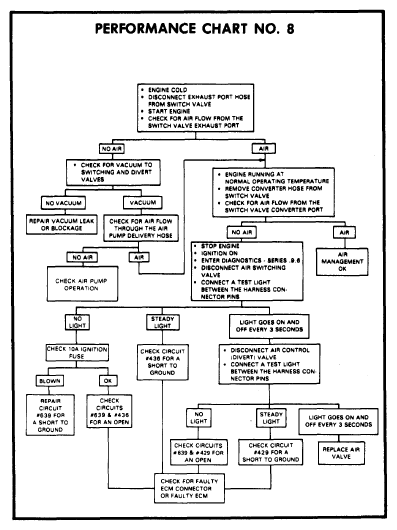

Fig 53: Performance Chart No. 8
G09340377Courtesy of GENERAL MOTORS COMPANY

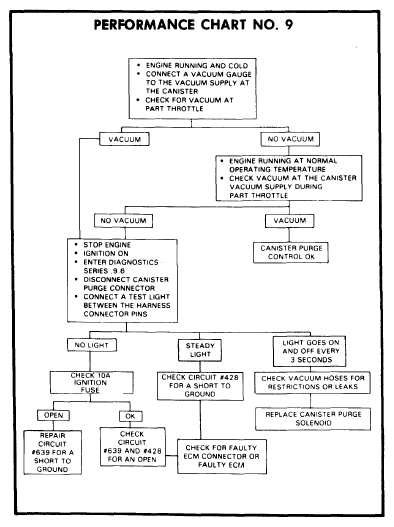

Fig 54: Performance Chart No. 9
G09340378Courtesy of GENERAL MOTORS COMPANY

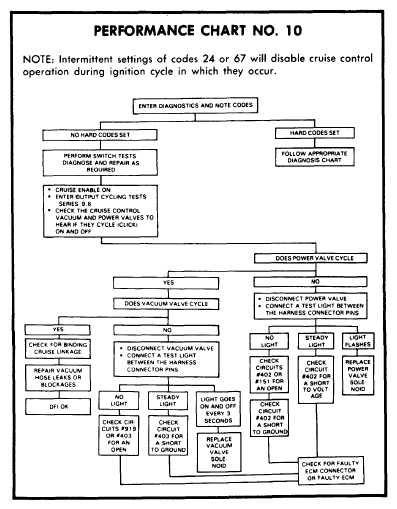

Fig 55: Performance Chart No. 10
G09340379Courtesy of GENERAL MOTORS COMPANY

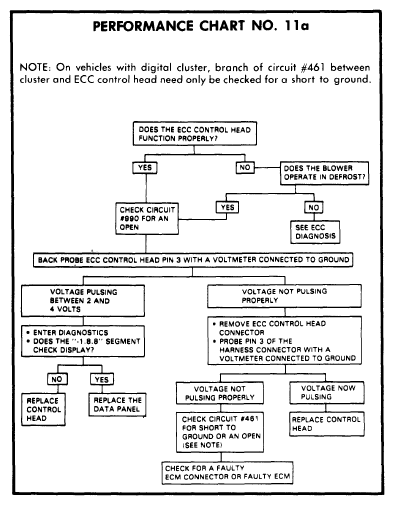

Fig 56: Performance Chart No. 11a
G09340380Courtesy of GENERAL MOTORS COMPANY

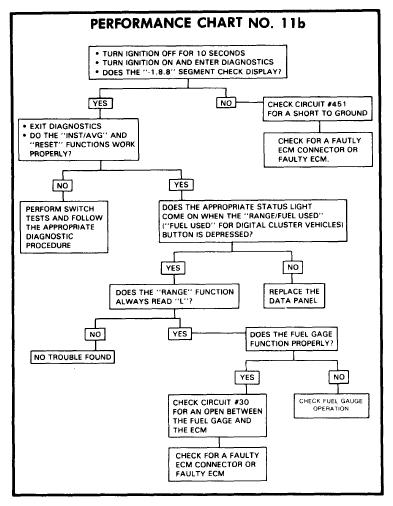

Fig 57: Performance Chart No. 11b
G09340381Courtesy of GENERAL MOTORS COMPANY

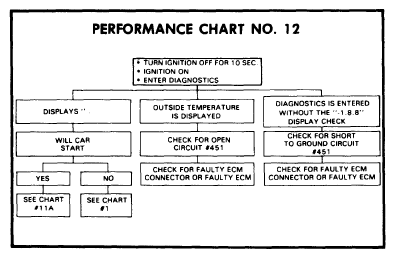

Fig 58: Performance Chart No. 12
G09340382Courtesy of GENERAL MOTORS COMPANY

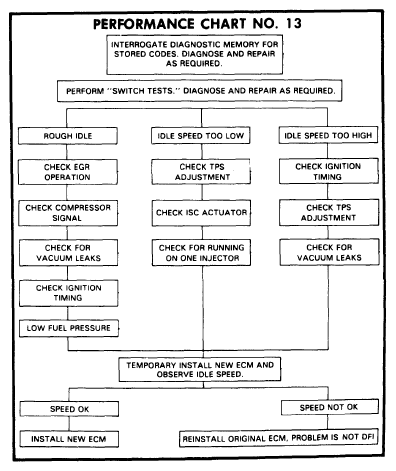

Fig 59: Performance Chart No. 13
G09340383Courtesy of GENERAL MOTORS COMPANY

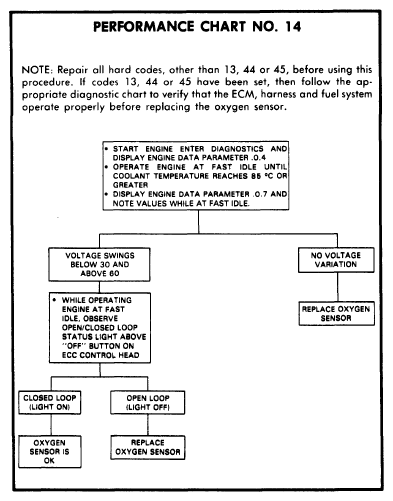

Fig 60: Performance Chart No. 14
G09340384Courtesy of GENERAL MOTORS COMPANY

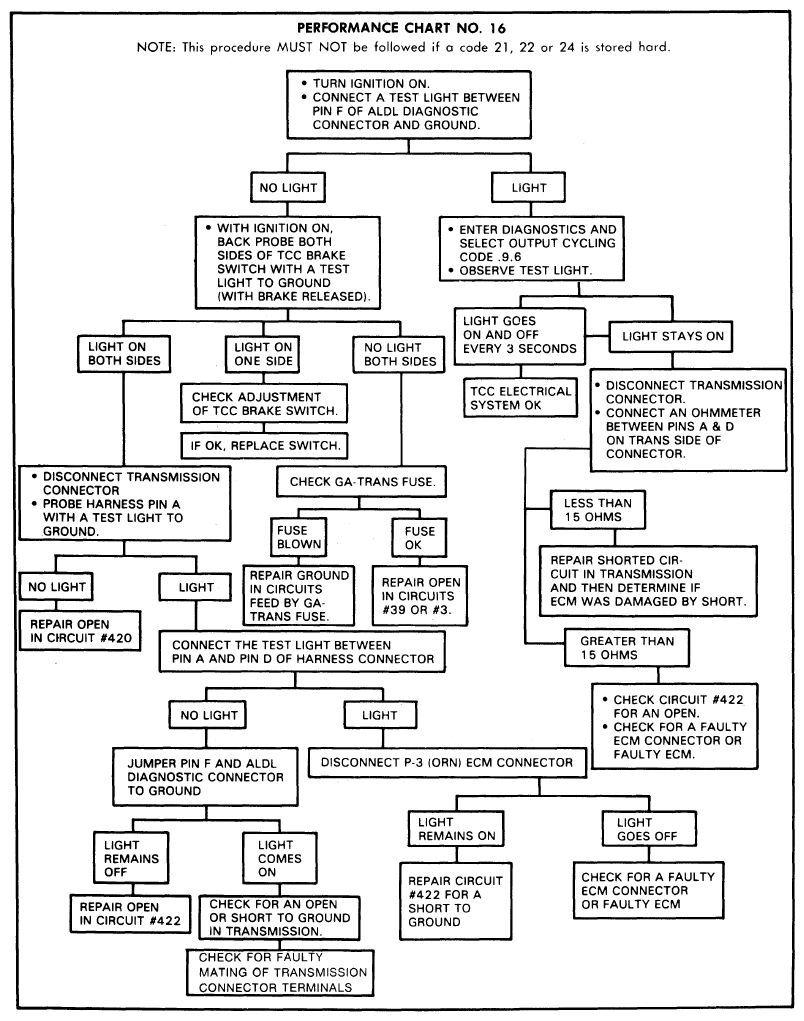

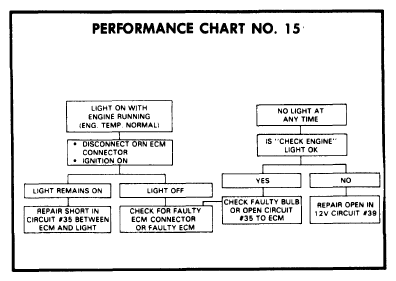

Fig 61: Performance Chart No. 15
G09340385Courtesy of GENERAL MOTORS COMPANY
Fig 62: Performance Chart No. 16
G09340386Courtesy of GENERAL MOTORS COMPANY
