Expansion Block/Orifice Tube: Locations

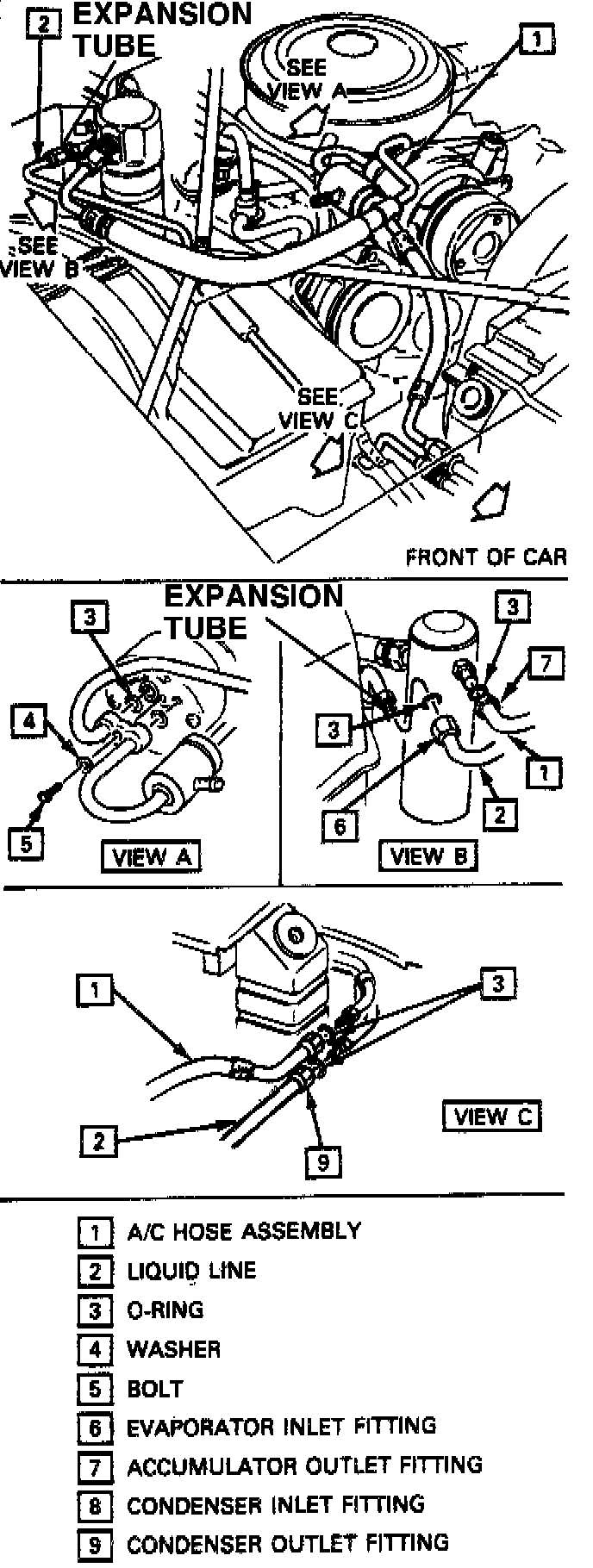

A/C Compressor Hose Routing (VIN Y):






The Expansion Tube is located in the liquid line, at the evaporator inlet fitting.
