Code 12 - No Tach Signal: Notes

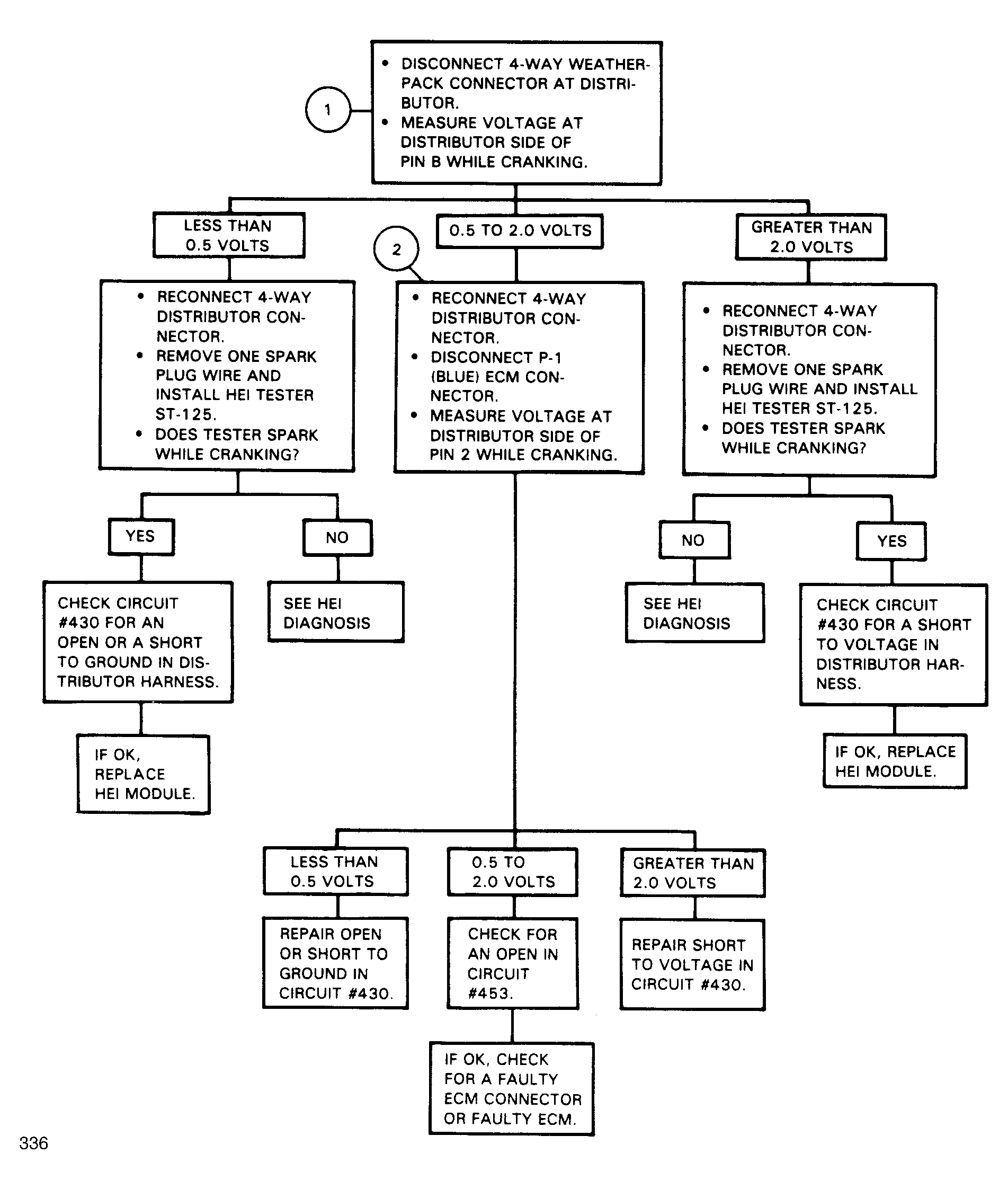

Fig 1: Flow Chart, Code 12 - No Distributor (Tach) Signal
G336

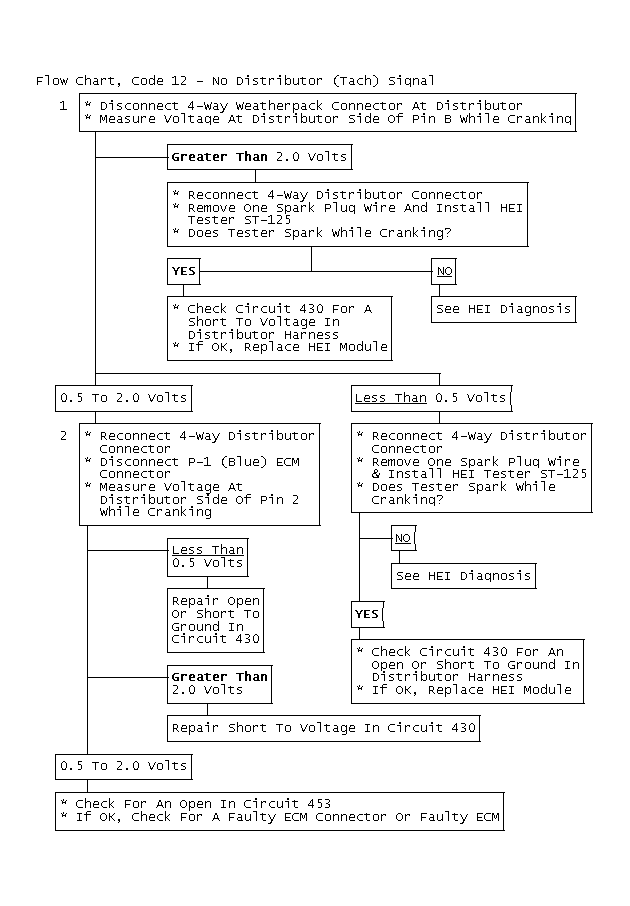

Fig 2: Flow Chart, Code 12 - No Distributor (Tach) Signal
GB0046310
