Code 14 - Shorted Cts Circuit: Notes

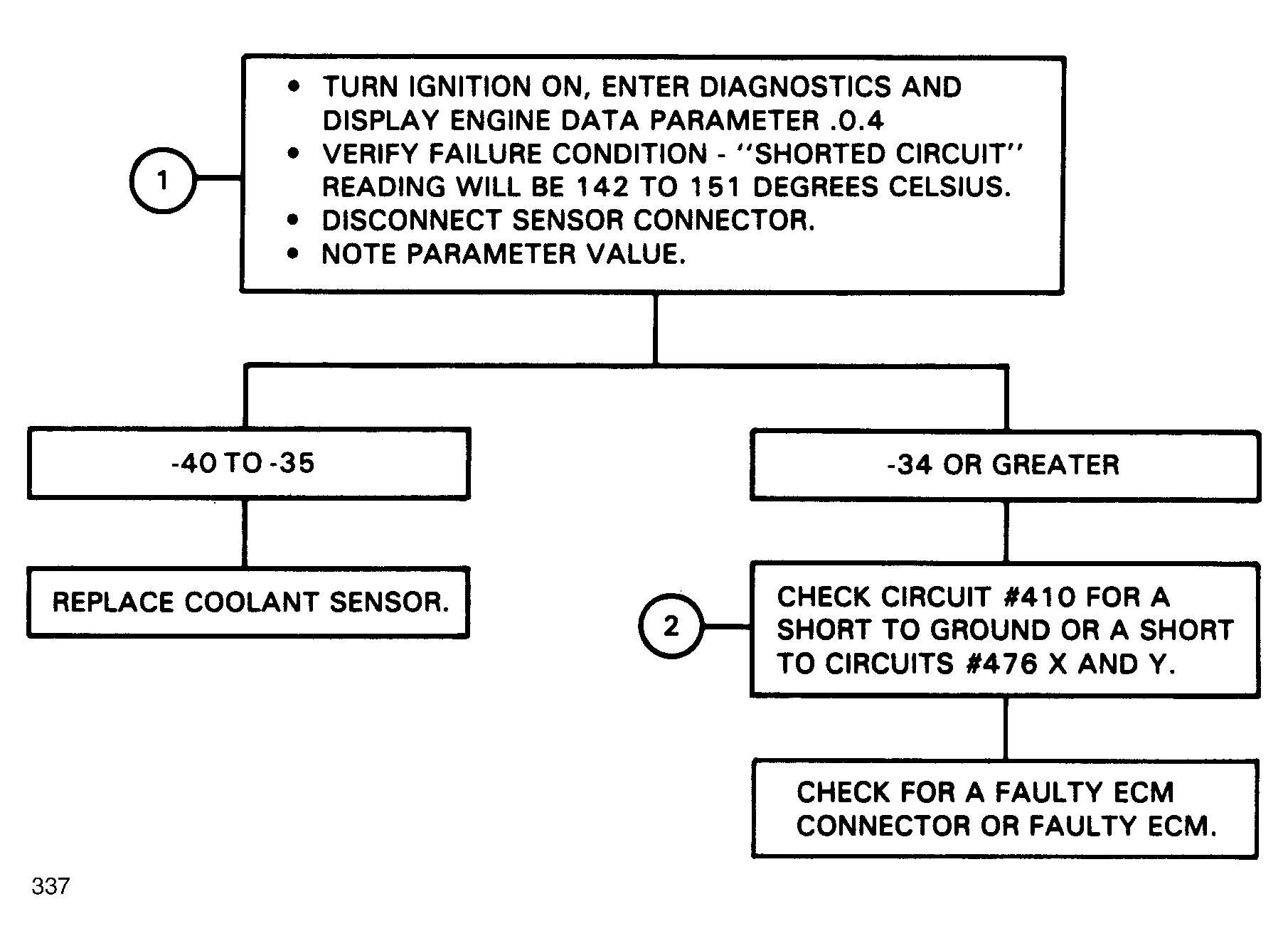

Fig 1: Flow Chart, Code 14 - Shorted Coolant Temperature (CTS) Sensor Circuit
G337

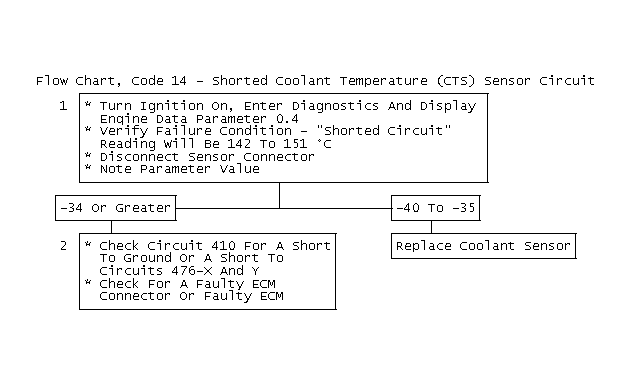

Fig 2: Flow Chart, Code 14 - Shorted Coolant Temperature (CTS) Sensor Circuit
GB0046312
