Code 15 - Open Cts Circuit: Notes

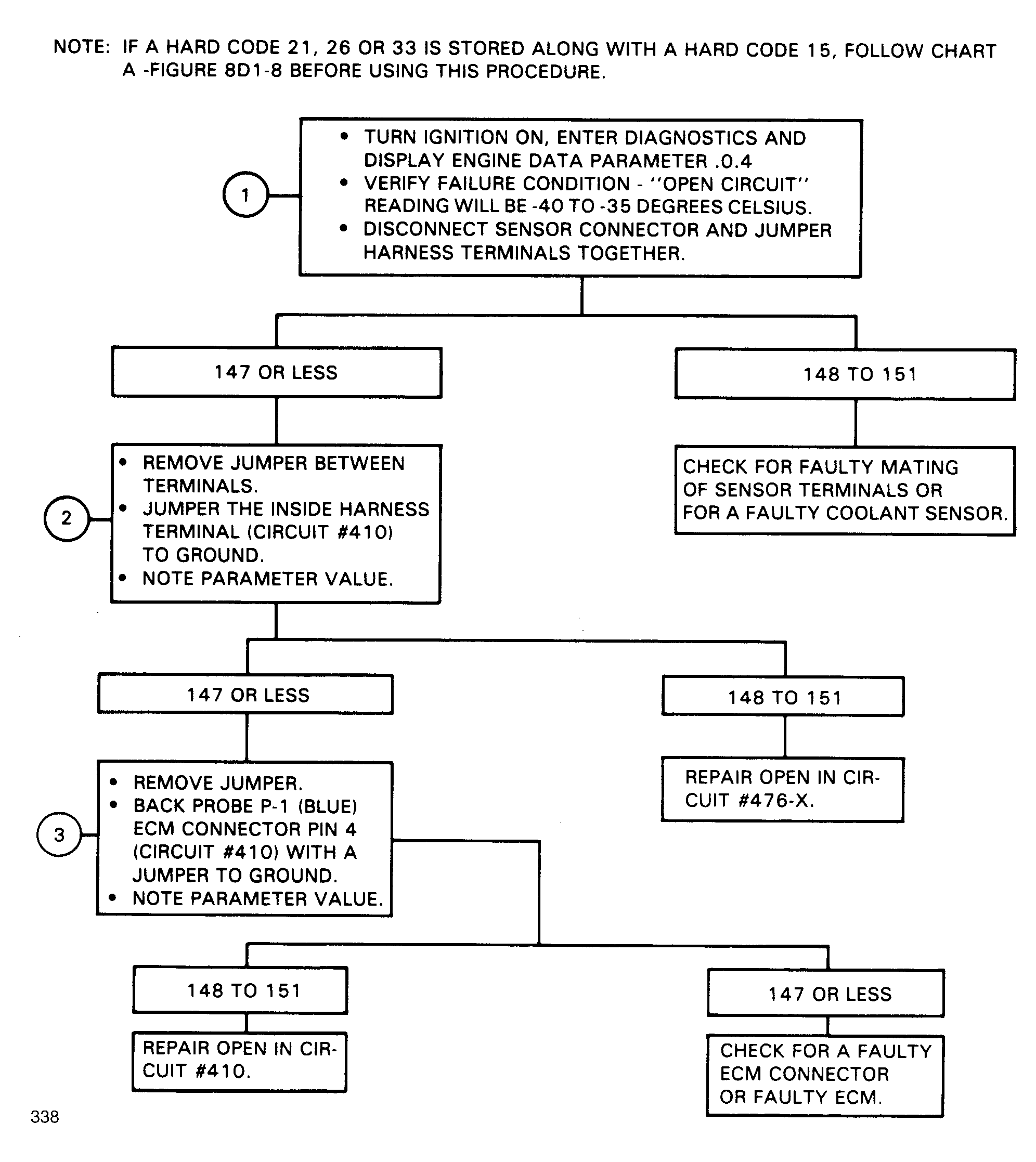

Fig 1: Flow Chart, Code 15 - Open Coolant Temperature Sensor (CTS) Circuit
G338

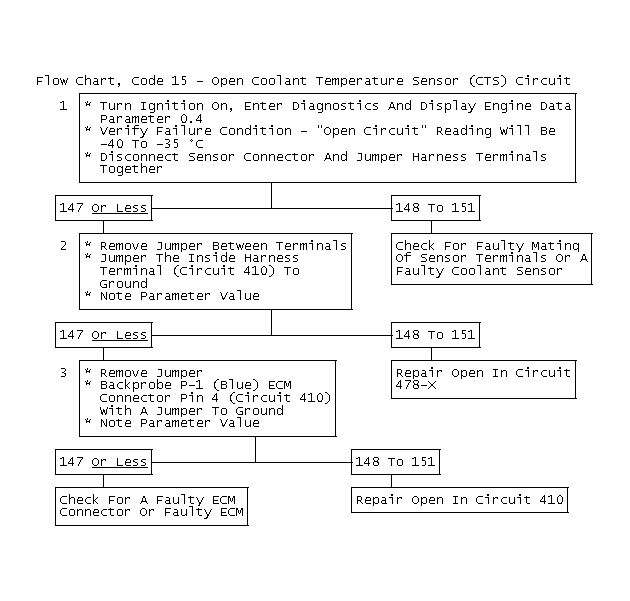

Fig 2: Flow Chart, Code 15 - Open Coolant Temperature Sensor (CTS) Circuit
GB0046313
