Code 16 - Alternator Out Of Range: Notes

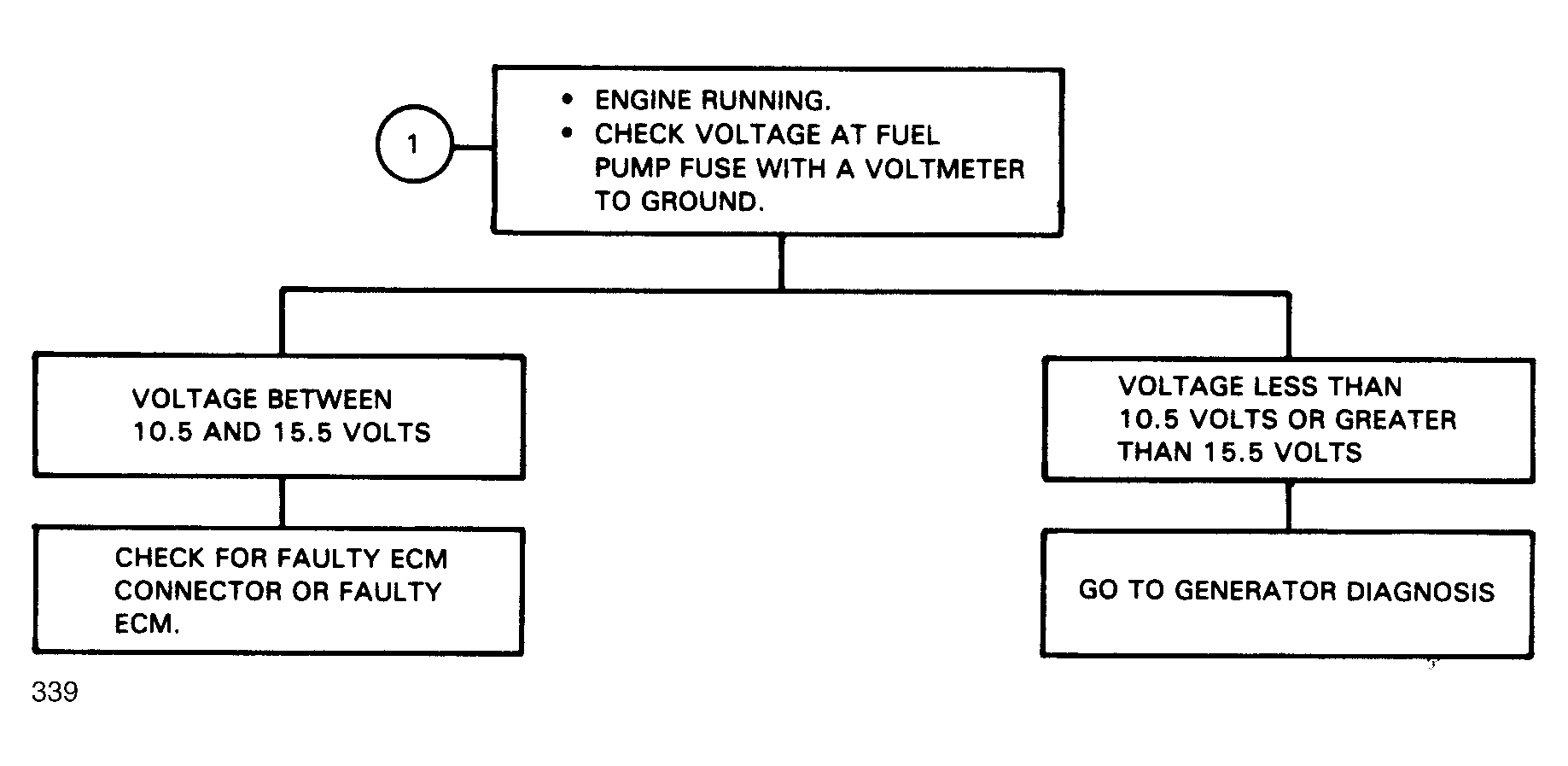

Fig 1: Flow Chart, Code 16 - Alternator Voltage Out of Range
G339

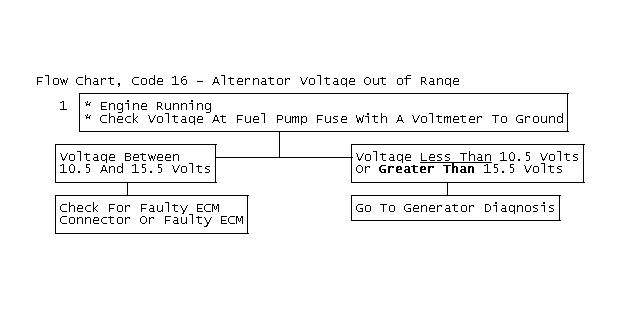

Fig 2: Flow Chart, Code 16 - Alternator Voltage Out of Range
GB0046314
