Code 20 - Open Fuel Pump Circuit: Notes

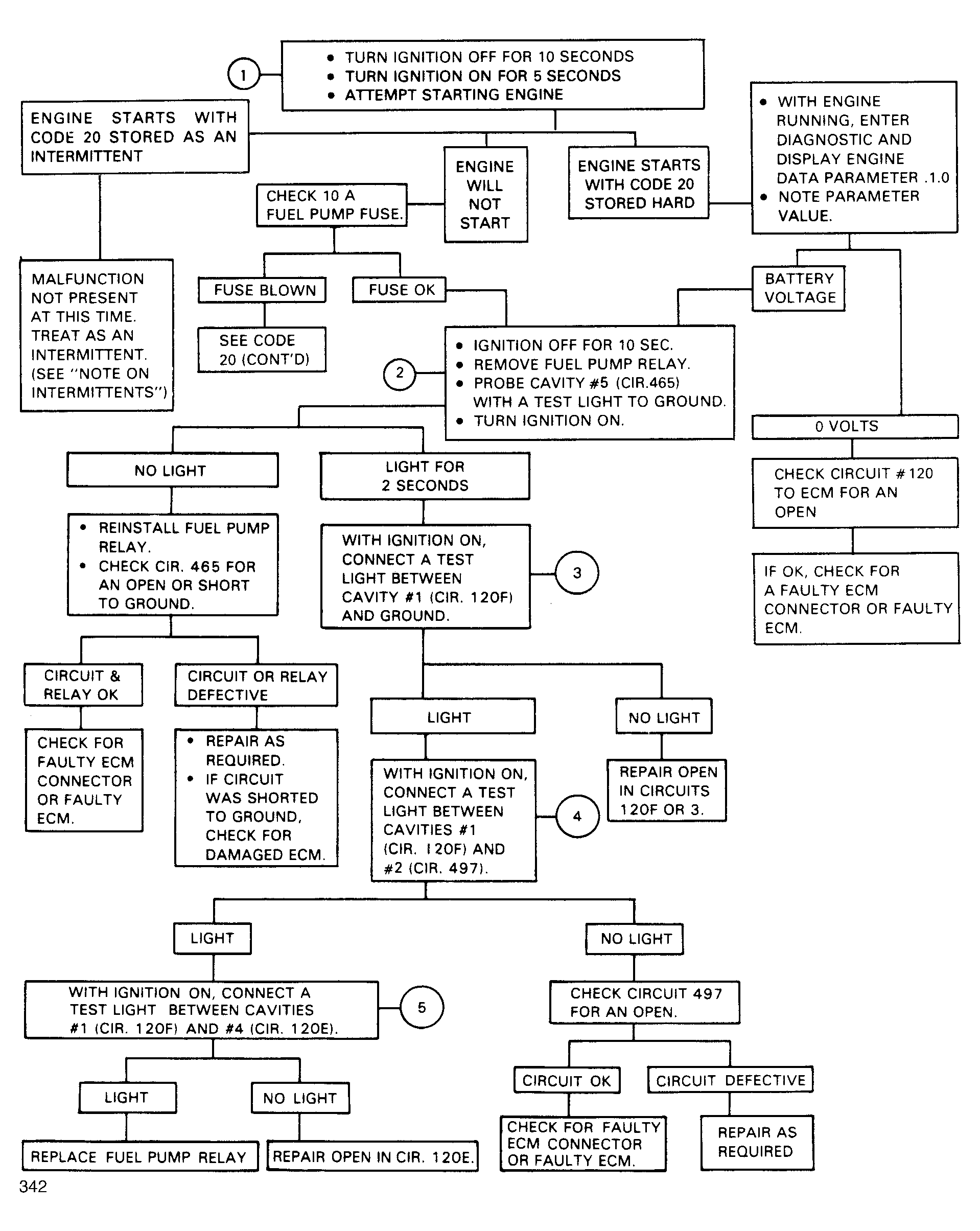

Fig 1: Flow Chart, Code 20 (1 of 2) - Open Fuel Pump Circuit

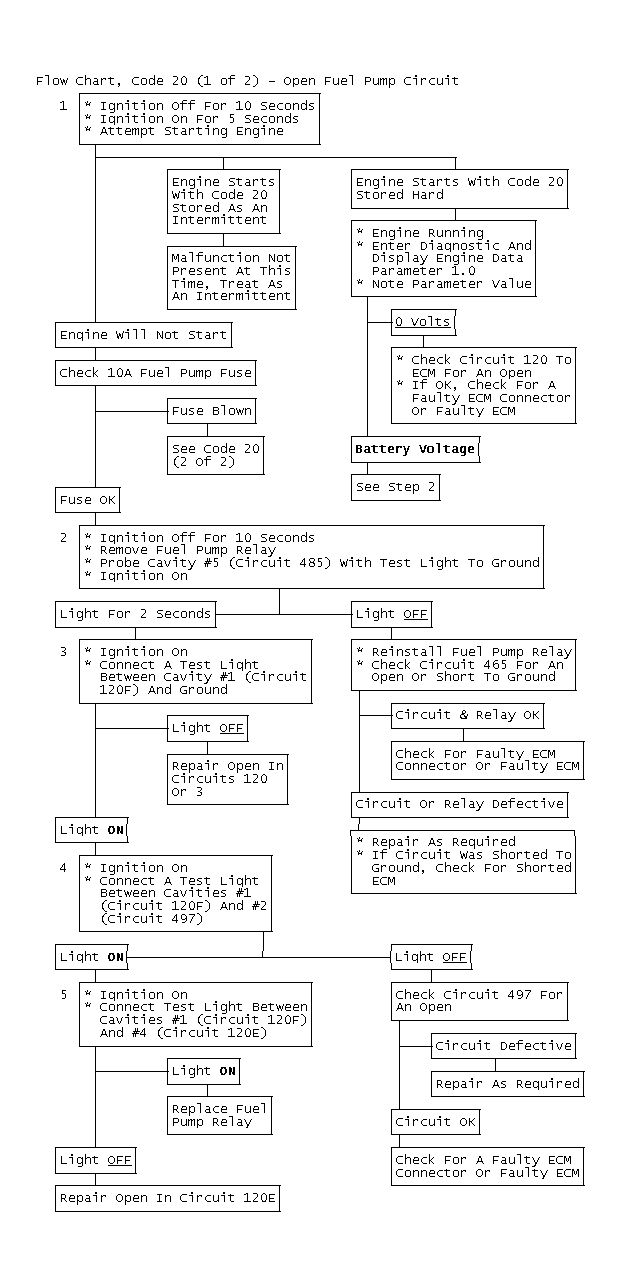

Fig 2: Flow Chart, Code 20 (1 of 2) - Open Fuel Pump Circuit

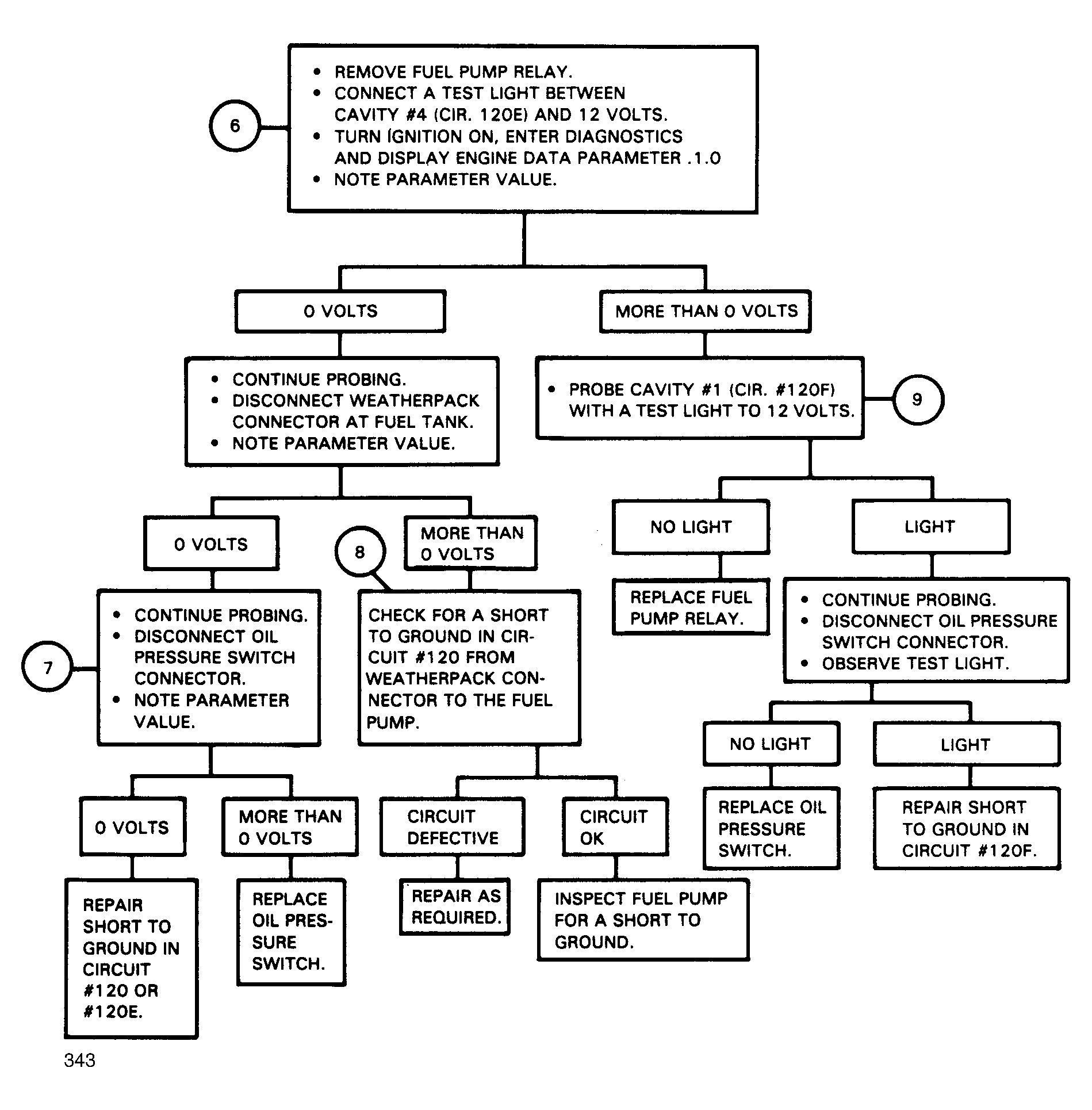

Fig 3: Flow Chart, Code 20 (2 of 2) - Fuse Blown

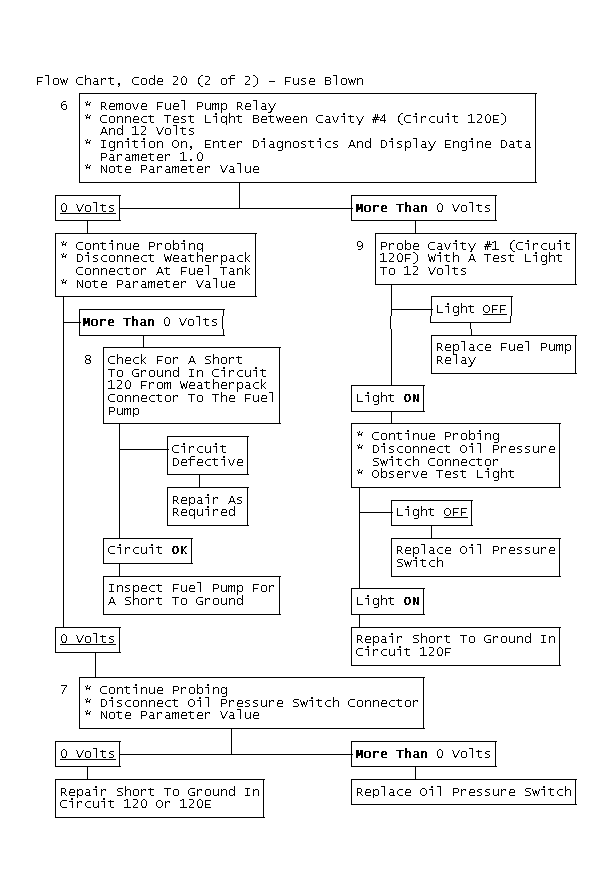

Fig 4: Flow Chart, Code 20 (2 of 2) - Fuse Blown
