Code 31 - Shorted Map Sensor Circuit: Notes

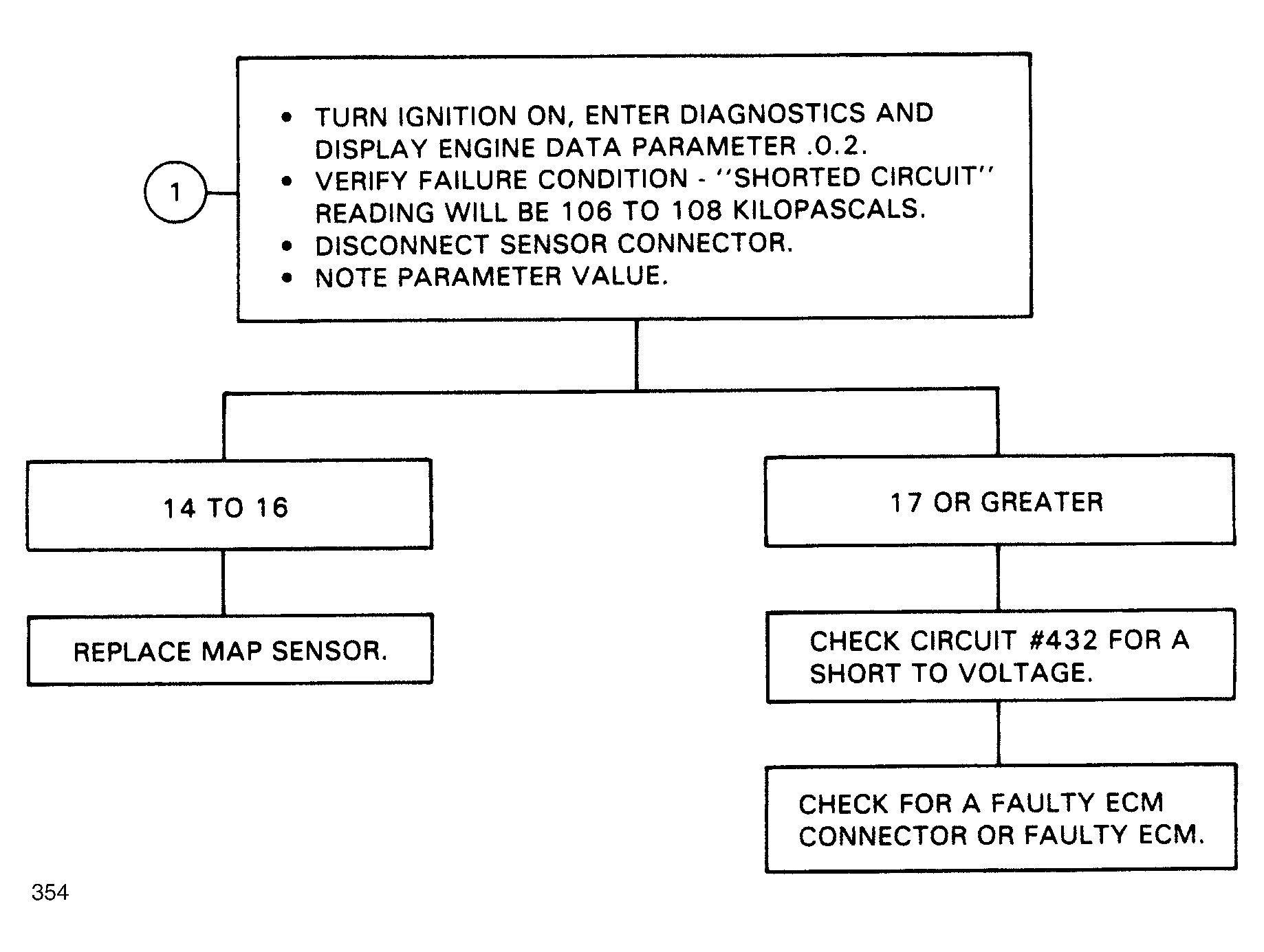

Fig 1: Flow Chart, Code 31 - Shorted Map Sensor Circuit
G354

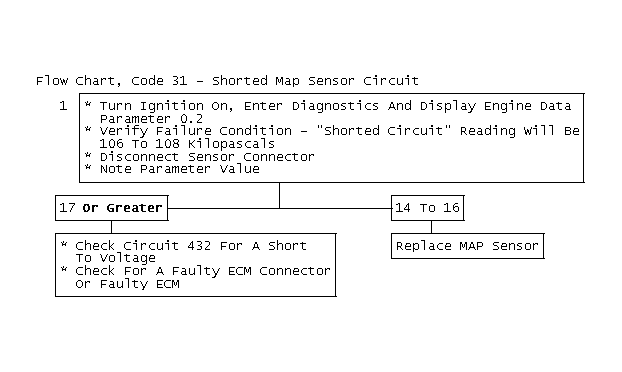

Fig 2: Flow Chart, Code 31 - Shorted Map Sensor Circuit
GB0046331
