Code 33 - Map/BARO Sensor: Notes

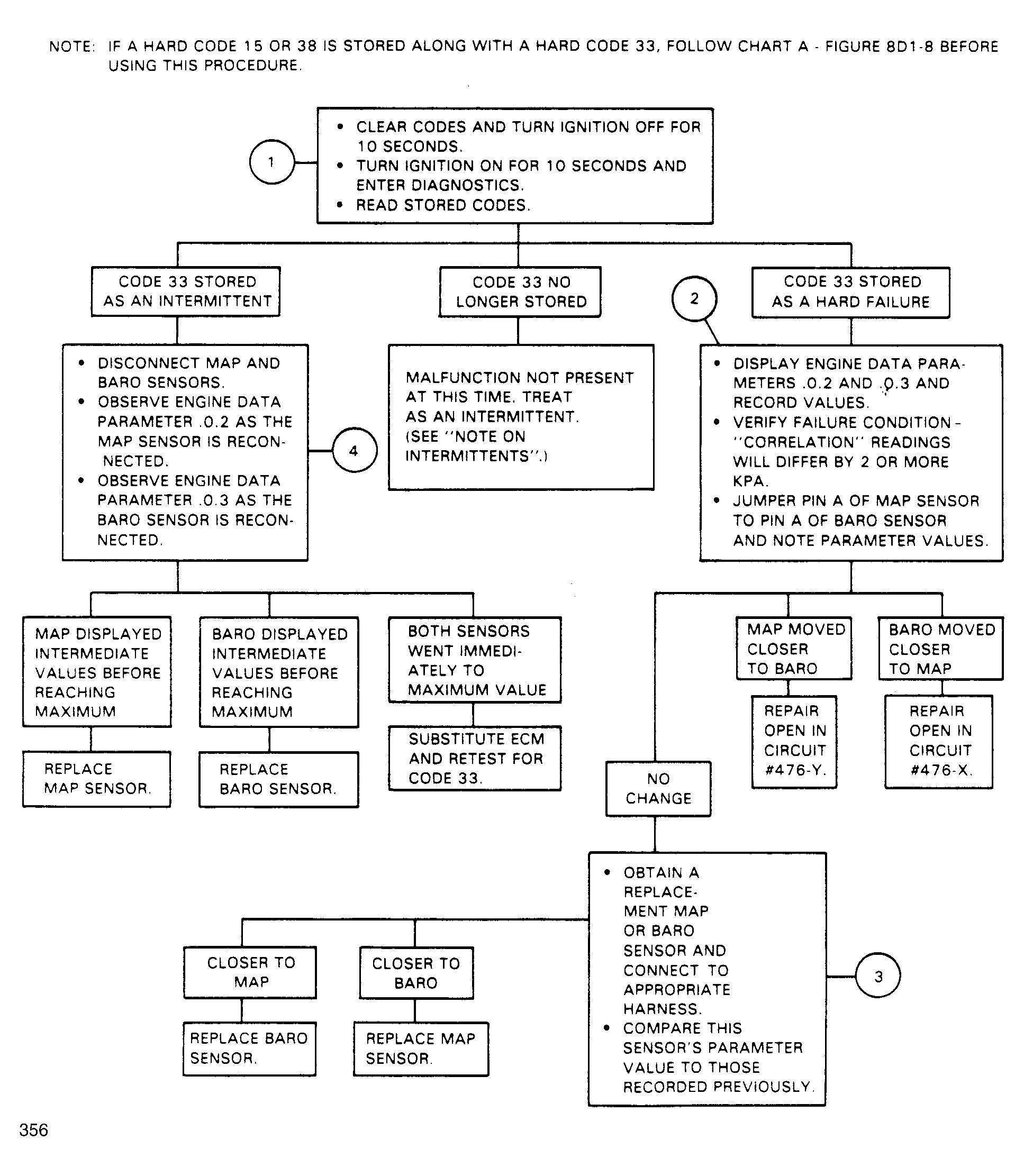

Fig 1: Flow Chart, Code 33 - MAP/BARO sensor correlation
G356

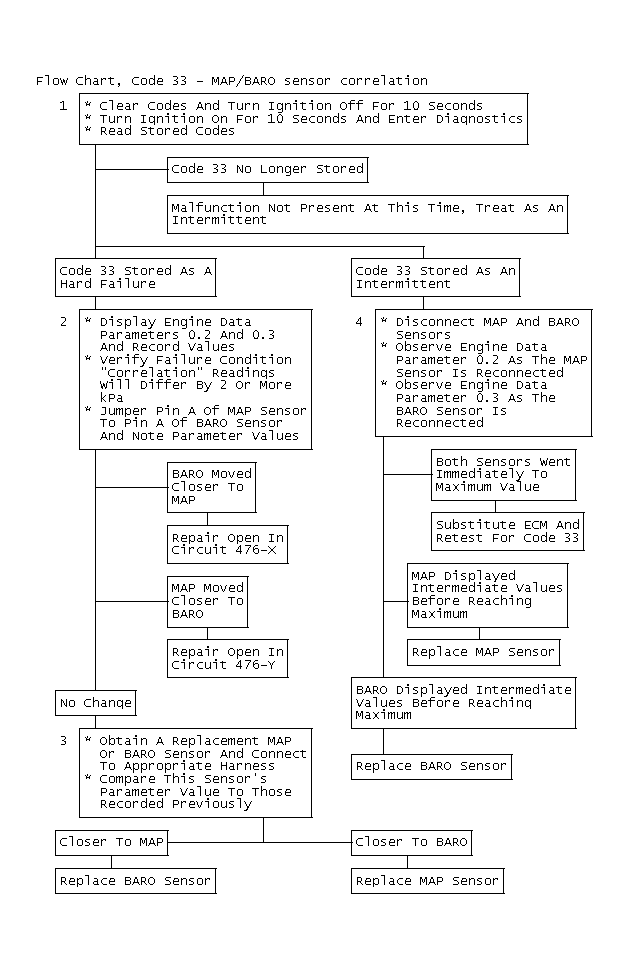

Fig 2: Flow Chart, Code 33 - MAP/BARO sensor correlation
GB0046333
