Code 34 - Map Too High: Notes

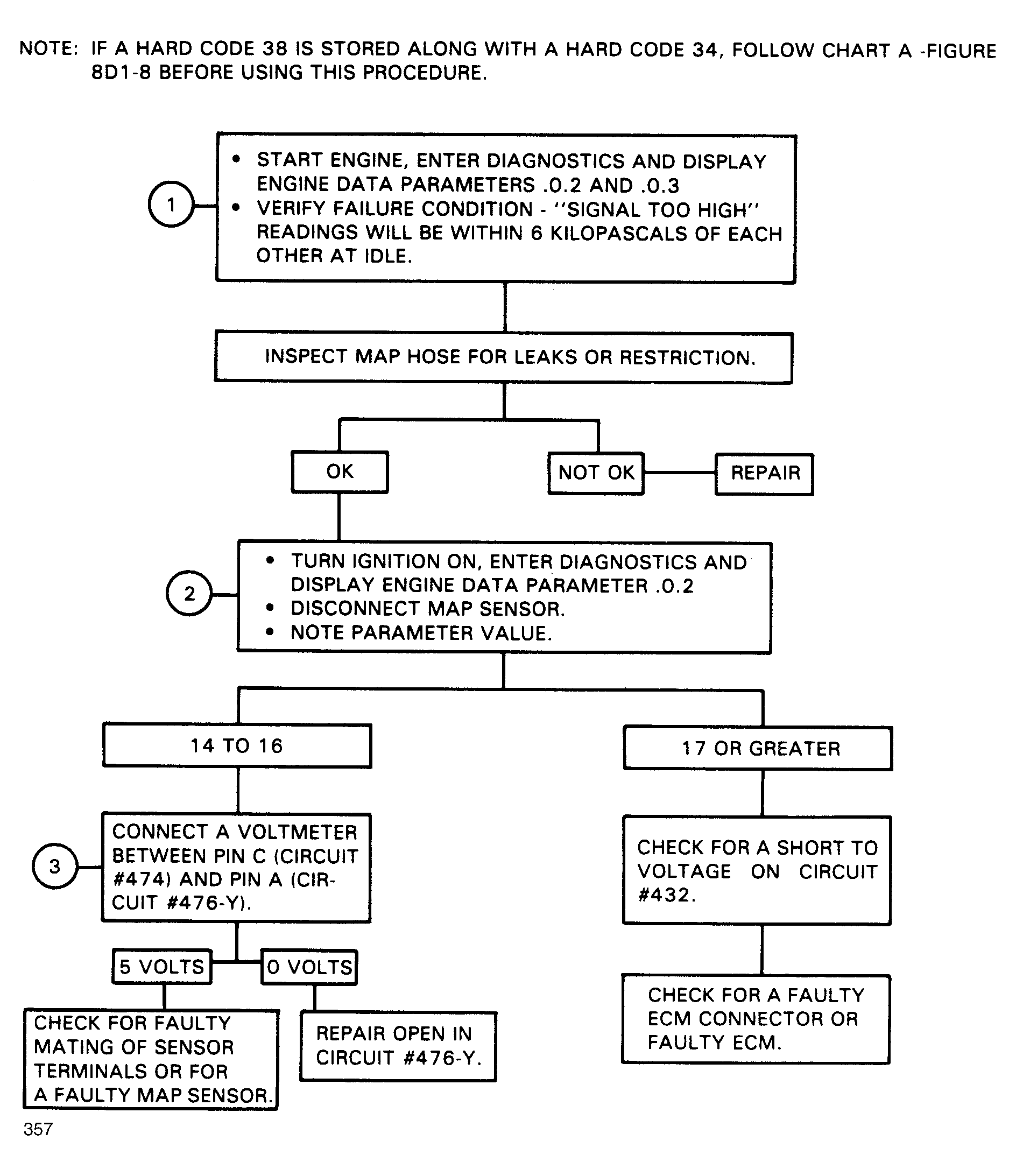

Fig 1: Flow Chart, Code 34 - MAP Signal Too High

G357

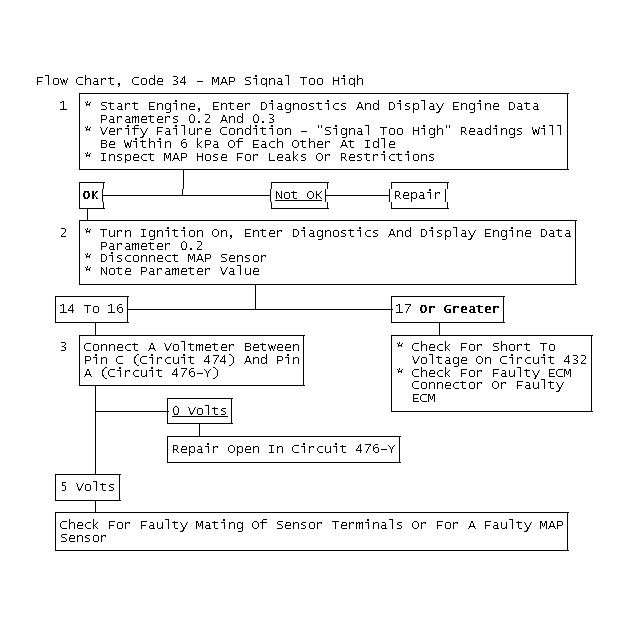

Fig 2: Flow Chart, Code 34 - MAP Signal Too High

GB0046334
