Code 71 - Cruise Control Brake Circuit: Notes

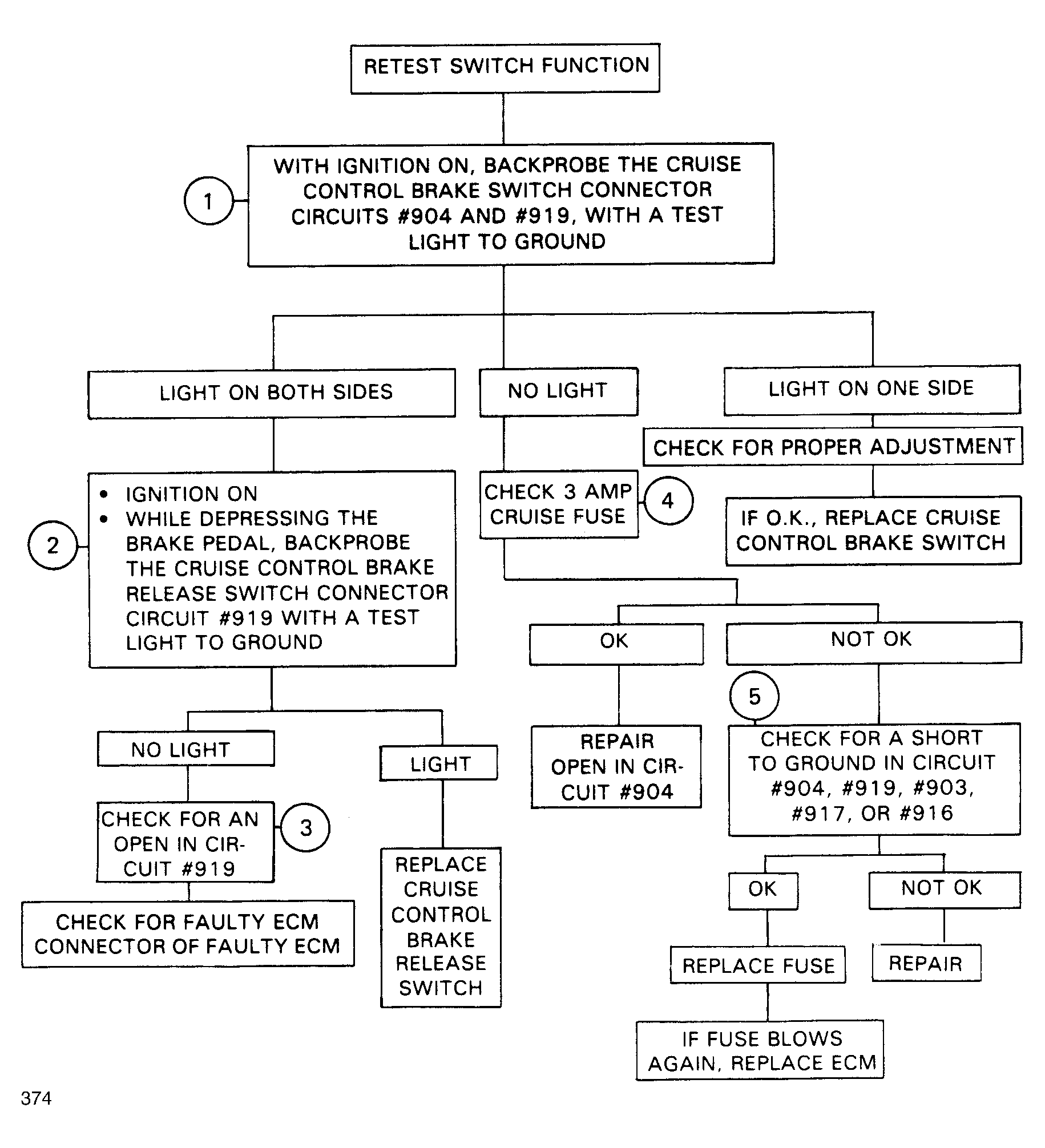

Fig 1: Flow Chart, Code 71 - Cruise Control Brake Circuit

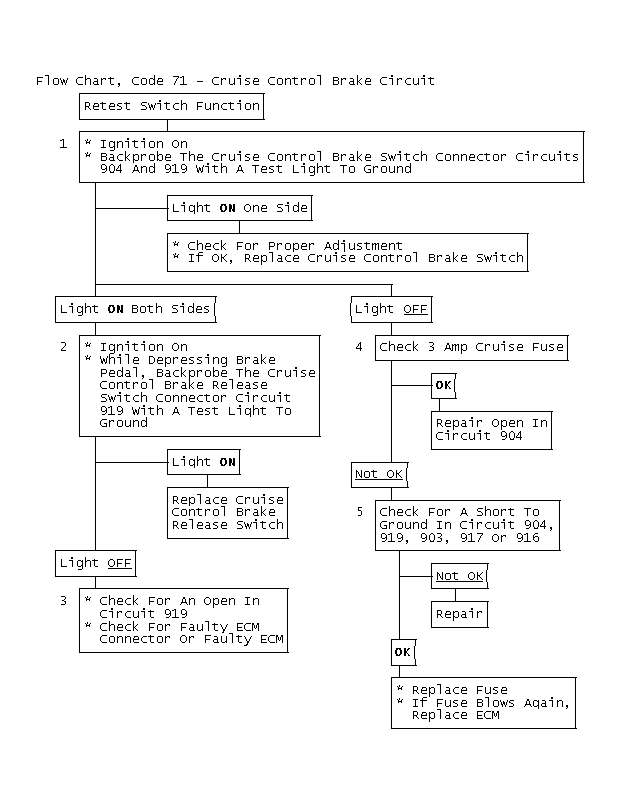

Fig 2: Flow Chart, Code 71 - Cruise Control Brake Circuit
