Control Assembly: Service and Repair

WITH A/C

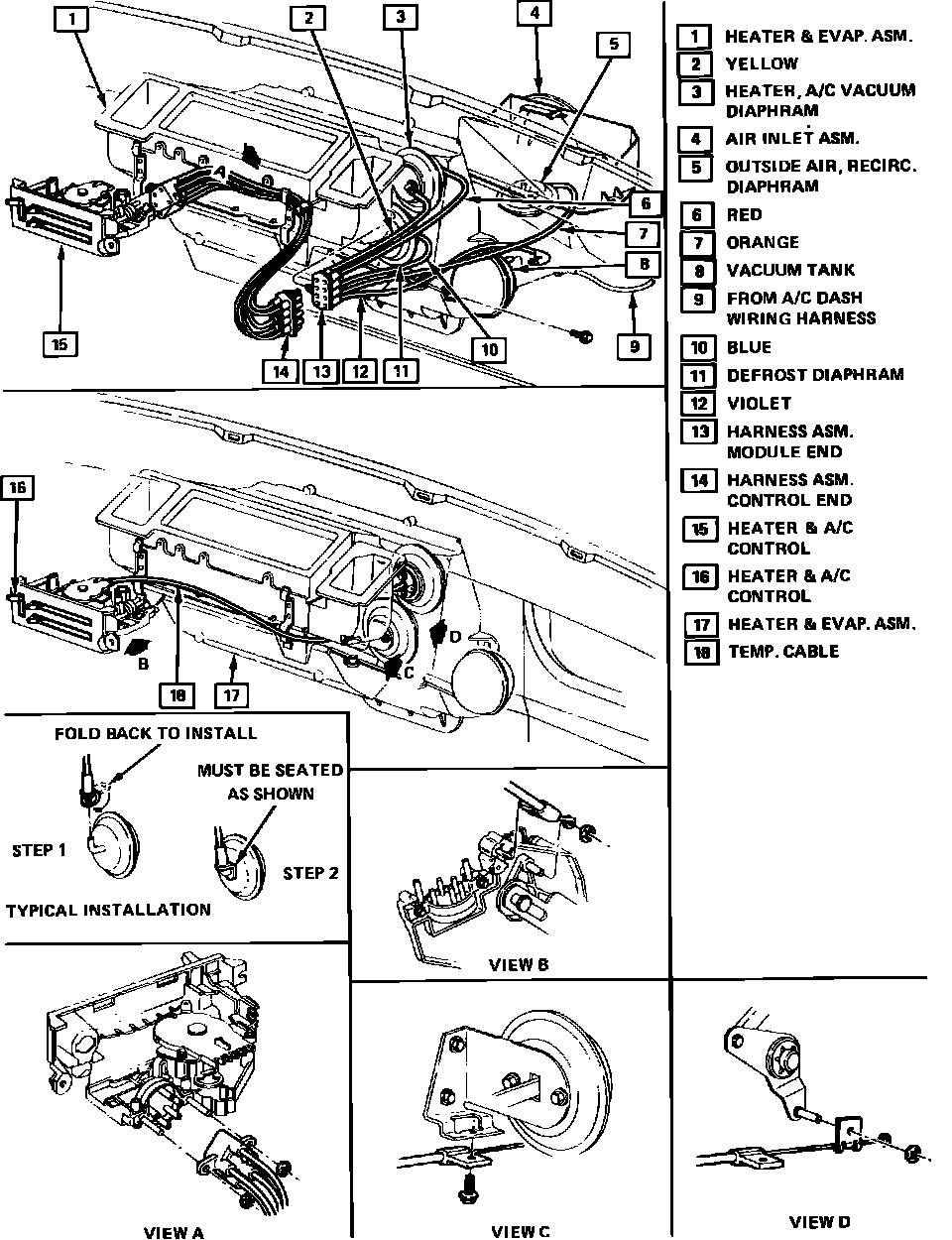

Fig. 5 Typical A/C & heater temperature control & vacuum components. Cavalier, Cimarron, Firenza, Skyhawk & Sunbird:

CAVALIER, CIMARRON, FIRENZA, SKYHAWK & SUNBIRD

1. Disconnect battery ground cable.
2. Remove steering column cover and right trim cover.
3. Remove three control assembly retaining screws, Fig. 5.
4. Draw control assembly sufficiently from dash to permit control cables, harness leads, and vacuum lines to be disconnected. Note location of all connections for reinstallation.
5. Reverse procedure to install.
