Code 24 Diagnostic Flow Chart

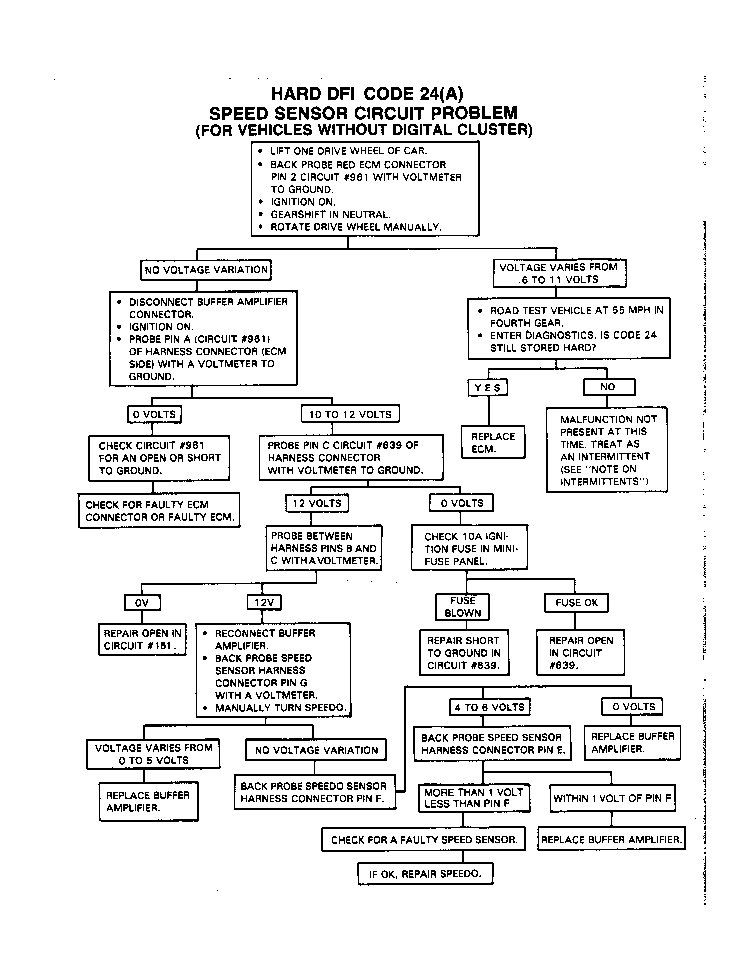

Fig 1: Hard Trouble Code 24 (Without Digital Cluster)
G9224

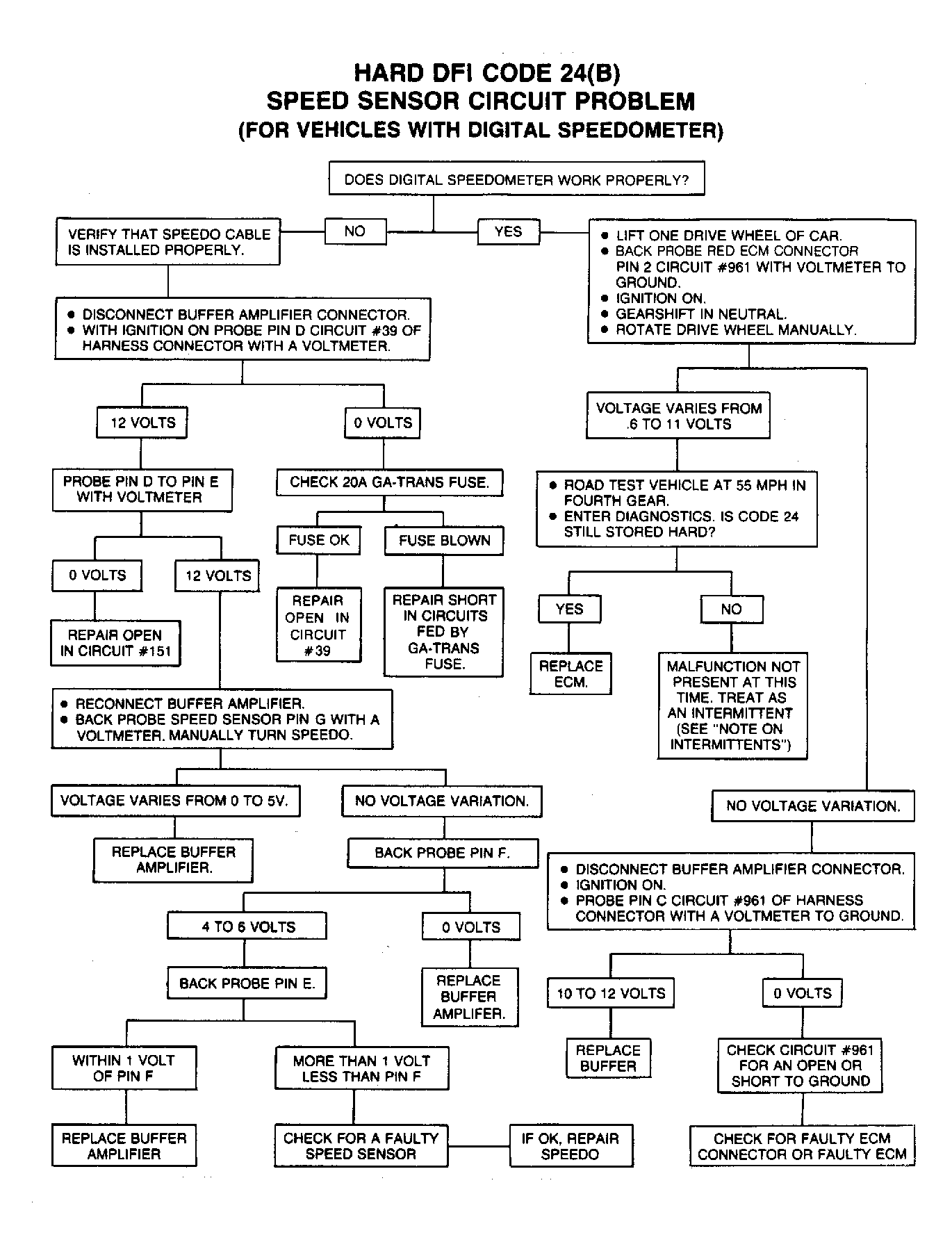

Fig 2: Hard Trouble Code 24 (With Digital Cluster)
G9225
