Trouble Shooting: Notes
NOTE:

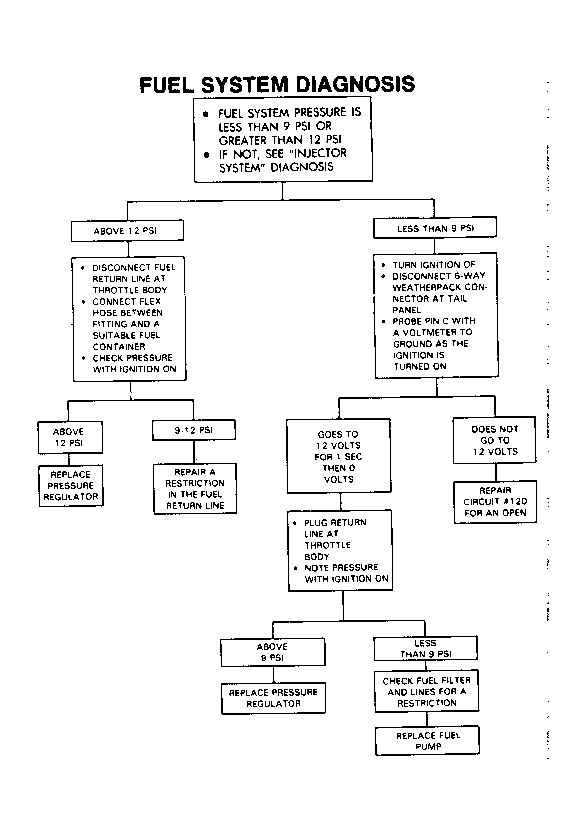

Diagnosis of fuel system should begin with a fuel pump pressure test. Connect Fuel Pressure Gauge (J-25400-300) to fuel line servicing fitting and measure fuel pressure while cranking engine. Use Fuel System Diagnosis chart if pressure is not between 9-12 psi. Use Injector System Diagnosis chart if pressure is between 9-12 psi.
NOTE:

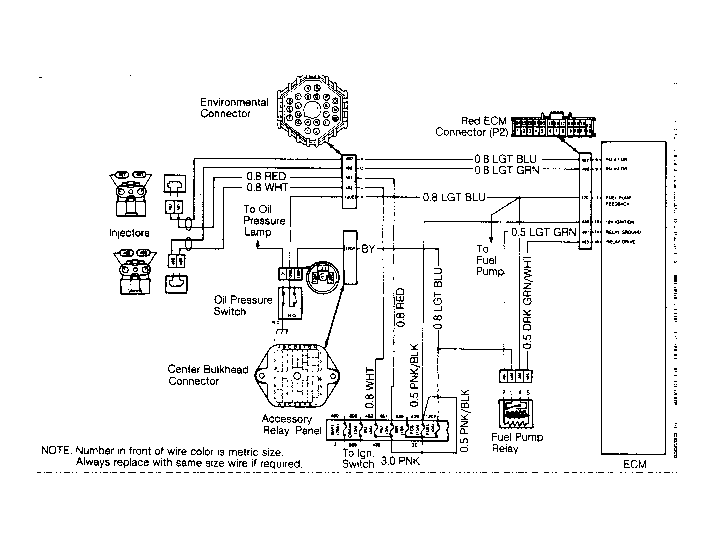

See Figure
for pin and circuit number locations.
