Home >> Cadillac >> 1985 >> Cimarron L4-121 2.0L >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> Tachometer Filter

September 30: LEMON manuals is back up on a temporary server! Slowness is possible

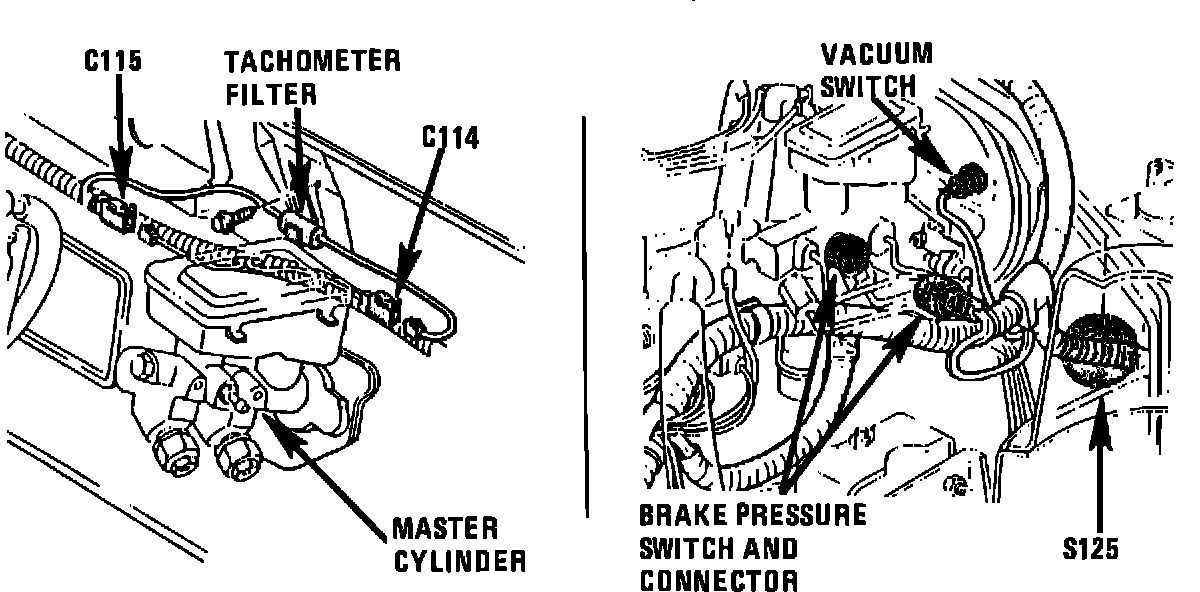

Tachometer Filter

LH Side Of Engine Compartment.:

Upper LH Side Of Engine Compartment

Applicable to: 1985 Cimarron
