Note On INTERMITTENTS

If intermittent code is being set, lift drive wheels and let vehicle idle in low gear. Manipulate related wiring while observing engine data parameter P.1.2. If failure is induced, reading will drop from normal reading to a reading of 0 MPH. This will help to isolate location of malfunction.

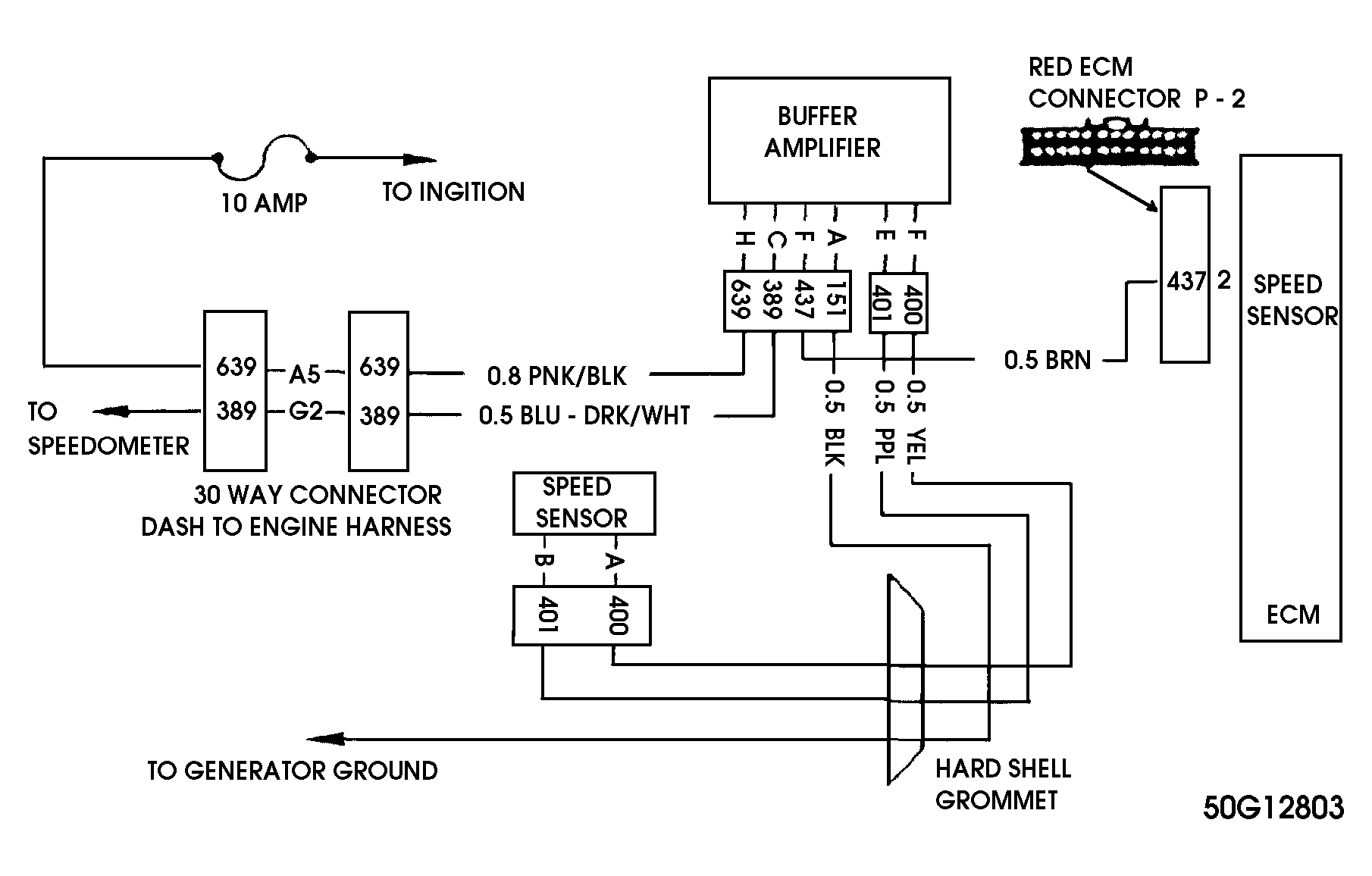

Fig 1: Hard Trouble CODE E24 - Schematic
G50G12803

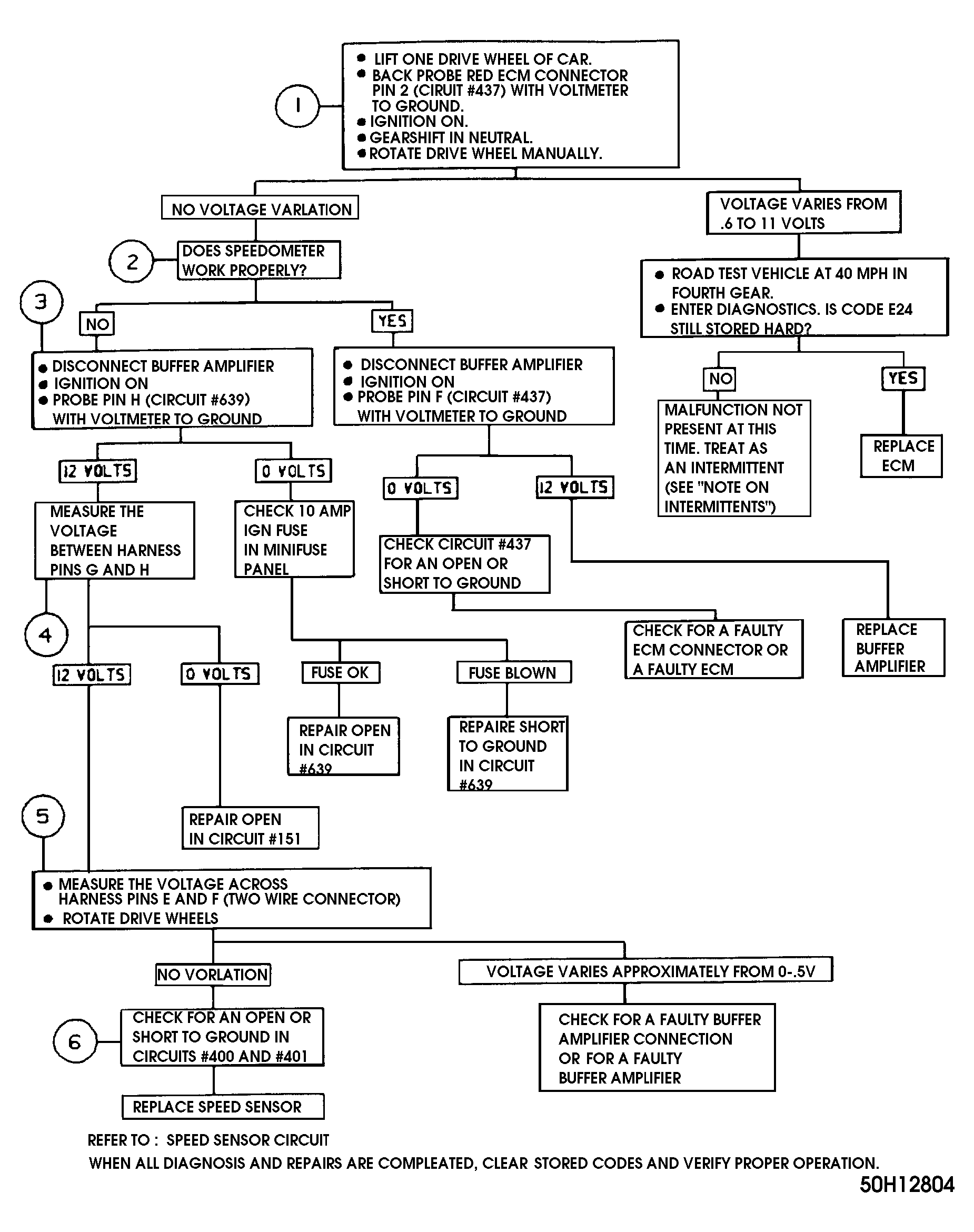

Fig 2: Hard Trouble CODE E24 - Flow Chart
G50H12804
