Starting and Charging: Specifications

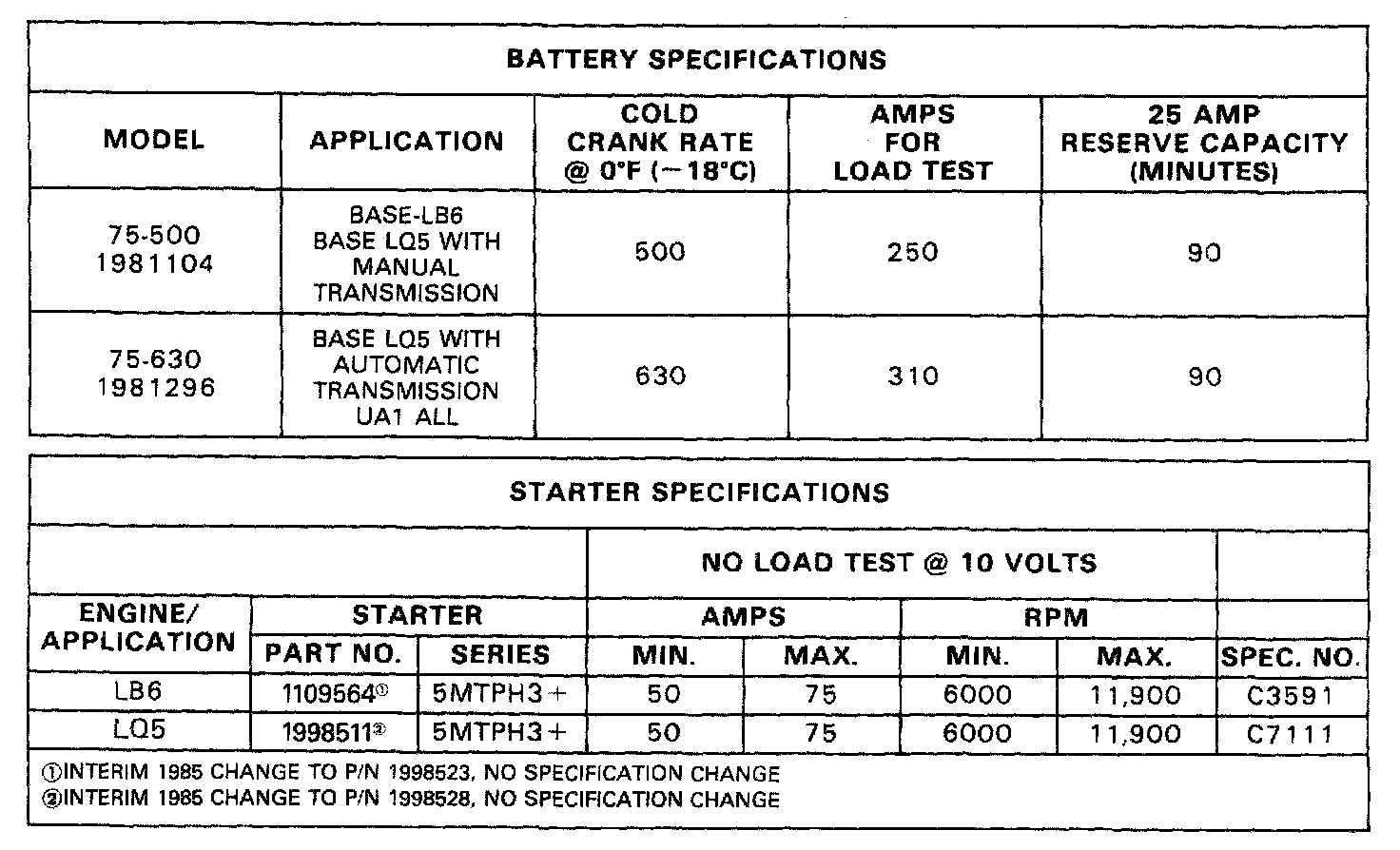

SYSTEM SPECIFICATIONS





ALTERNATOR TORQUE SPECIFICATIONS

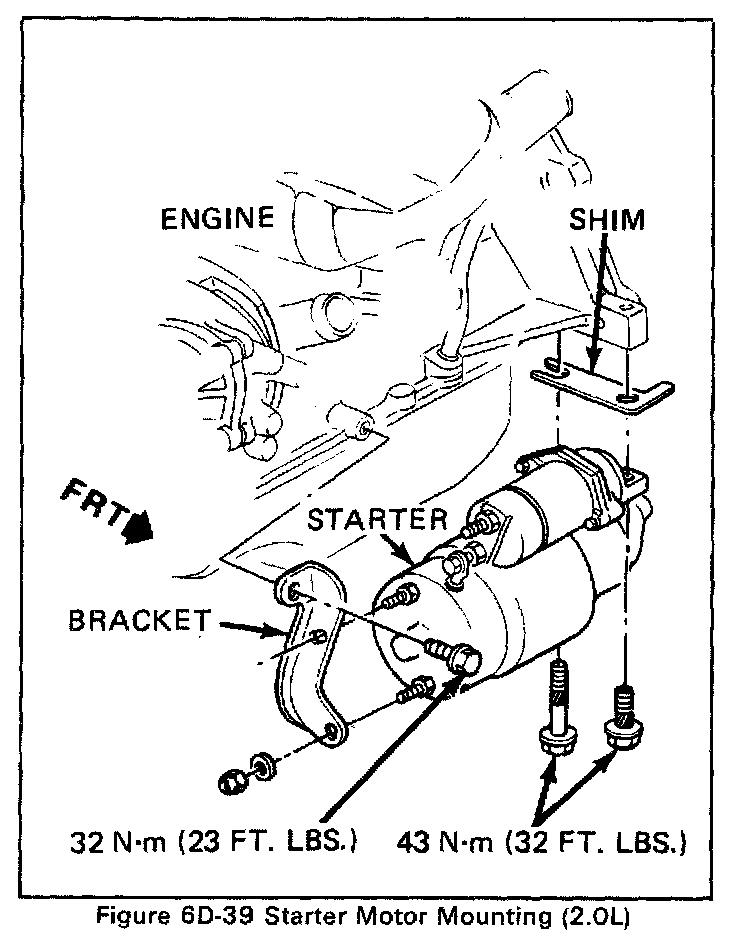

STARTER TORQUE SPECIFICATIONS
