Control Protection Device
CIRCUIT PROTECTION DEVICE LOCATIONS
| Component | Location |
|---|---|
| Central Power Supply (CPS) | Behind Left Side Of Instrument Panel. See Figure . |

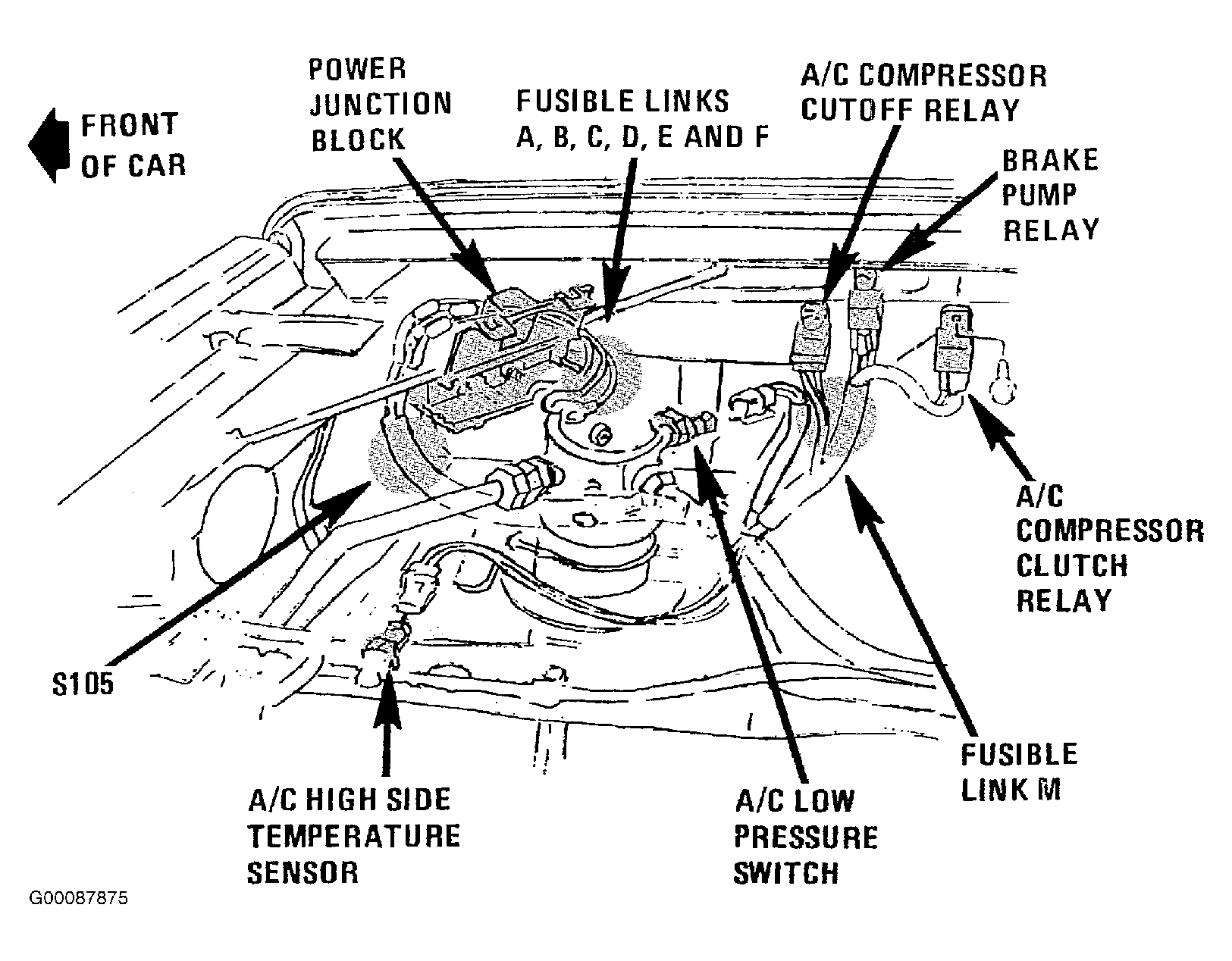

| Fusible Links A, B, C, D, E & F | Right Front Corner Of Engine Compartment. See Figure . |

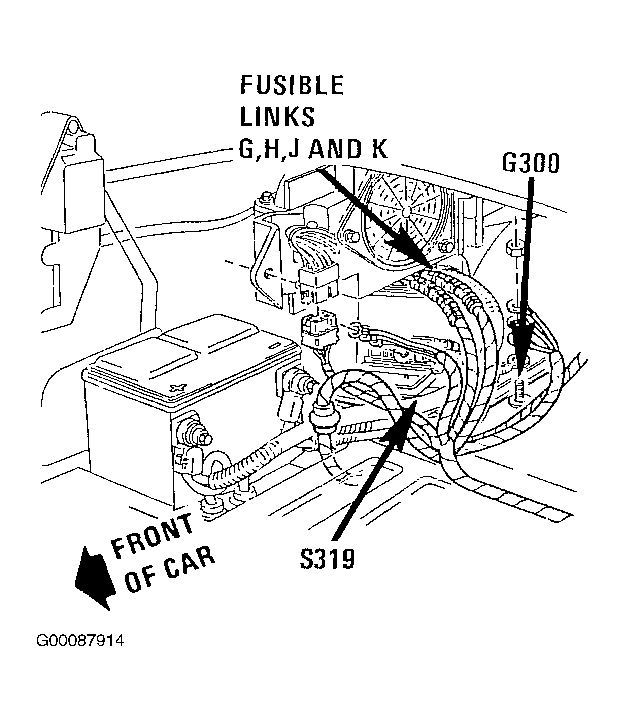

| Fusible Links G, H, J & K | Behind Right Seat. See Figure . |

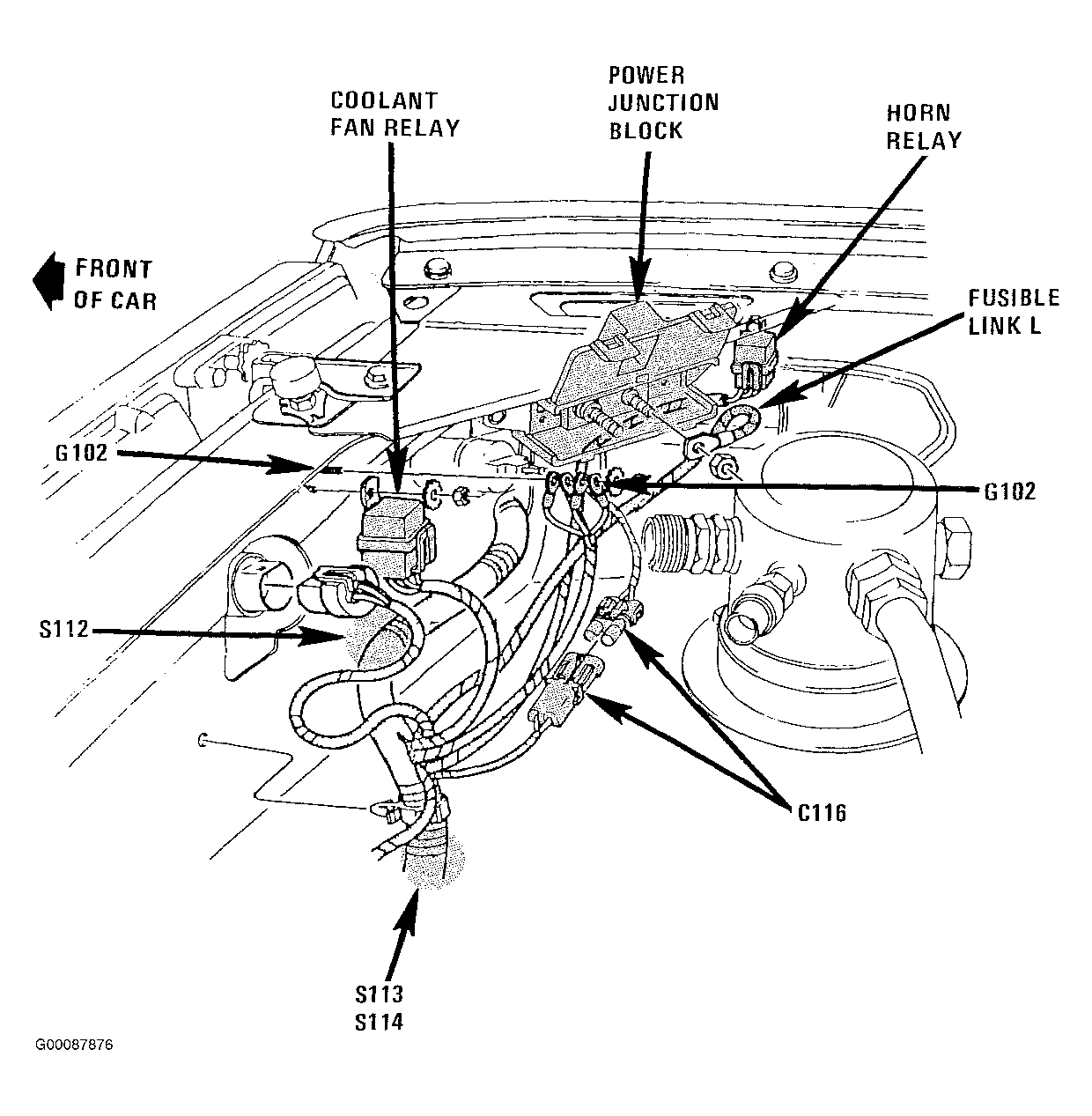

| Fusible Link L | Right Front Of Engine Compartment. See Figure . |
| Fusible Link M | Right Front Corner Of Engine Compartment. See Figure . |

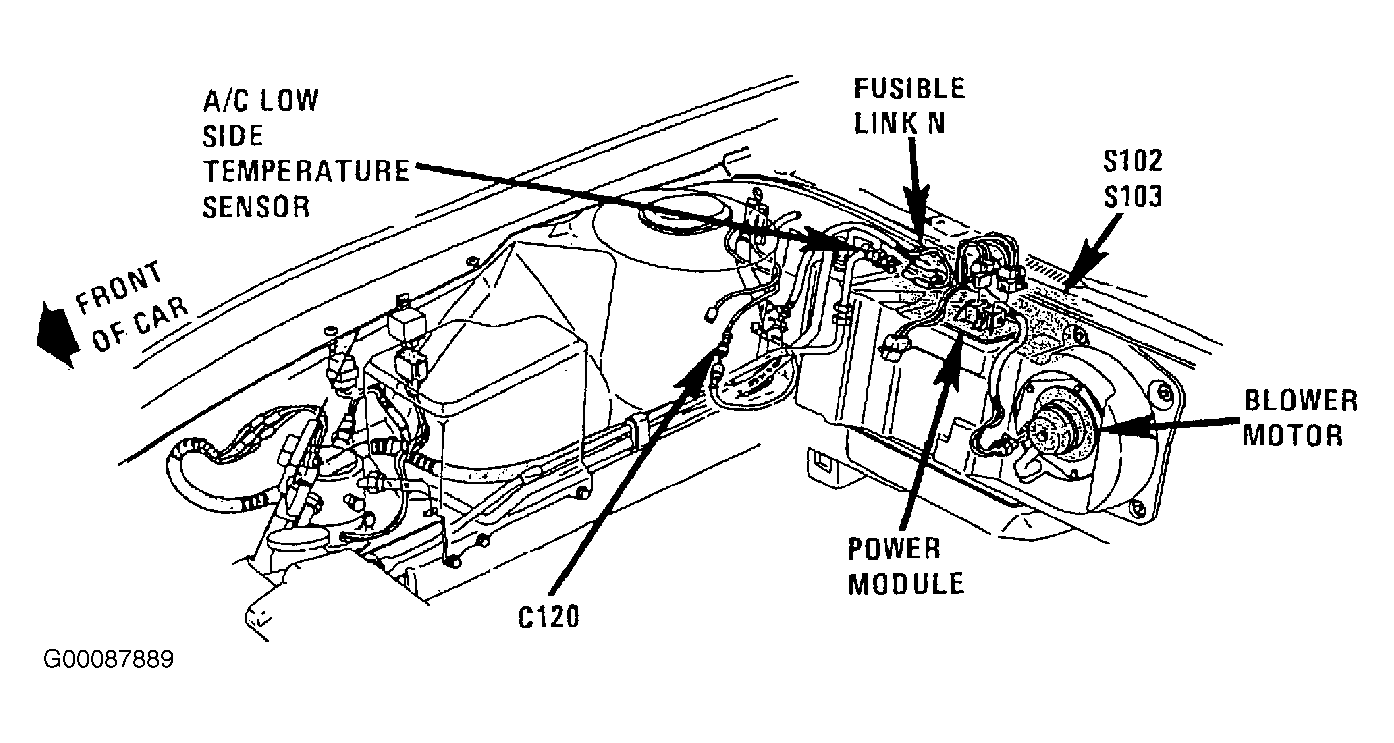

| Fusible Link N | Right Rear Of Engine Compartment. See Figure . |
| In-Line Brake Fuse | Behind Left Side Of Instrument Panel. See Figure . |

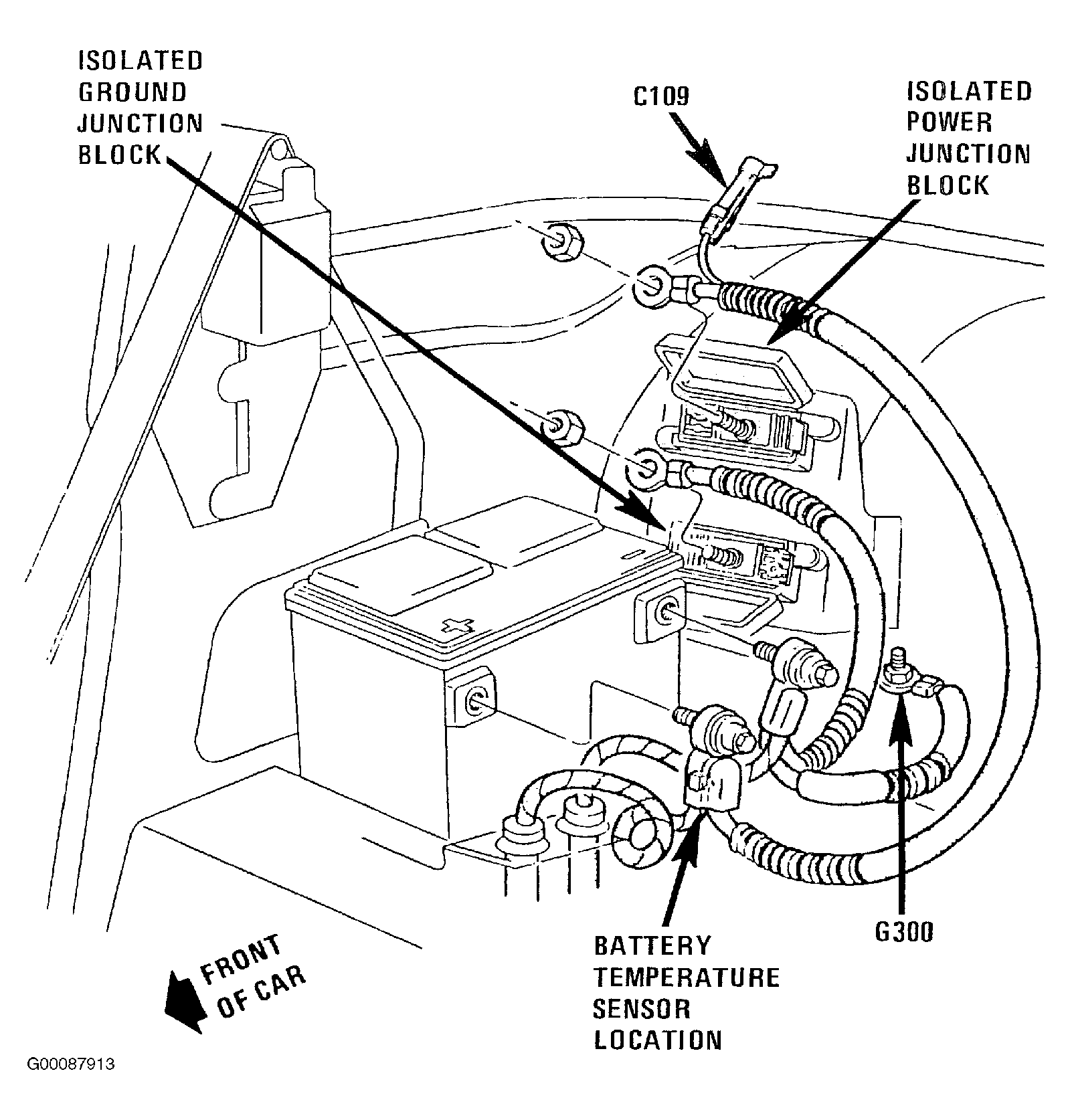

| Isolated Ground Junction Block | Behind Right Seat. See Figure . |
| Power Junction Block | Right Front Corner Of Engine Compartment. See Figure . |
| Rear Fuse Panel | Right Rear Of Trunk. See Figure . |
| Theft Deterrent Controller In-Line Fuse | Behind Right Side Of Instrument Panel. See Figure . |

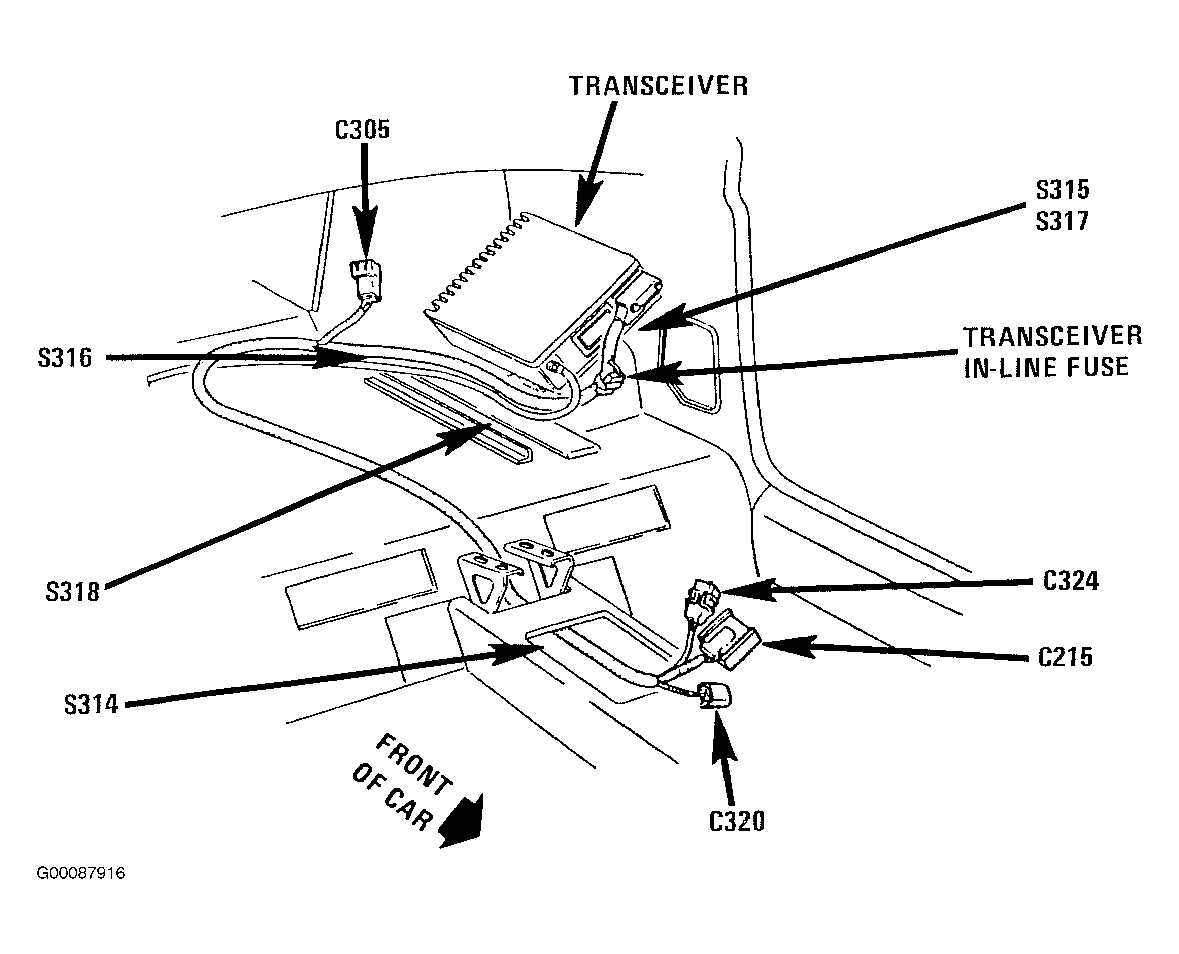

| Transceiver In-Line Fuse | Left Rear Of Passenger Compartment. See Figure . |
