Engine Control Module (ECM): Removal

  1. Disconnect negative battery cable.
  2. Remove right hand hush panel.
  3. Remove connectors to ECM.
  4. Remove two screws securing ECM. See Fig 1 .
  5. Remove ECM.

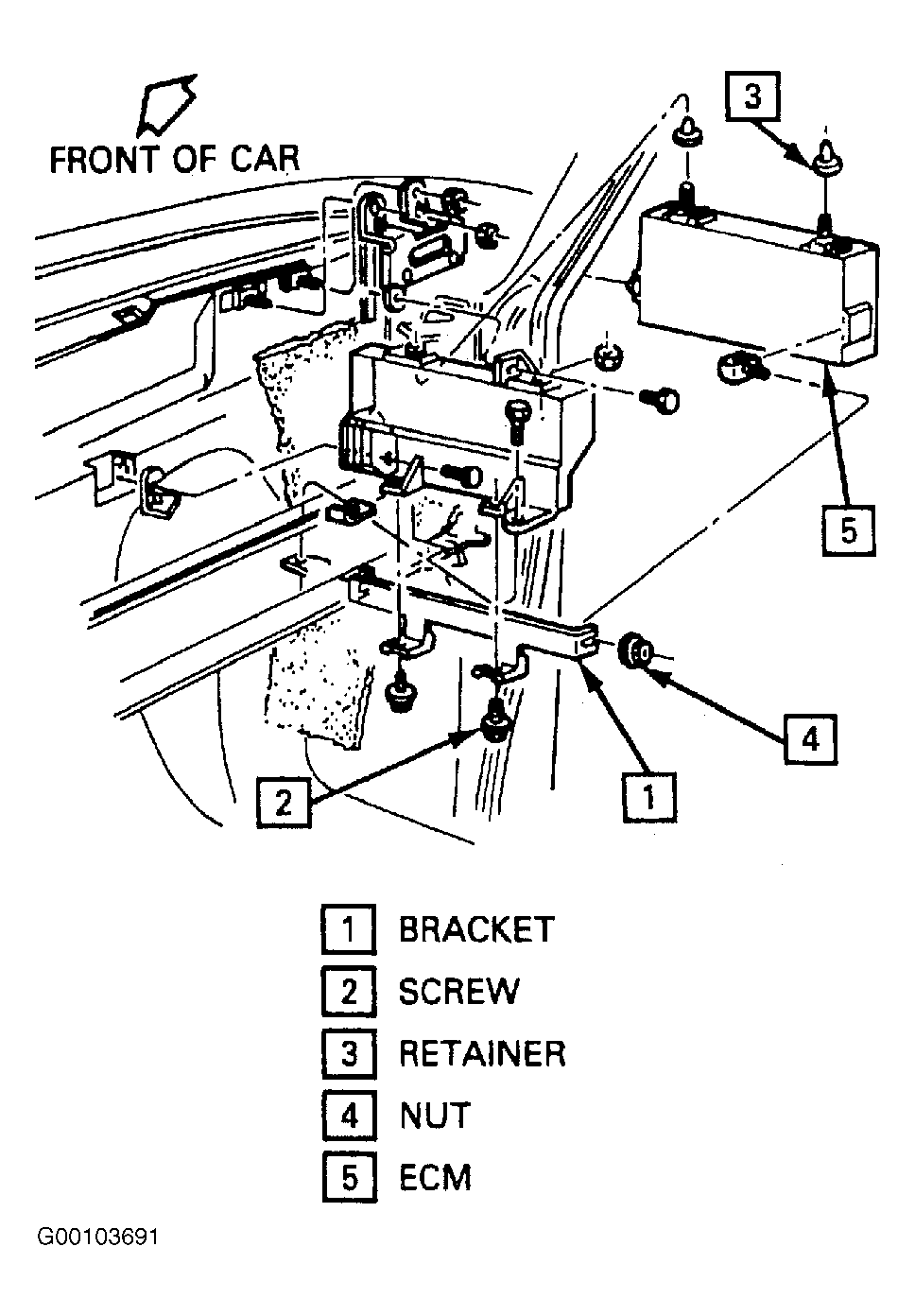

Fig 1: Removing ECM
G00103691Courtesy of GENERAL MOTORS CORP.
