Tests For Improper Displays (BI51 Displays LO With Engine Running; Generator Output)

This condition will set code B409. See GENERATORS & REGULATORS article in ELECTRICAL.

NOTE: For circuit identification, see Fig 1.

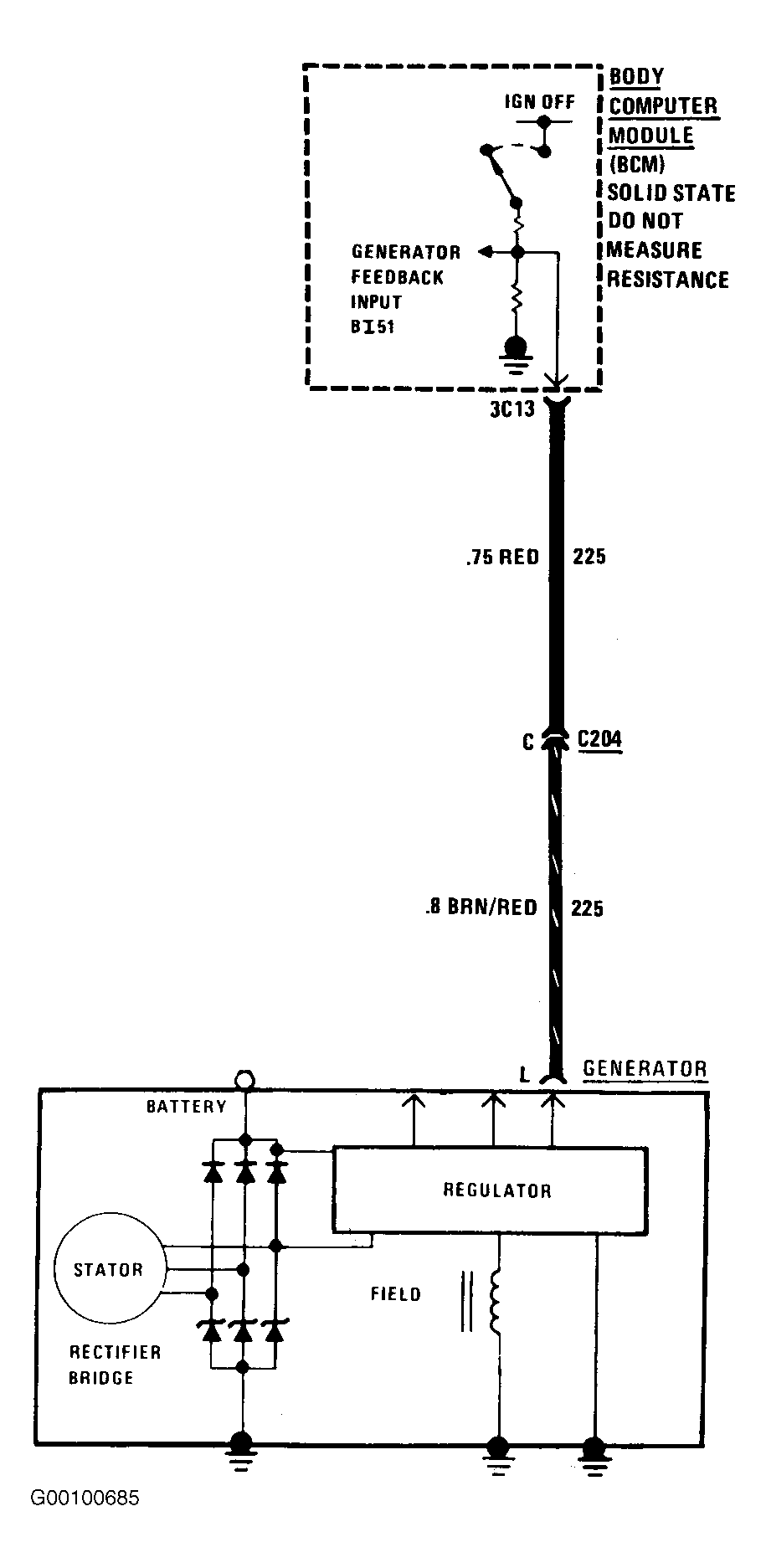

Fig 1: Identifying BI51: Generator Feedback Circuit

Courtesy of GENERAL MOTORS CORP.
