Wiring Diagrams

NOTE: For exterior and/or interior lights, see SYSTEM WIRING DIAGRAMS article in ELECTRICAL.

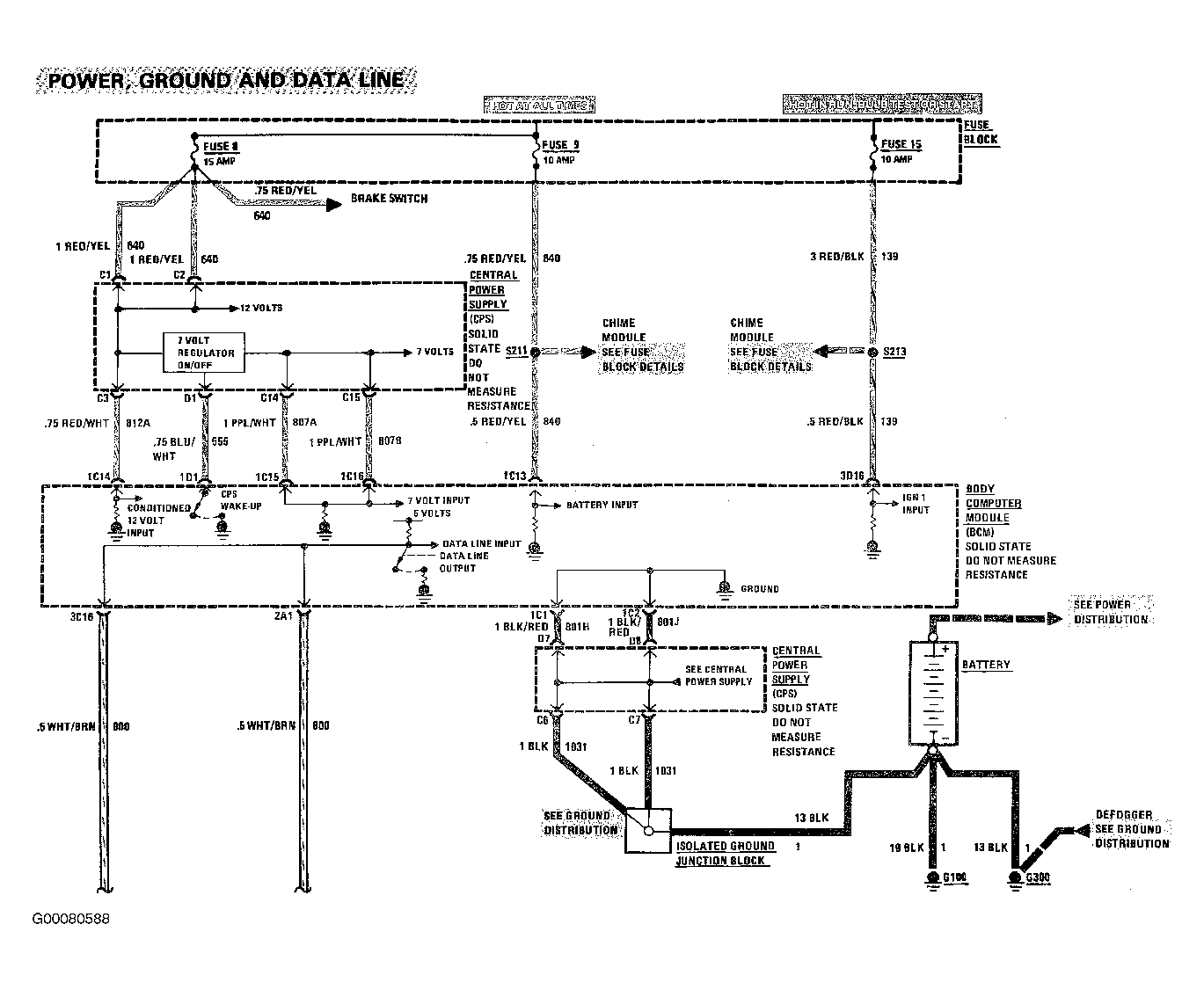

Fig 1: Body Computer Module Wiring Diagram (1 Of 5)

Courtesy of GENERAL MOTORS CORP.

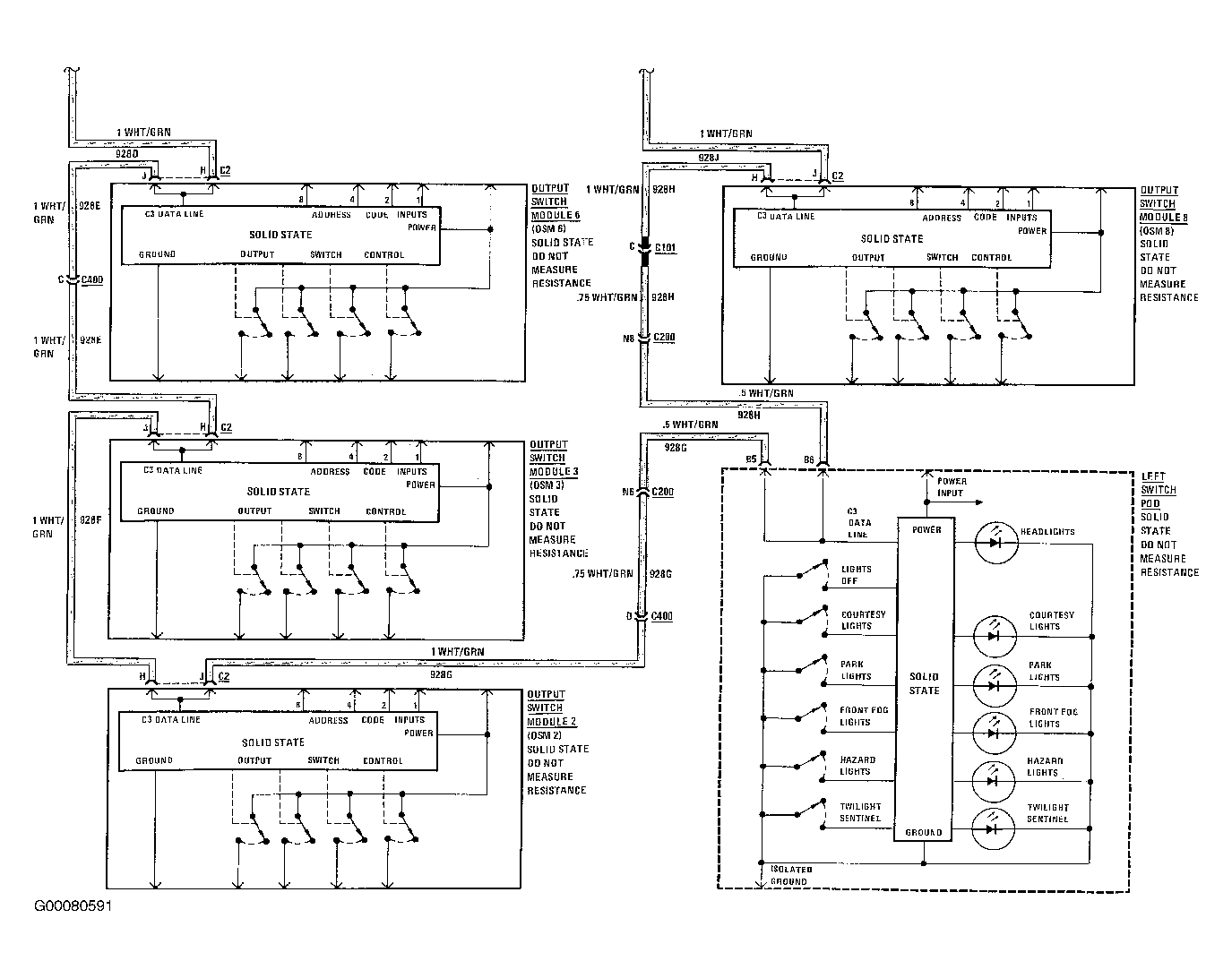

Fig 2: Body Computer Module Wiring Diagram (2 Of 5)

Courtesy of GENERAL MOTORS CORP.

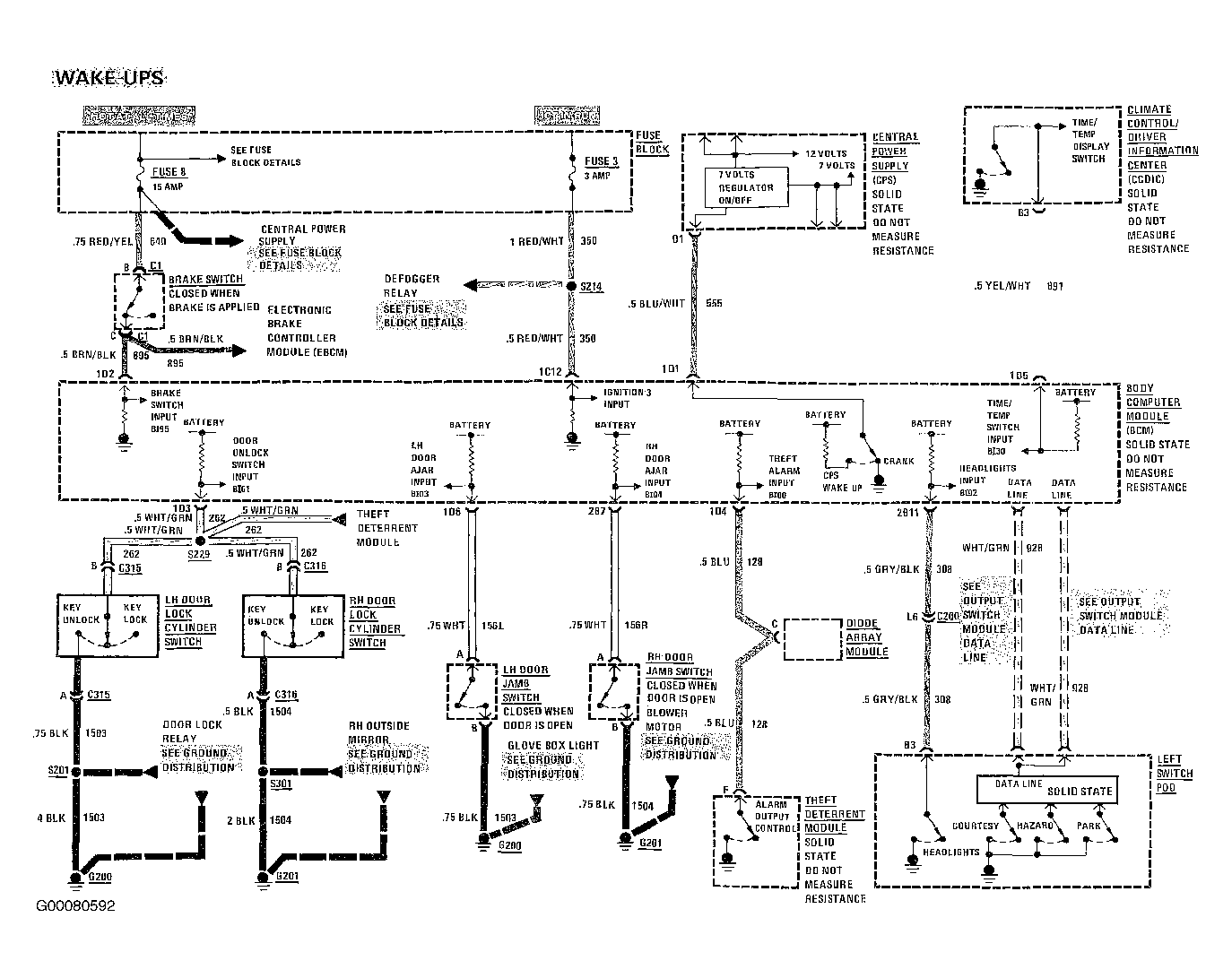

Fig 3: Body Computer Module Wiring Diagram (3 Of 5)

Courtesy of GENERAL MOTORS CORP.

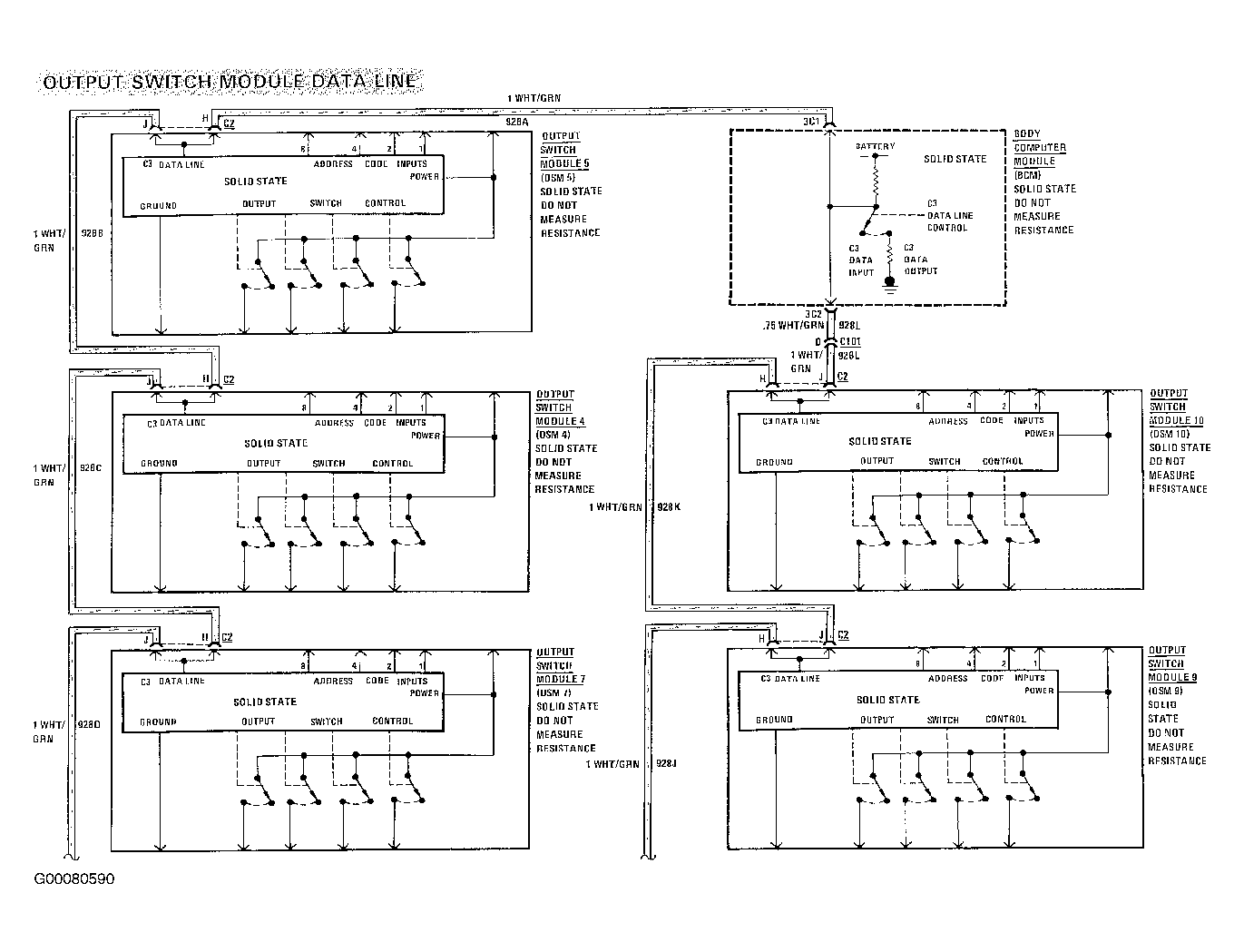

Fig 4: Body Computer Module Wiring Diagram (4 Of 5)

Courtesy of GENERAL MOTORS CORP.

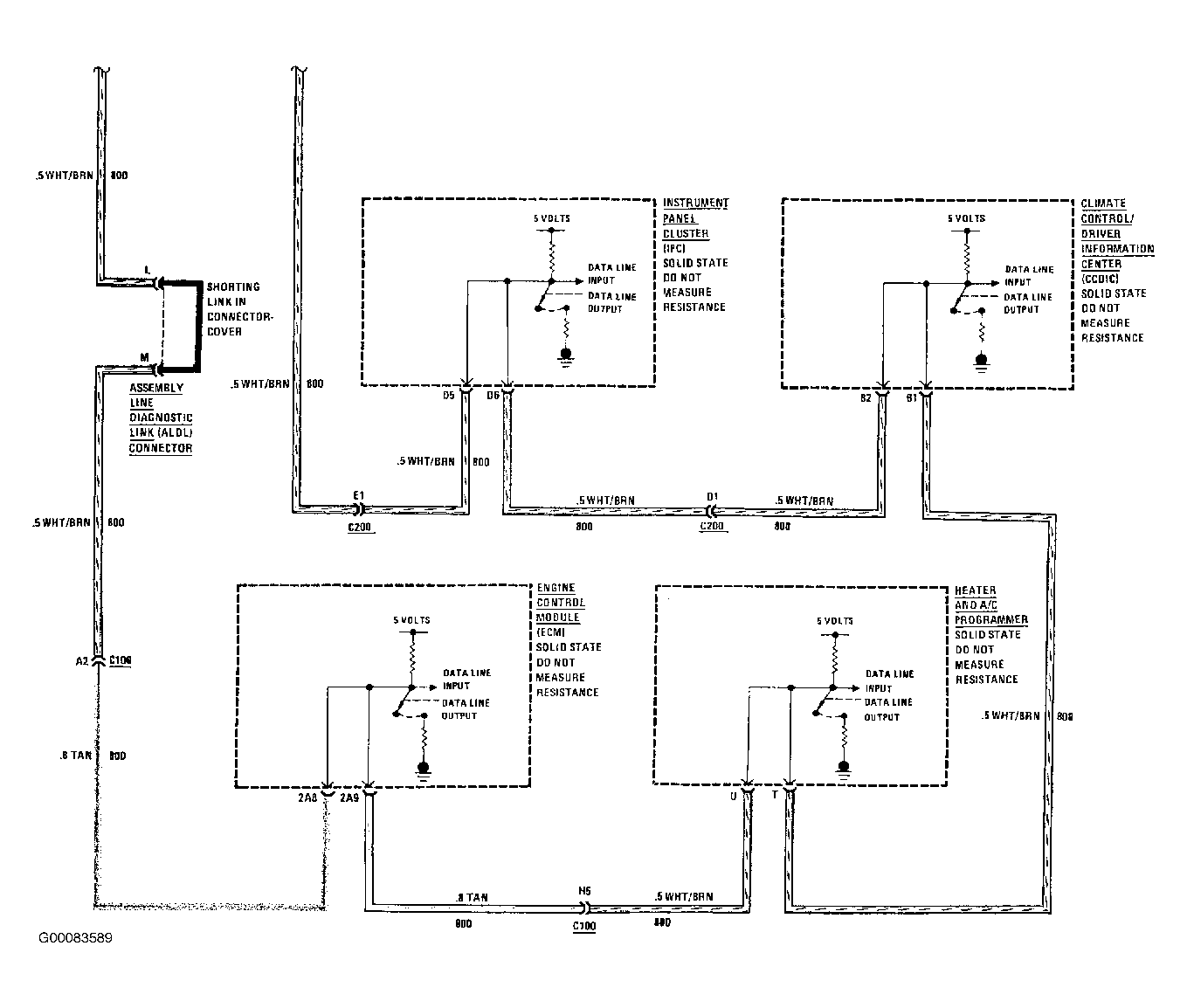

Fig 5: Body Computer Module Wiring Diagram (5 Of 5)

Courtesy of GENERAL MOTORS CORP.

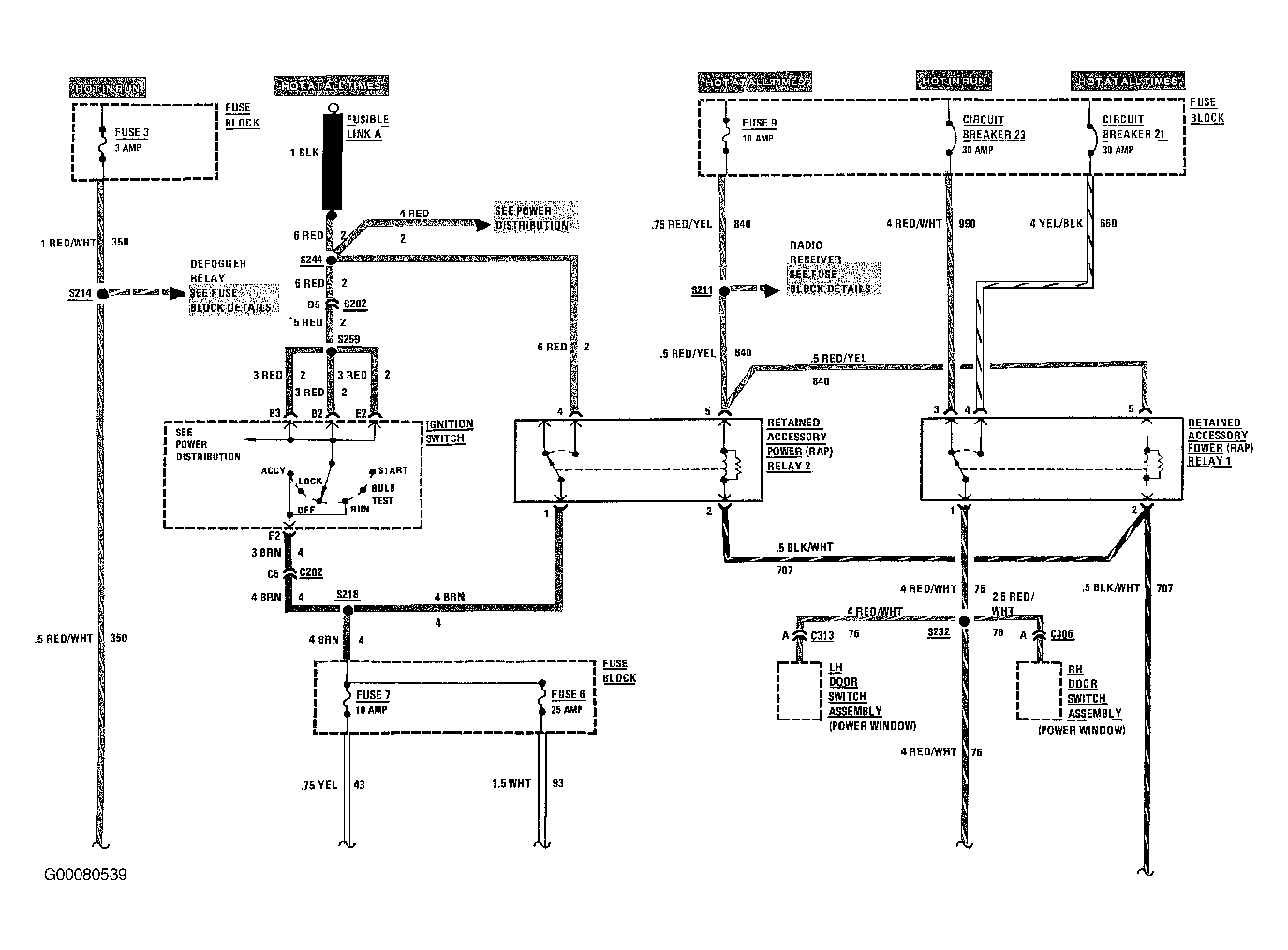

Fig 6: Retained Accessory Power Wiring Diagram (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

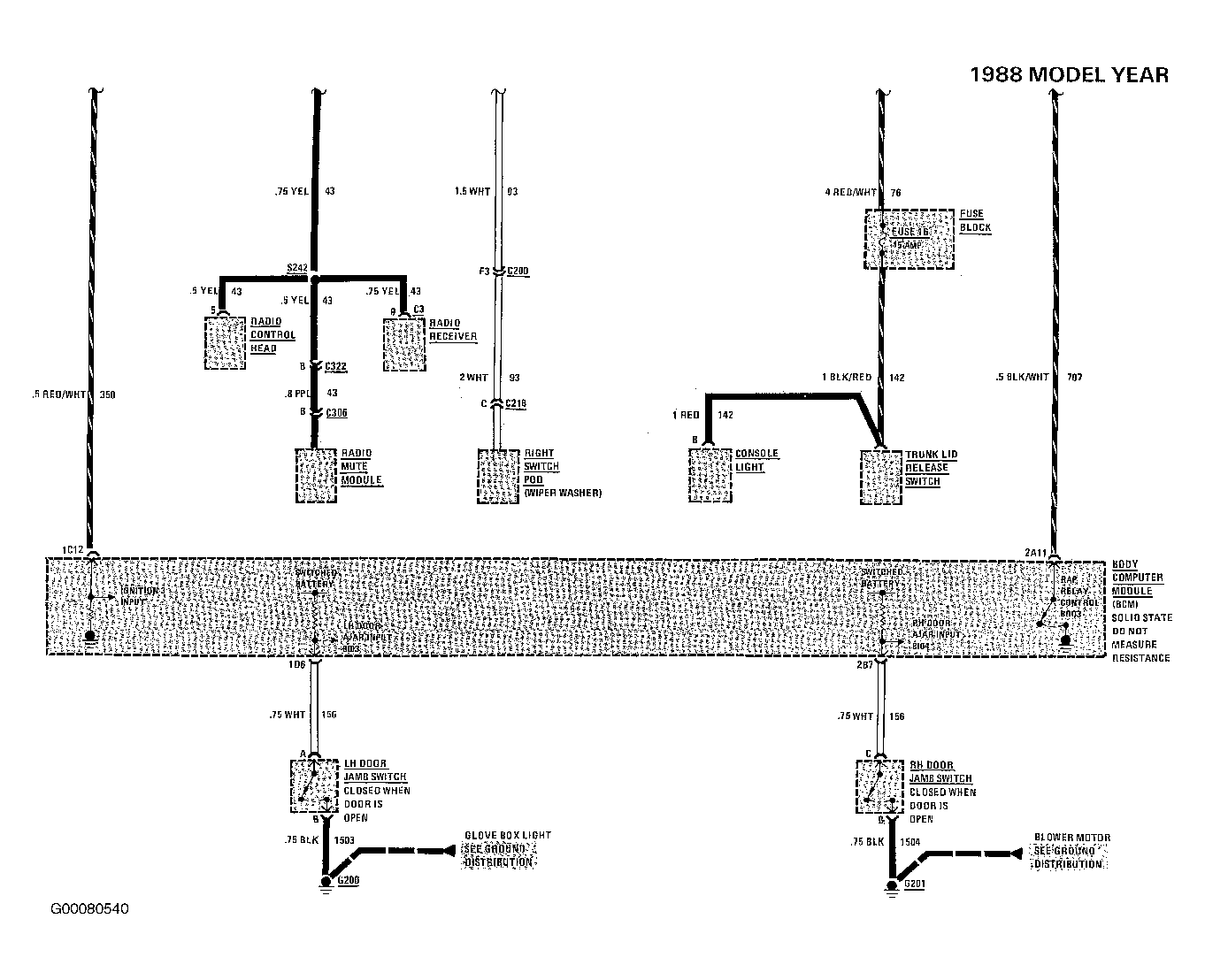

Fig 7: Retained Accessory Power Wiring Diagram (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
