Seat Control Module: Removal

  1. Remove seat switch assembly. See SEAT SWITCH ASSEMBLY  . Place seat on side with clean surface beneath.
  2. Remove two Phillips screws and washers.
  3. Disconnect electrical connectors. Mark connectors to ensure proper installation.

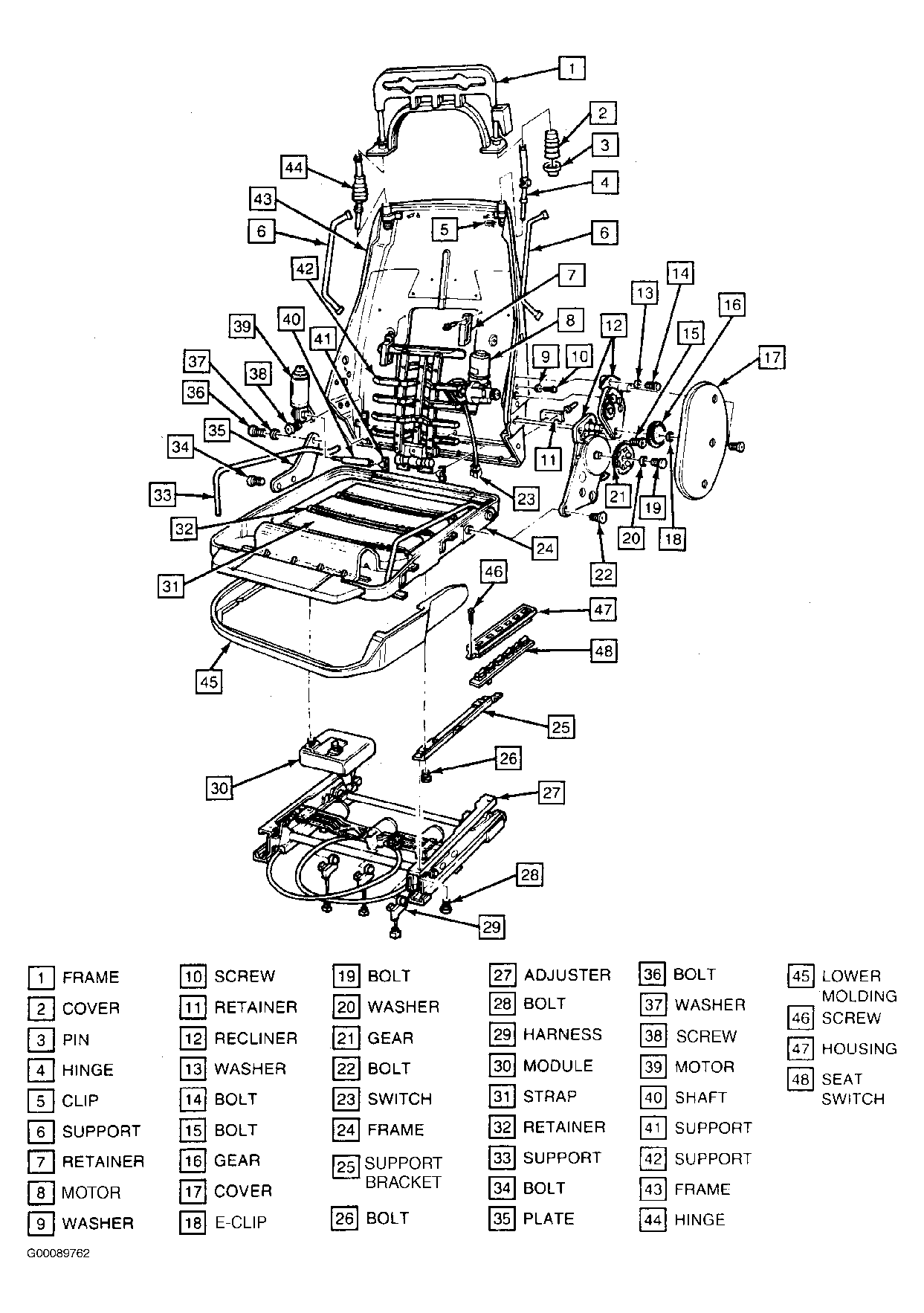

  4. Remove control module (30). See Figure .
