ECM Connector Identification

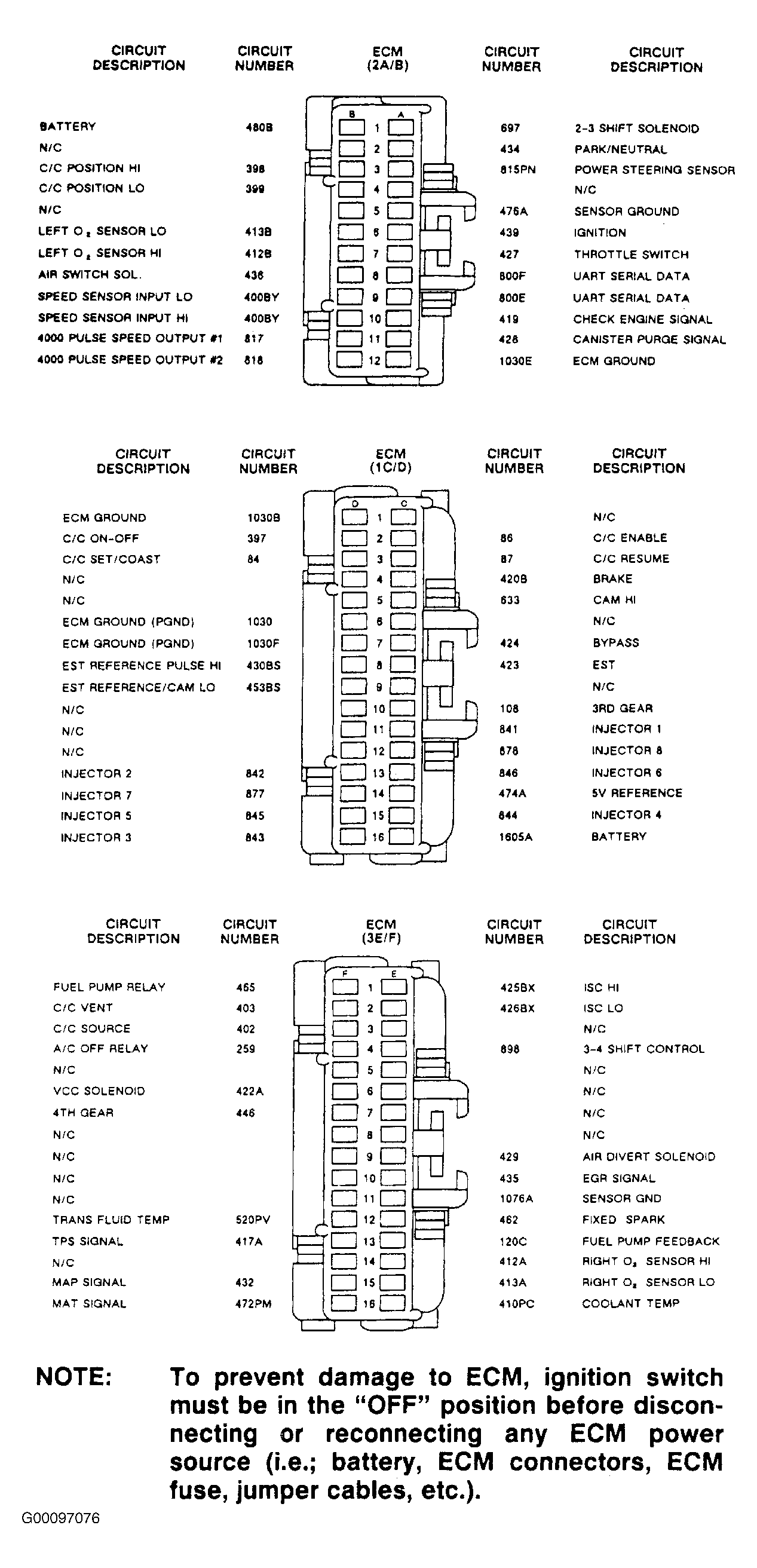

Fig 1: Identifying ECM Terminal & Circuit Numbers
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
