Note On INTERMITTENTS

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 1988 Cadillac Fleetwood, 1988 Cadillac DeVille, 1987 Cadillac Fleetwood, 1987 Cadillac DeVille, and 1986 Cadillac Fleetwood. However, it is still accessible from the selected car via links, so may be relevant.

The diagnostic procedures in this section may or may not be helpful in determining cause of intermittent problems in anti-lock brake system electrical components. Fault must be present to locate problem effectively using TEST "A" PIN-OUT CHECKS and trouble charts.

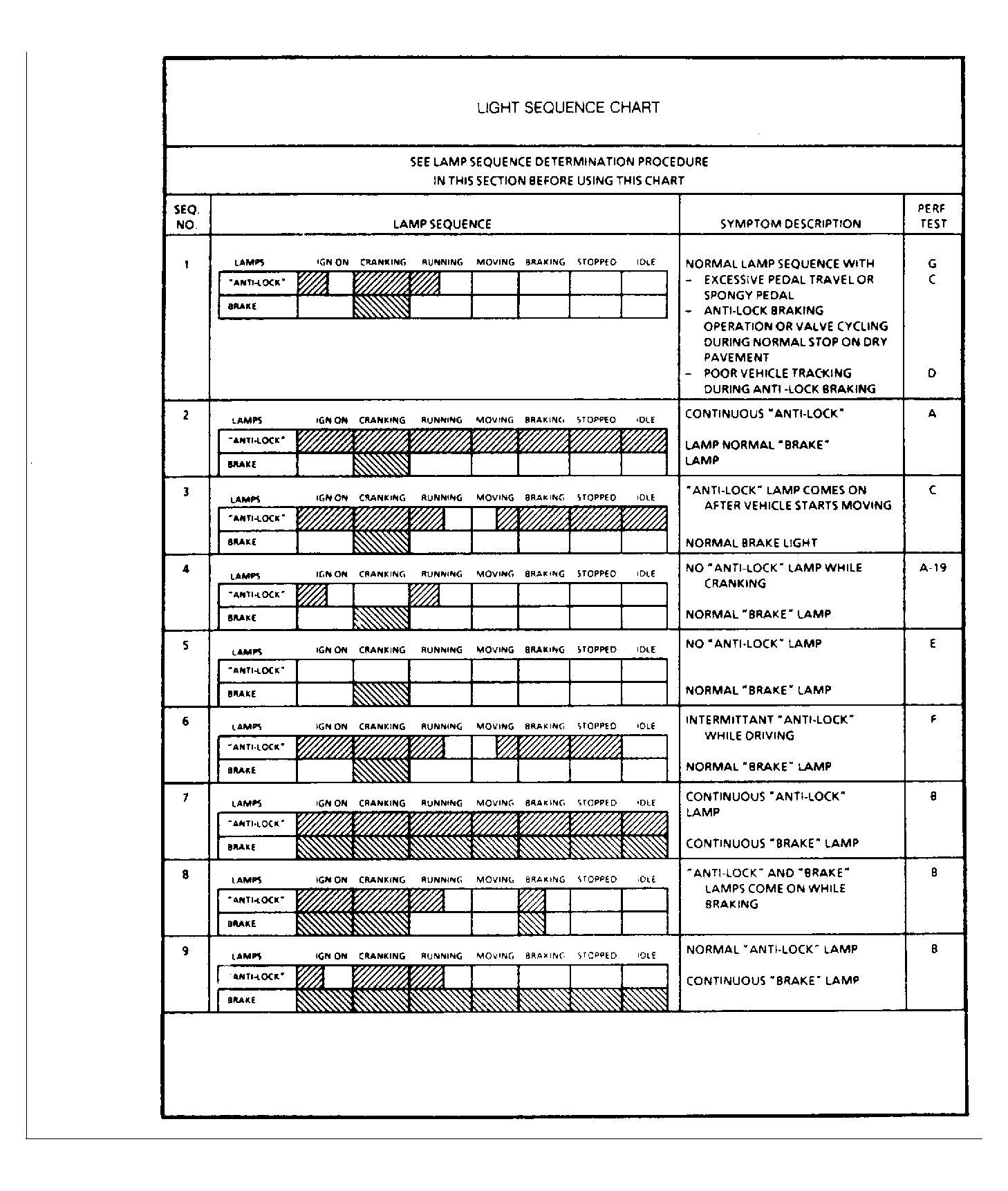

A light sequence description from vehicle owner can be helpful in locating a likely component or circuit in case of an intermittent failure. Use LIGHT SEQUENCE CHART if a good description of light behavior can be obtained. See Figure .

On all models, most intermittent problems are caused by faulty electrical connections or wiring. When an intermittent failure is encountered, check suspect circuits for:

Poor mating or connector halves or terminals not fully seated in connector body (backed out).
Improperly formed or damaged terminals. All connector terminals in a problem circuit should be carefully reformed to increase contact tension.
Poor terminal-to-wire connection. Requires removing terminal and wire from connector body to inspect.

If visual check does not find cause of problem, operate vehicle with EBCM connected in an attempt to duplicate condition.

Circuits which could possibly cause intermittent operation of "ANTI-LOCK" light include:

Wheel speed sensor circuits - low or intermittent output.
Ignition enable circuit - interruption of 12 volt input.
EBCM switch loop circuit (low fluid/low pressure sensors) - intermittent open.
Main relay - interruption in coil or switched battery power.
