Control Assembly: Locations

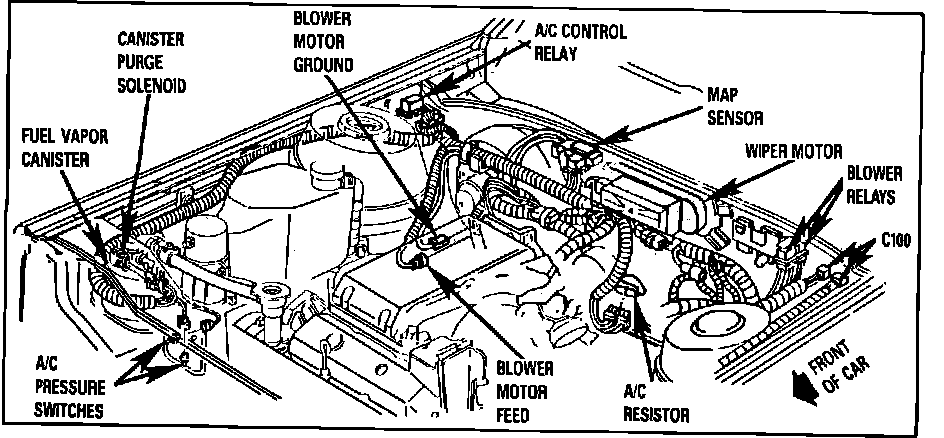

A/C & Dash Panel Wiring.:
On RH Front Fender, Behind Shock Tower
Applicable to: V6-173/2.8L (VIN W)
