Computer Controlled Coil Ignition Module

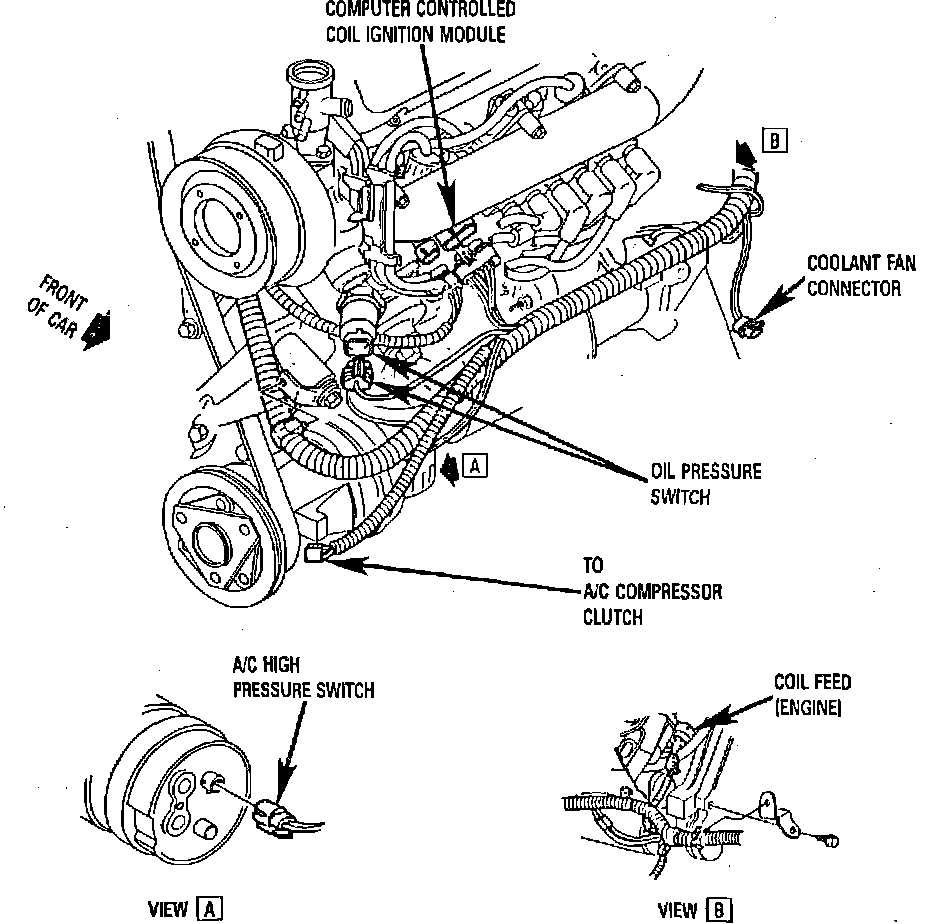

Engine Wiring, LH Side.:




Below LH Exhaust Manifold, Above Starter

Applicable to: V6-173/2.8L (VIN W) Engine
