Engine Control Module

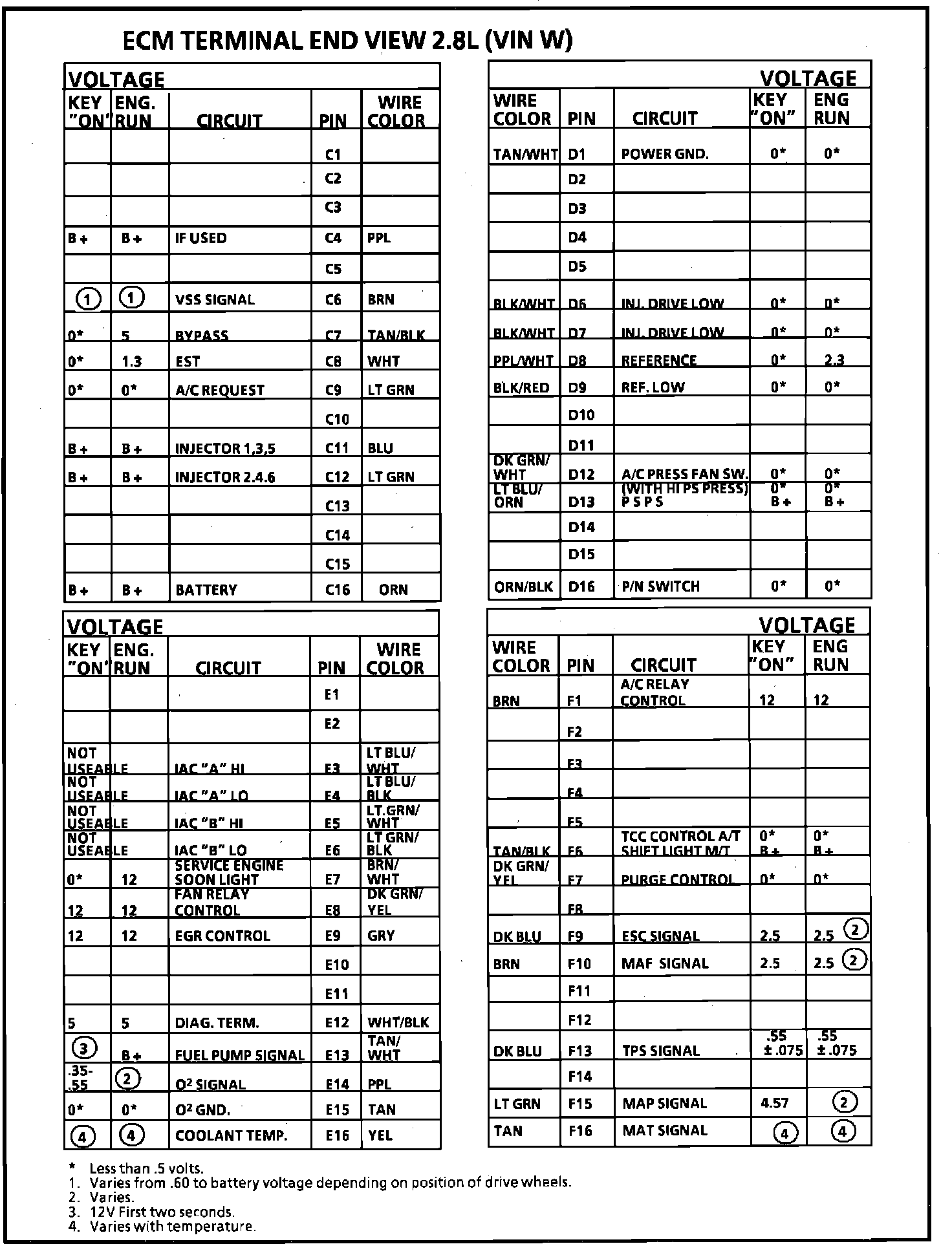

ECM Terminal ID & Voltage Specifications (Part 1 of 2):
ECM Terminal ID & Voltage Specifications (Part 2 of 2):
