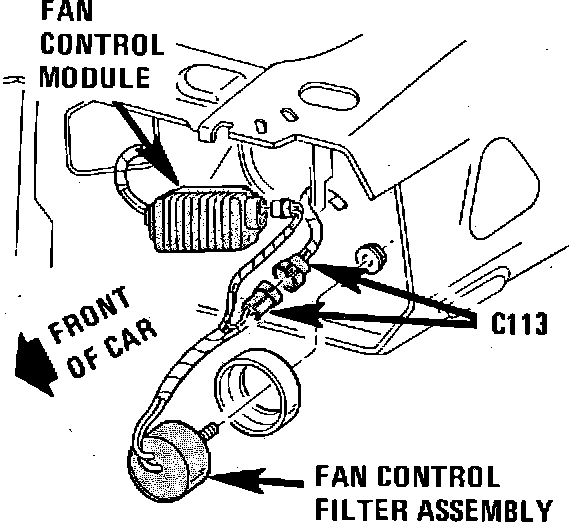

Fan Control Module
Behind LH Headlamps:
LH Front Of Engine Compartment, Behind Headlamp
Applicable to: 1986-87 DeVille & Fleetwood
