Oil Pressure Sensor: Service and Repair

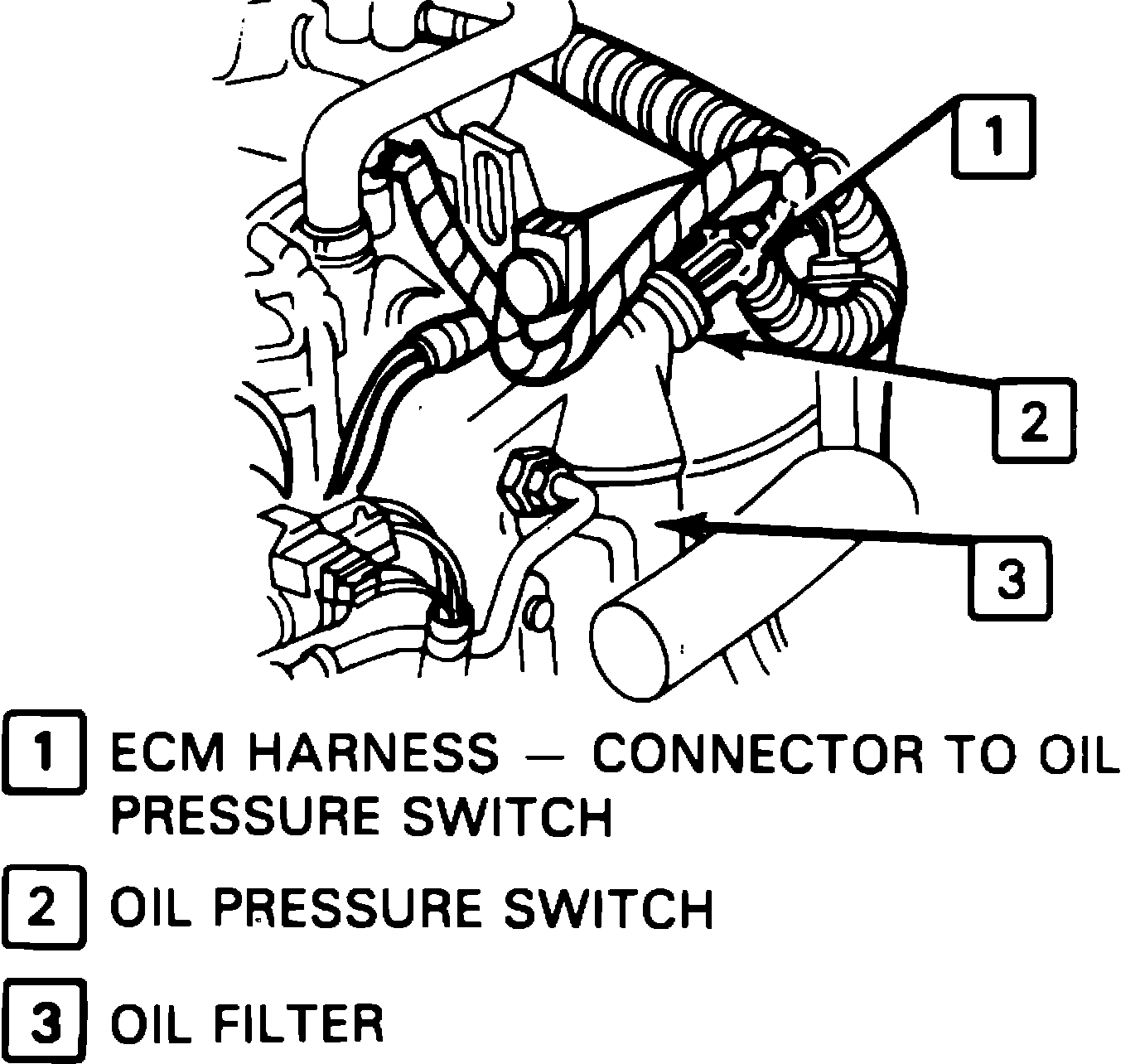

Fig. 106 Oil pressure switch replacement:

1. Remove oil pressure switch lock collar.
2. Disconnect switch electrical connector and remove switch from rear of engine, Fig. 106.
3. Reverse procedure to install.
