Input E.7.5 - Cruise Control on/Off Circuit

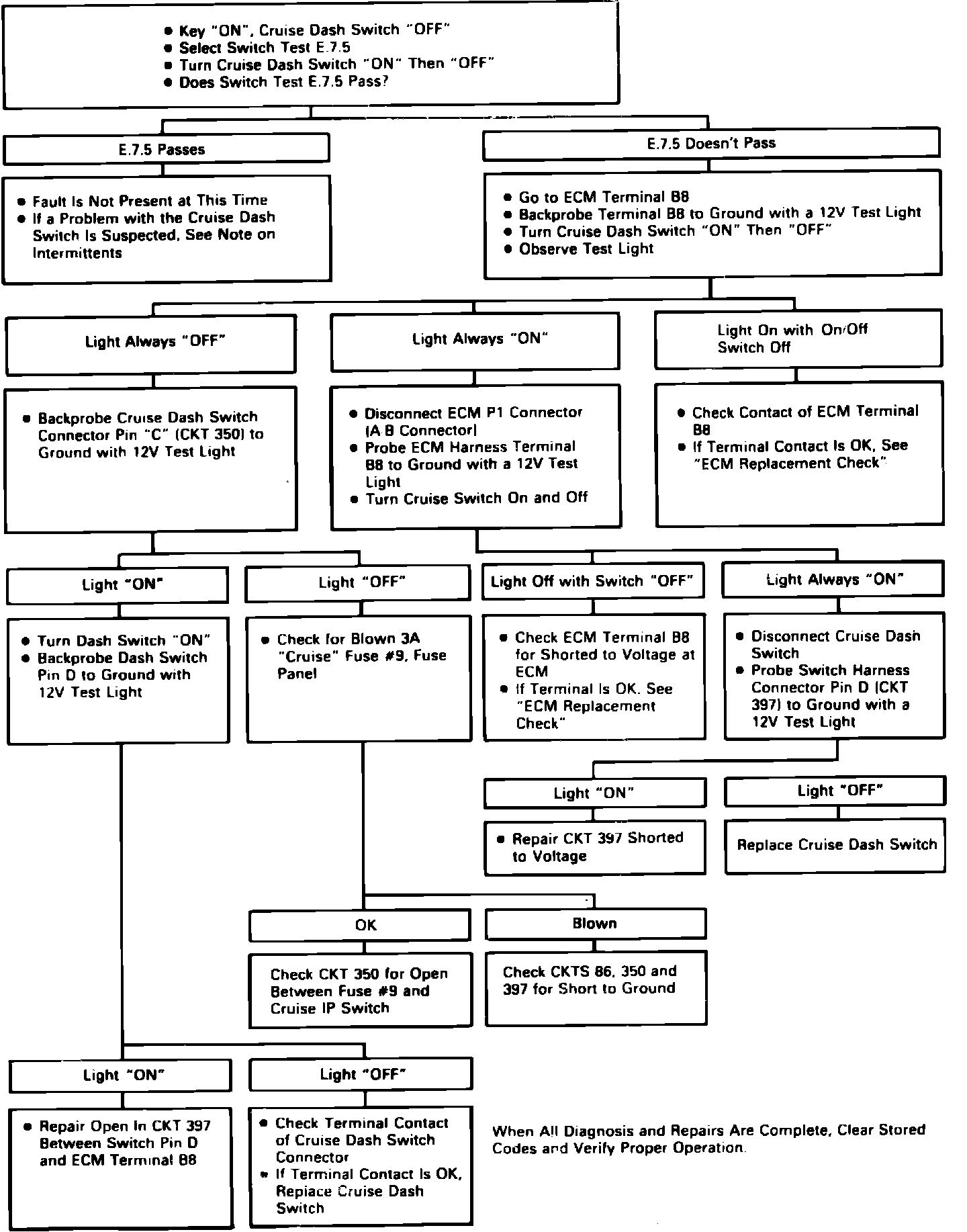

Fig. 80 ECM Input E.7.5 Diagnosis (Cruise Enable ON/OFF Input):
