Input E.7.8 - Power Steering Pressure Switch

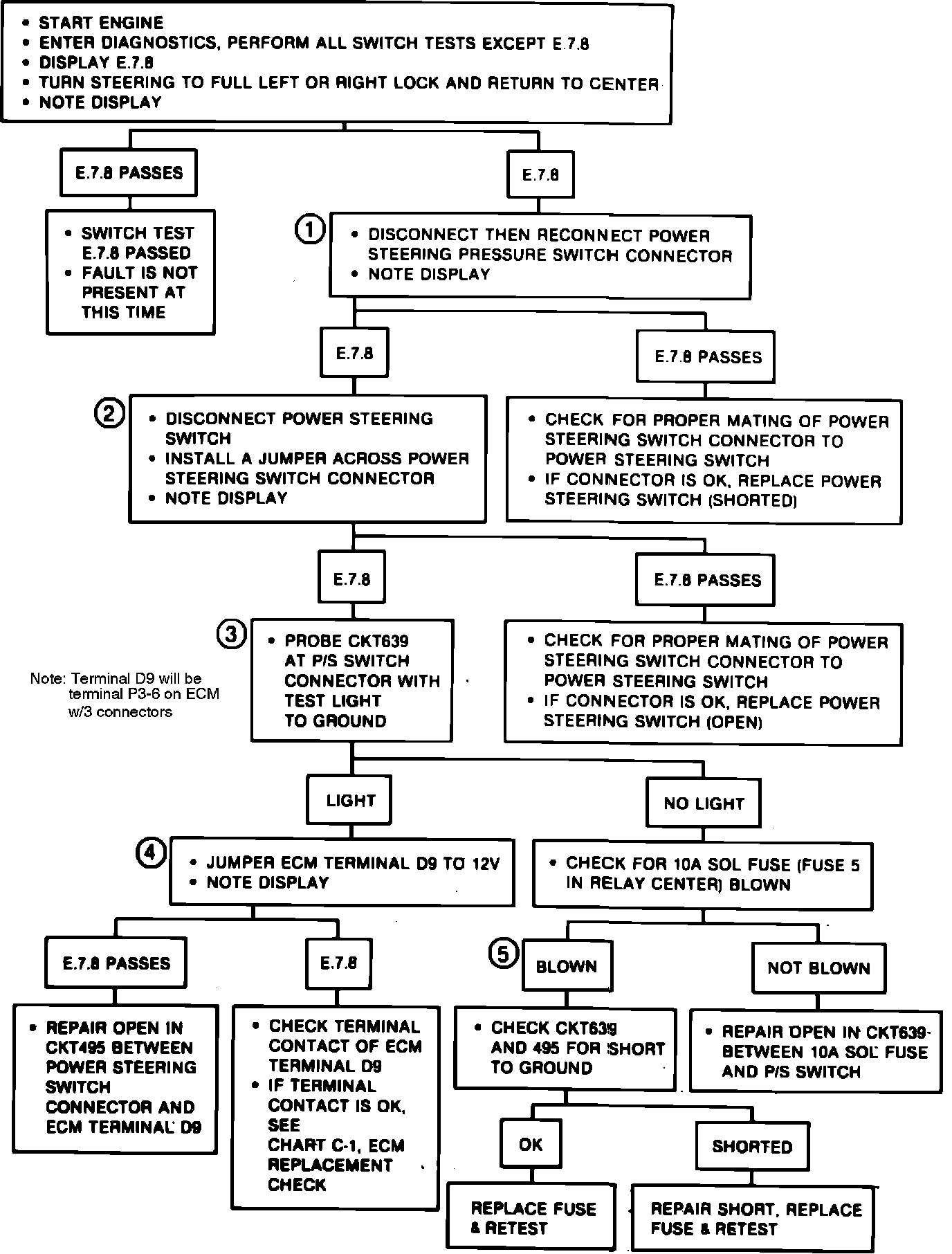

Fig. 83 ECM Input E.7.8 Diagnosis (Power Steering Pressure Switch):
