Transmission Position Sensor/Switch: Locations

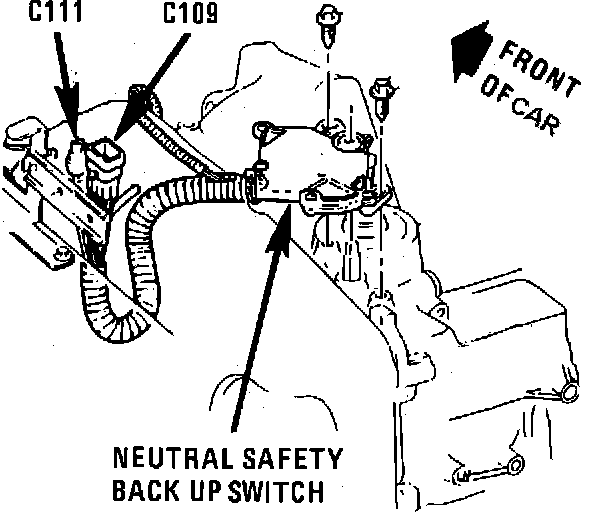

Neutral Safety Back-Up Switch.:






The Neutral Safety Back Up Switch is located on the LH rear of engine, top of transaxle.
