Radiator Cooling Fan Control Module: Service and Repair

COOLING FAN CONTROL MODULE

Fan Control Module Removal:

REMOVE OR DISCONNECT
1. Negative battery cable.
2. Left cross car brace.
3. Windshield washer solvent container.
4. Left cornering lamp assembly.
5. Cooling fan electrical connectors.
6. Engine harness connectors.
7. Screws attaching control module to body.

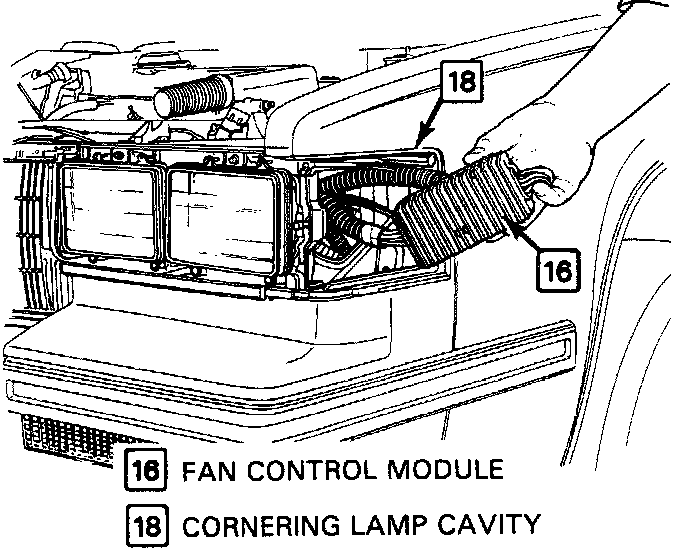

8. Control module assembly through cornering lamp cavity.

INSTALL OR CONNECT
1. Control module assembly through cornering lamp cavity and into position.
2. Screws attaching control module to body.
3. Engine harness connectors.
4. Raise car.
5. Cooling fan electrical connectors.
6. Lower Car.
7. Left cornering lamp assembly.
8. Windshield washer solvent container.
