Entering Diagnostic Mode

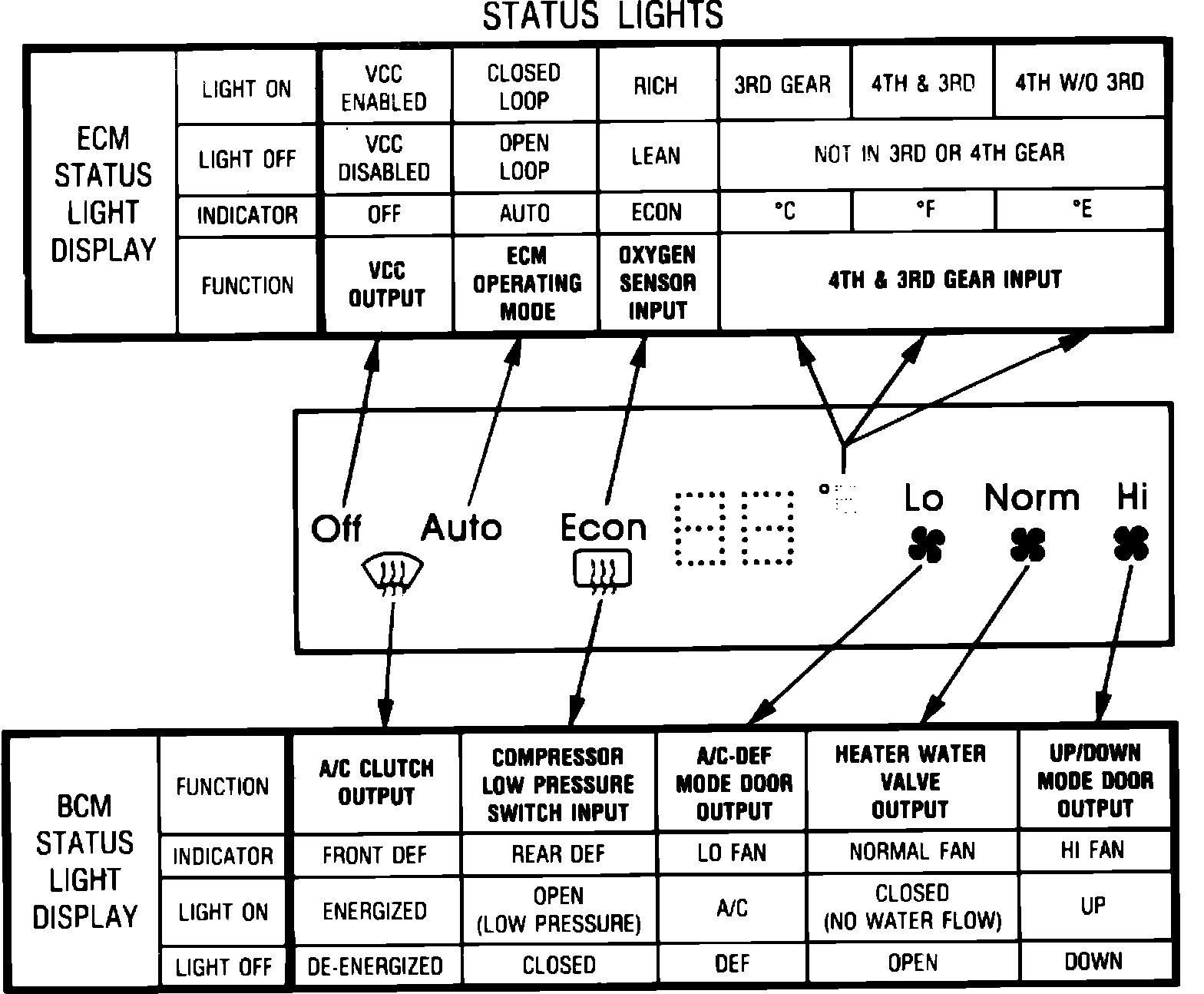

Fig. 2 Climate Control Panel (CCP) display:

To enter diagnostic mode, turn ignition On, then depress Off and Warmer buttons on the Climate Control Panel (CCP), Fig. 2. Hold buttons until all display panel segments illuminate (segment check), indicating beginning of diagnostic readout. The two display panels must be illuminated to ensure all segments are operating. Do not attempt diagnosis unless all segments appear, since an improper diagnosis could result. If any segments are inoperative, the display panel must be replaced.
