Diode: Locations

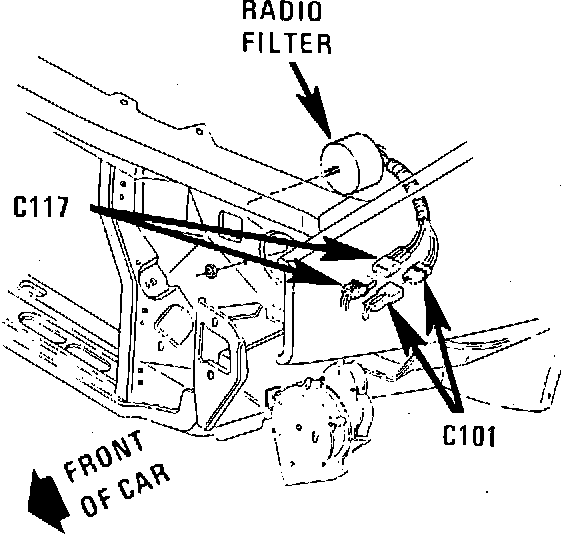

LH Front Of Vehicle.:
LH Front Of Engine Compartment, Behind Headlamps
Applicable to: Eldorado & Seville
