EXPERTEC TSB (T90-101)

Publication date: 1990-08-09
Reference number: T90-101

EXPERTEC TSB

TECHNICAL SERVICE BULLETIN

Reference Number(s): T90-101, Date of Issue: 08/09/90

08/09/1990

Cadillac T90-101

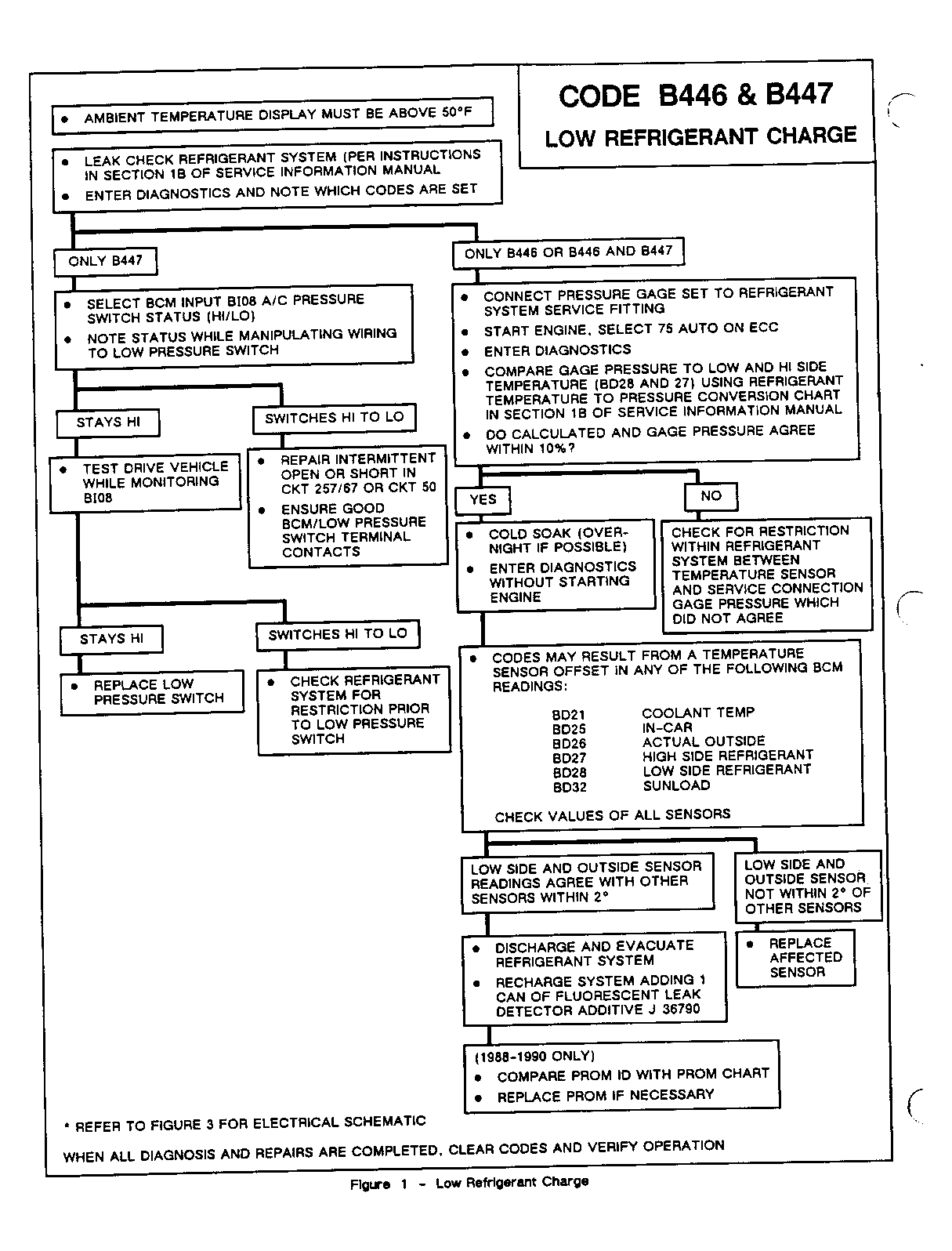

Fig 1: Graphic

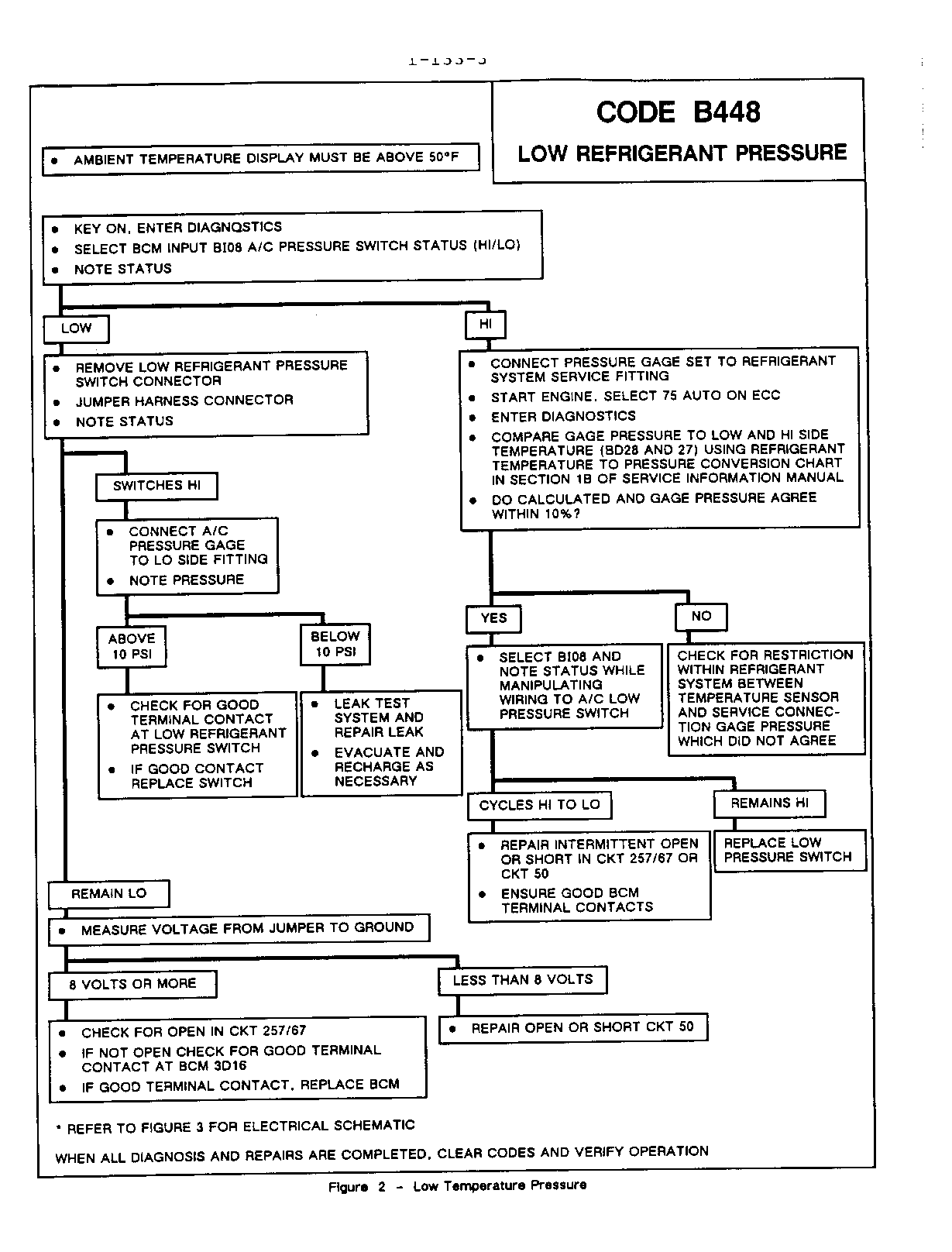

Fig 2: Graphic

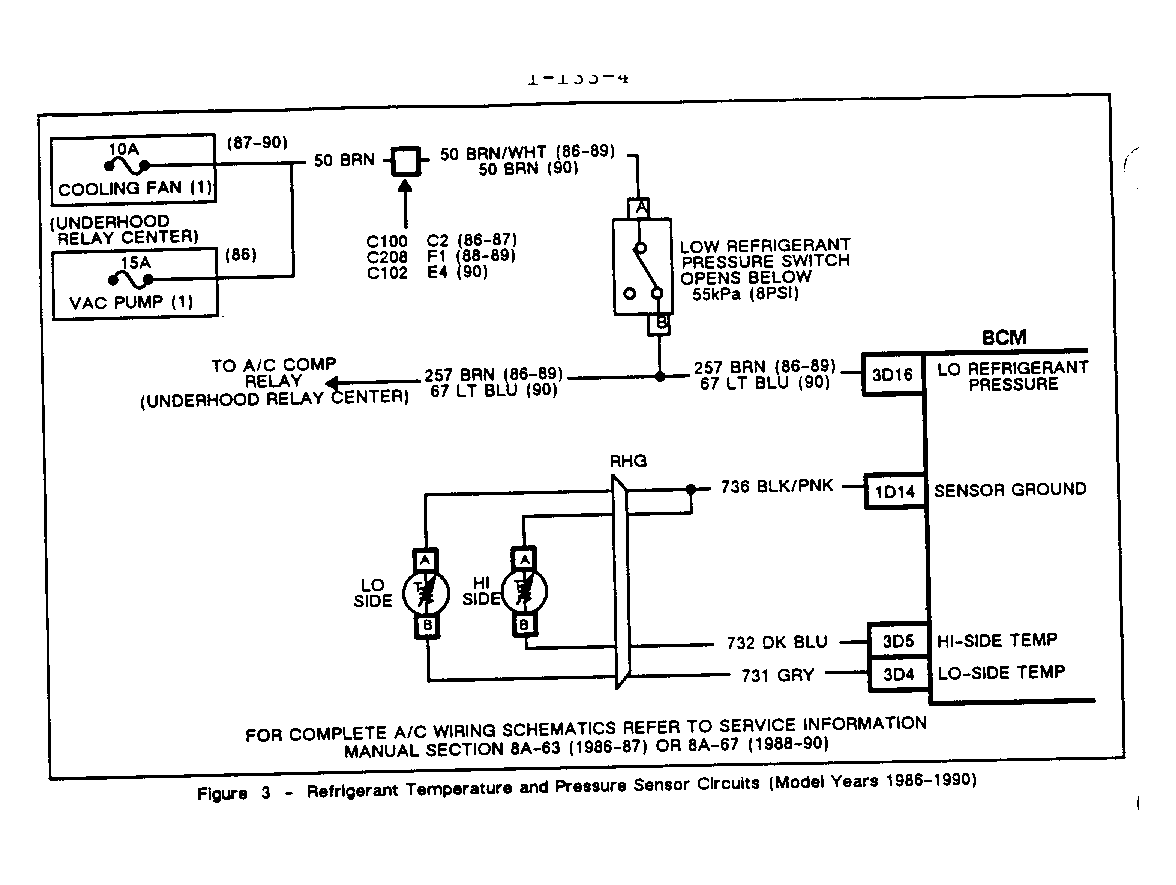

Fig 3: Graphic

Fig 4: Service Information (1 Of 2)

Fig 5: Service Information (2 Of 2)
