Notes On Intermittents

Manipulate circuit No. 472 wiring, MAT sensor and ECM connector, while observing ECM parameter ED05. If failure is induced, manifold air temperature will jump from its normal value to shorted reading of 142-151°C. If wiring and connectors are okay, substitute a known good sensor and retest.

Review snapshot data parameters stored with this code to verify failure. If failure is verified, check and repair intermittent wiring connections or sensor.

Fig 1: Schematic, Code EO27, Shorted MAT Sensor Circuit

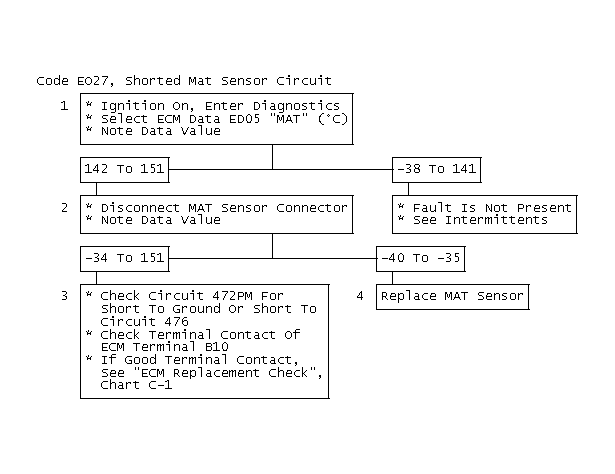

Fig 2: Flow Chart, Code EO27, Shorted MAT Sensor Circuit

Fig 3: Flow Chart, Code EO27, Shorted MAT Sensor Circuit
