Notes On Intermittents

Manipulate circuits No. 472 and 476 wiring, MAT connector, and ECM connector while observing ECM parameter ED05. If failure is induced, MAT will jump from its normal value to open signal circuit reading of -35°C to -40°C. If wiring and connectors are okay, substitute a known good sensor and retest.

Review snapshot data parameters stored with this code to verify failure. If failure is verified, check and repair intermittent wiring connections or sensor.

Fig 1: Schematic, Code EO38, Open MAT Sensor Circuit

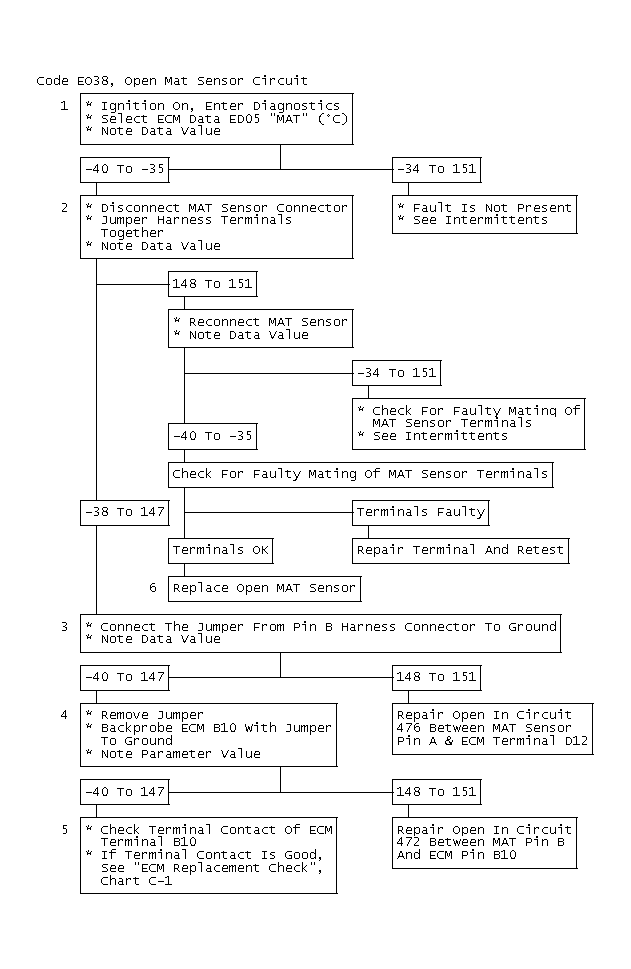

Fig 2: Flow Chart, Code EO38, Open MAT Sensor Circuit

Fig 3: Flow Chart, Code EO38, Open MAT Sensor Circuit
