System Component Locations

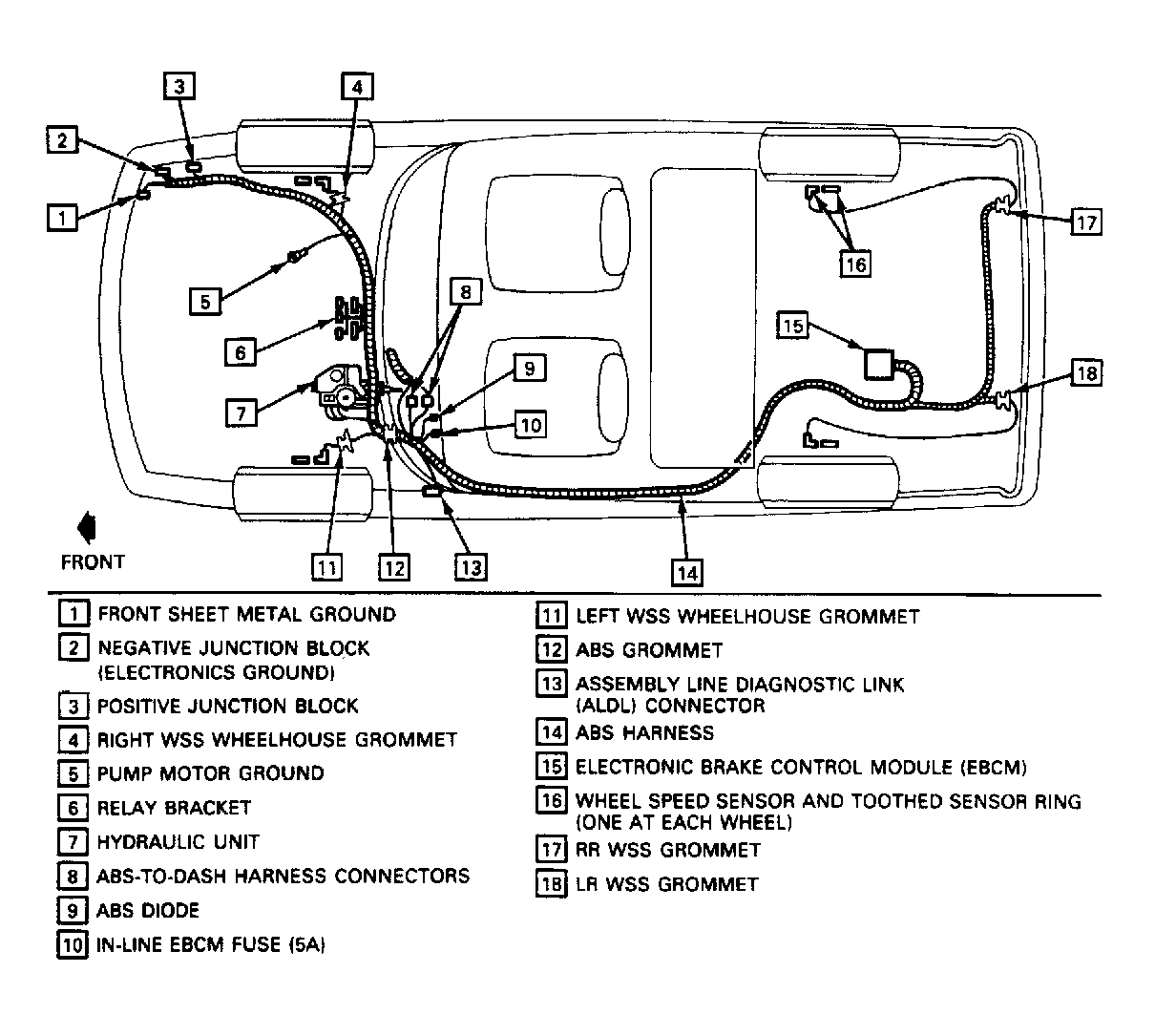

Fig 1: Anti-Lock Brake System Component Locations
G53929
Fig 2: Anti-Lock Brake System Relay Locations
G56116
